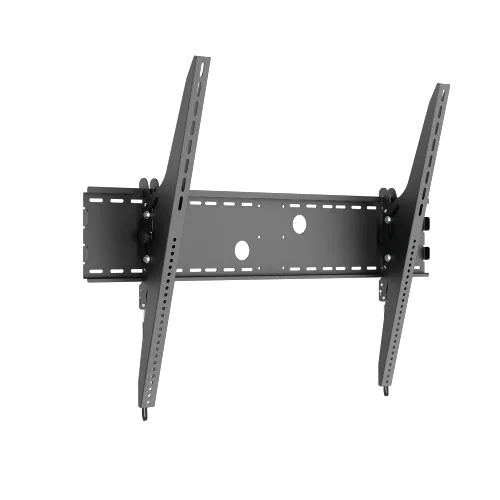

VSYS VS01XL-810T XL Tilting Wall Mount for 60"–100" Displays, 100 kg

The VSYS VS01XL-810T XL Tilting Wall Mount for 60"–100" Displays, 100 kg is what you specify when the panel is simply too big for an ordinary bracket. Designed for 60" to 100" large-format screens weighing up to 100 kg, it is fabricated from 2 mm powder-coated steel, carries UL approval and is strength-tested to four times its rated load. Two features separate it from a standard tilting mount. First, the tilt range is a generous plus or minus 15 degrees, set by hand with no tools, which is what a 100-inch screen high on an auditorium wall actually needs. Second, lateral shift brackets let you slide the mounted display left or right after it is hanging, so you can centre it perfectly on the wall even though the stud positions dictated where the plate went. Serious capacity, meet real-world adjustability.

Key Features

• Plus or Minus 15 Degree Toolless Tilt - A wider swing than a conventional tilt mount, sized for screens placed well above eye level.
• 100 kg Load Rating - UL approved and strength-tested to four times the working load, for panels you cannot afford to have move.
• Lateral Shift Brackets - Slide the display sideways after mounting to centre it on the wall, not on the studs.
• 60"–100" Screen Range - One part number covers an entire large-format rollout, simplifying specification across a project.
• 2 mm Cold-Rolled Steel - Thicker gauge than mid-size brackets, powder-coated black for a clean finish behind the panel.
• VESA 200x200 mm to 1000x800 mm - Reaches the very largest mounting patterns fitted to modern big-format displays.
• 120 mm Wall Clearance - Deep enough for the tilt mechanism and for connectors on the rear of oversized panels.
• Quick-Release Spring Locks - Pull cords let a technician release even a very large screen for rear access.
• Dual-Stud Fixing - Spreads the load across 406 mm, 450 mm and 600 mm stud centres on a structurally sound wall.
• Flat and Curved Panels - Both geometries supported within the rated size and weight envelope.

On site, the lateral shift brackets are the detail installers remember. On a 100-inch panel, being 80 mm off centre is visible from across the room, and without lateral adjustment the only fix is to drop the screen and re-drill. Here you loosen, slide and re-tighten. Pair that with the plus or minus 15 degree toolless tilt and the 100 kg UL-approved capacity and you have a bracket that handles the awkward realities of large-format work: high mounting positions, heavy panels, and walls whose studs never quite line up with the architect's drawing. Think a town-hall display above a stage, or an oversized arrivals screen angled down over a hotel lobby.

Ideal for: offices, retail, hospitality and education across Dubai, Abu Dhabi, Sharjah and the GCC.
