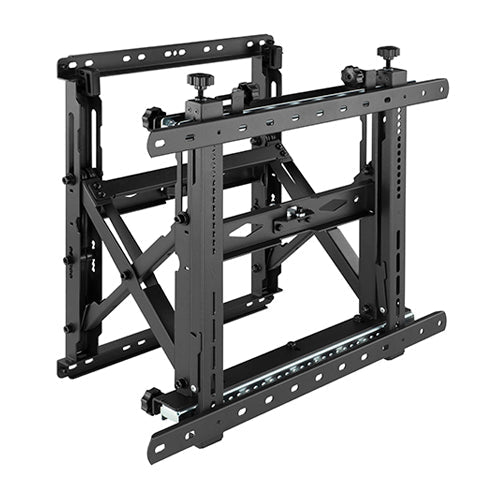

VSYS VSVW13-610T Push-Pull Video Wall Mount for Displays up to 120", 130 kg

The VSYS VSVW13-610T Push-Pull Video Wall Mount for Displays up to 120", 130 kg is designed around a hard truth about tiled display arrays: once the panels are in, the only way to reach a connector is from the front. Its push-pull pop-out mechanism means a firm press or pull releases any single panel and glides it forward on its arms, giving a technician 120 mm to 325 mm of working clearance at the back without disturbing the screens either side. Push it home and it locks flush again. Rated to 130 kg with VESA support to 1000x600 mm, it handles the largest commercial panels up to 120", in portrait or landscape, and micro-adjustment of 13.5 mm in depth and 13 mm in height is what finally gets every bezel gap in the array reading as a single continuous surface.

Key Features

• Push-Pull Pop-Out Access - Any panel comes forward on demand for rear servicing, then locks back flush.
• 130 kg Load Rating - Strength tested four times over, sized for the heaviest large-format array panels.
• Displays Up To 120" - Suits oversized single panels as well as tiled multi-screen walls.
• VESA 200x200 To 1000x600 mm - Reaches the widest commercial and video wall mounting patterns.
• Portrait Or Landscape - The same bracket supports both orientations, so one part number covers the whole layout.
• Micro-Adjustment 13.5 mm Depth, 13 mm Height - Fine alignment that squares the bezel gaps across an entire array.
• 120 mm To 325 mm Clearance Range - Slim when retracted, genuinely workable when extended.
• Tilt Plus 2 To Minus 3 Degrees - Small corrective range for planar alignment, not viewing angle.
• Anti-Theft Locking Design - Keeps panels secure in unattended retail and transit environments.
• Cold-Rolled Steel Construction - Fine-texture black powder coating that stays discreet behind the panel line.

A video wall lives or dies on two things: whether the array looks like one image, and whether you can service it without a scaffold and a lost afternoon. The micro-adjustment of 13.5 mm in depth and 13 mm in height handles the first, letting an installer dial out the accumulated tolerance that makes a tiled wall look stepped under raking light. The push-pull pop-out access handles the second, turning a media-player swap into a two-minute job at the front of the wall. Meanwhile the 130 kg load rating and anti-theft locking design mean the array is safe in a public concourse, and portrait or landscape support means the same bracket serves a 3x3 landscape wall in a corporate lobby or a column of portrait panels in a retail window.

Ideal for: offices, retail, hospitality and education across Dubai, Abu Dhabi, Sharjah and the GCC.
