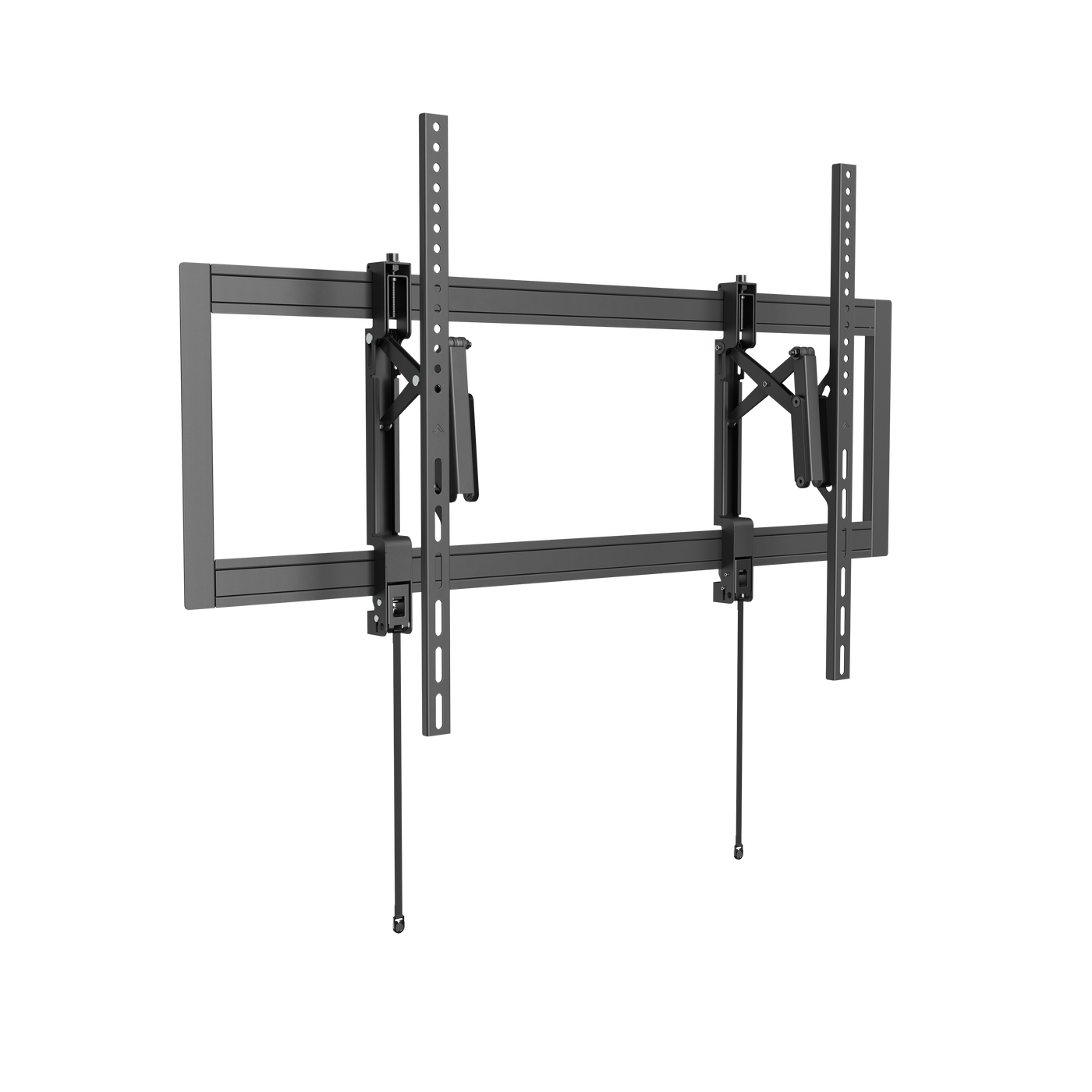

VSYS VS03P-610T Pull-Out Tilting Wall Mount for 55"–105" Displays, 80 kg

The VSYS VS03P-610T Pull-Out Tilting Wall Mount for 55"–105" Displays, 80 kg is built for the awkward wall — the one above a fireplace, above a credenza, or in a joinery recess where a flush bracket would leave the screen aimed at the ceiling and the connections permanently out of reach. Its 172 mm pull-out extension brings the whole panel forward for cabling work and then pushes it back to a slim 53 mm resting profile. Once it is out, tilt from plus 10 to minus 15 degrees and swivel of 10 degrees either way let you point the picture exactly where the audience is sitting. Add sliding lateral positioning and you are no longer hostage to where the studs happen to fall. UL certified 2 mm steel carries up to 80 kg on displays to 105". Adjustable where it counts, invisible when it is closed.

Key Features

• 172 mm Pull-Out Extension - Draws the panel clear of the wall for full rear access, then retracts flush.
• Tilt Plus 10 To Minus 15 Degrees - Corrects the sightline on above-fireplace and above-cabinet positions.
• Swivel 10 Degrees Either Way - Angles the picture towards seating that is not centred on the wall.
• Sliding Lateral Positioning - Shifts the display left or right on the wall plate after fixing, independent of stud centres.
• 80 kg Load Rating - UL certified 2 mm cold-rolled steel for large residential and commercial panels.
• 55" To 105" Coverage - One bracket spans boardroom, lobby and showroom display sizes.
• Micro-Adjustment Levelling - Squares the panel perfectly after installation without re-drilling.
• VESA Up To 1000x600 mm - Maximum hole spread of 1000x602 mm suits the largest patterns in this class.
• Anti-Theft Locking Structure - Secures the display in public-facing and unattended locations.
• Quick-Release Spring Locks - Fast, controlled fitting and removal of the panel itself.
• 53 mm To 172 mm Clearance Range - Slim when closed, generous when open.

What separates this bracket from an ordinary tilting mount is that all the adjustment survives the installation. The sliding lateral positioning and micro-adjustment levelling mean the panel can be centred on the room rather than on the timber behind the plasterboard, which is the single most common reason a finished wall looks wrong. The 172 mm pull-out extension then makes the difference between a five-minute source swap and an afternoon of taking a 105" screen off the wall, and the anti-theft locking structure means you can leave it in a showroom or a hotel lobby without worrying. Combine tilt plus 10 to minus 15 degrees with swivel 10 degrees either way and it will serve a lounge display mounted above a fireplace just as well as a corner-mounted screen in a busy showroom.

Ideal for: offices, retail, hospitality and education across Dubai, Abu Dhabi, Sharjah and the GCC.
