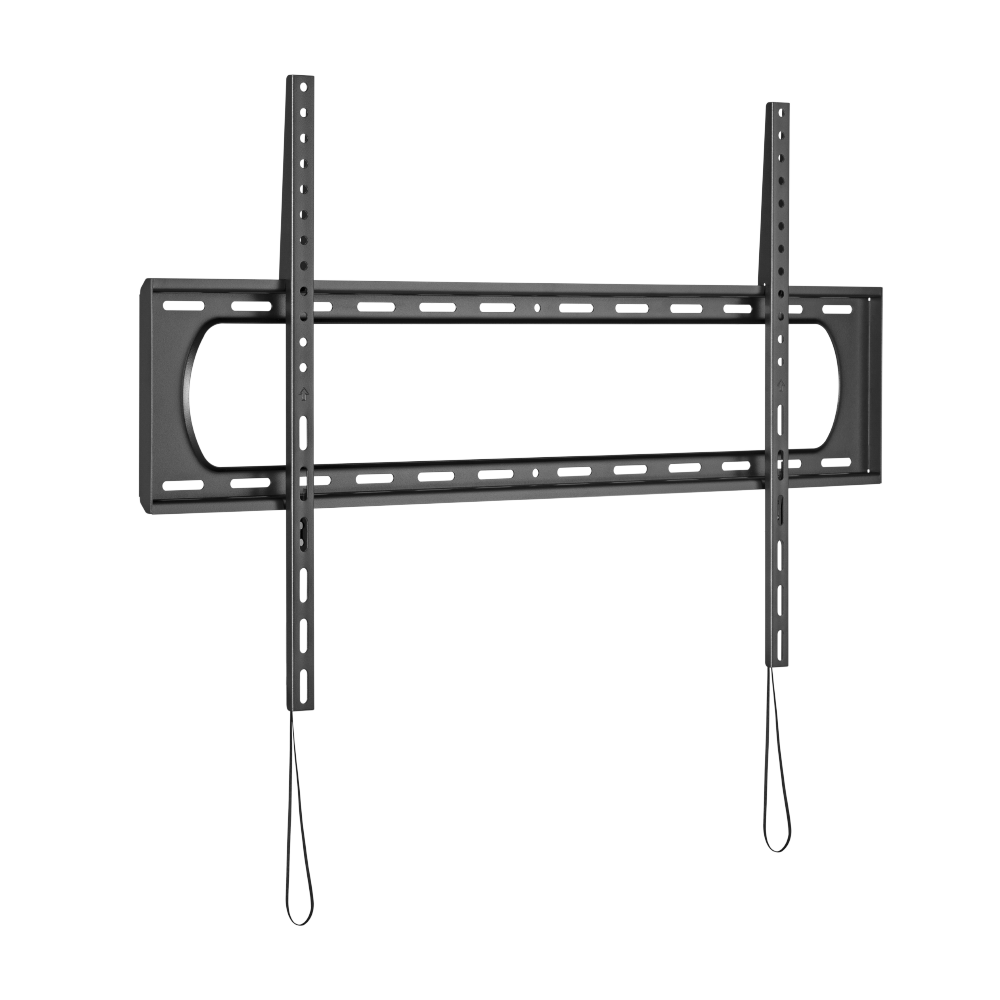

VSYS VS01A-69F Heavy-Duty Fixed Wall Mount for 60"–120" Displays, 120 kg

The VSYS VS01A-69F Heavy-Duty Fixed Wall Mount for 60"–120" Displays, 120 kg is what you specify when the screen is enormous, the wall is public, and the mount simply is not allowed to be the weak link. Fabricated from 2 mm cold-rolled steel through both the arms and the wall plate, UL approved and strength tested four times over, it carries panels up to 120 kg across a 60" to 120" size window — the auditorium, town-hall and large-format signage class where a failure is not a scratched TV but a serious incident. Despite that capacity it stays at a 35 mm wall clearance, so a 110" panel still sits tight against the plasterboard line rather than jutting into the room. Quick-release spring locks with pull cords let a technician drop the panel forward for rear access without dismantling the installation. Serious structure, discreet result.

Key Features

• 120 kg Load Rating - Sized for the heaviest large-format commercial panels, with headroom to spare.
• UL Approved - Independently certified structure, which matters when facilities or safety sign-off is required.
• 2 mm Cold-Rolled Steel - Heavier gauge than standard brackets, with stiffeners that stop arm deflection over a 120" span.
• 60" To 120" Coverage - Handles flat and curved large-format panels on a single part number.
• 35 mm Wall Clearance - Unusually low for a mount of this class, keeping giant screens visually flush.
• VESA 50x50 To 900x600 mm - Maximum hole spread of 974x602 mm reaches the widest large-panel patterns.
• Quick-Release Spring Locks - Pull cords release the panel for rear access, then it re-seats and locks securely.
• Triple Stud Spacing - Fixes across studs at 406, 450 or 600 mm centres, or to structural masonry.
• Hook-On Bubble Level - Included, so a heavy panel is levelled once and levelled correctly.
• Open Architecture - Rear space for socket outlets, concealed cabling and panel ventilation.
• Strength Tested Four Times Over - Verified safety margin for permanent, high-level public installations.

Everything about this bracket is written for the person signing off the installation. The 120 kg load rating and UL approved certification give a facilities manager something defensible to point at; the 2 mm cold-rolled steel and stiffened arms mean the panel does not develop a slow lean over a summer of air-conditioning cycles; the hook-on bubble level and triple stud spacing mean the crew levels it once on the day rather than returning to shim it. The quick-release spring locks then pay for themselves the first time a media player behind the screen needs swapping. Choose it for a permanently fixed auditorium display where the sightline is already correct, or for a 110" lobby signage panel that must look built-in rather than bolted on.

Ideal for: offices, retail, hospitality and education across Dubai, Abu Dhabi, Sharjah and the GCC.
