Sennheiser TeamConnect Ceiling Medium F-W 700170

The Sennheiser TeamConnect Ceiling Medium F-W (700170) is a ceiling-mounted conference microphone array designed for medium-sized meeting rooms. Featuring 15 German-made electret capsules and adaptive beamforming, it delivers clear speech intelligibility. SmartScreens.ae supplies this Microsoft Teams certified device across Dubai, Abu Dhabi, and the wider GCC with professional installation support.

This ceiling microphone array utilises 15 pre-polarised electret condenser capsules to capture voice accurately in collaborative spaces. The integrated adaptive beamforming technology dynamically focuses on active talkers, ensuring consistent audio quality even in open-plan or large conference environments. With a frequency response of 100 Hz to 16,000 Hz and a dynamic range of 83 dB(A), it provides the clarity required for professional video conferencing without the visual distraction of table-mounted devices.

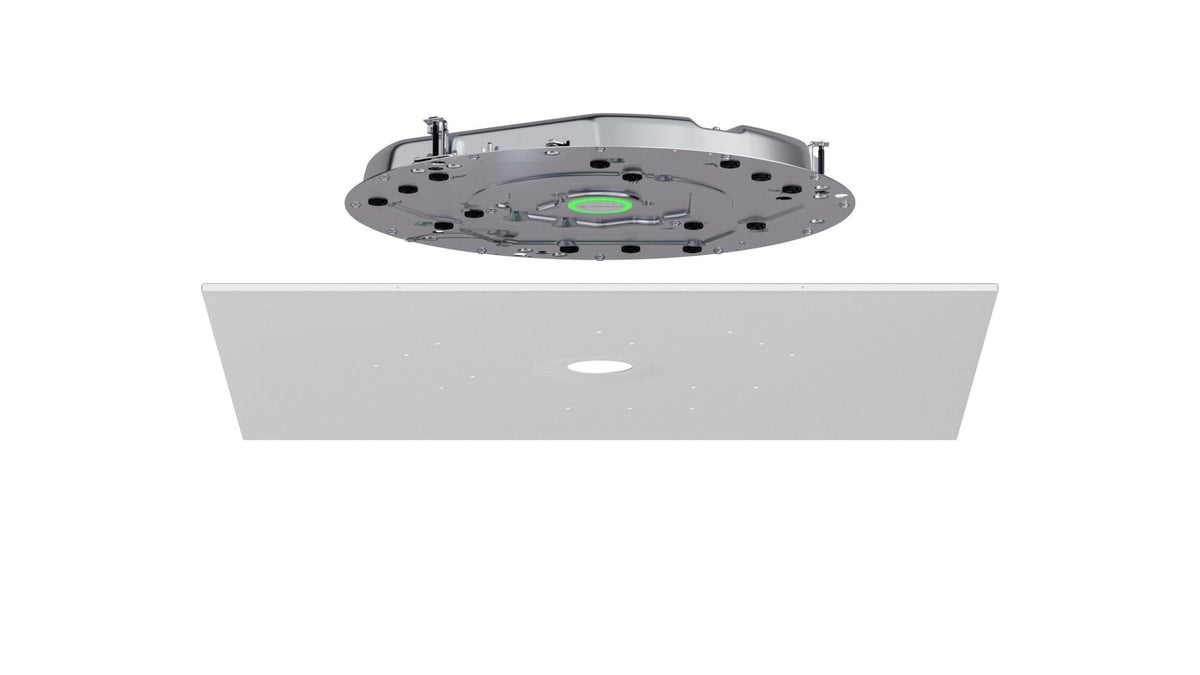

Installation flexibility is central to the TeamConnect Ceiling Medium F-W design, supporting flush, surface, suspended, or VESA mounting options. The metal housing is paintable to match interior aesthetics, while single-cable mode and PoE/PoE+ connectivity simplify cabling for IT infrastructure. It supports both Dante digital and analog audio outputs, allowing seamless integration with existing AV systems. The unit weighs 4.9 kg and operates within 20% to 95% relative humidity, making it suitable for diverse UAE office conditions.

Key Features

• Audio Capture - 15 German-made electret condenser capsules capture voice with a frequency response of 100 Hz to 16,000 Hz and 83 dB(A) dynamic range.
• Beamforming Tech - Patented adaptive dynamic beamforming and TruVoicelift ensure perfect speech intelligibility by automatically focusing on active speakers.
• Connectivity Options - Supports PoE/PoE+ power over a single cable and offers both Dante digital and analog audio output via a 3-pin terminal.
• Camera Control - Transmits talker position data to enable automated camera control, allowing the system to follow the active speaker during meetings.
• Security Standards - Features encrypted SSCv2 API with TLS 1.2 and IEEE 802.1x support, with audio muted until initialisation is complete.
• Mounting Versatility - The 4.9 kg metal housing supports flush, surface, suspended, or VESA mounting and can be painted to blend with room decor.

Security and management are handled via the encrypted Sennheiser Sound Control Protocol (SSCv2) with TLS 1.2 and IEEE 802.1x support. The device requires initialization with Sennheiser Control Cockpit before first use, defaulting to mute for security during this process. Certified for Microsoft Teams, it offers priority zones and camera control via talker position data. SmartScreens.ae, an authorised reseller, provides procurement-ready quotations including TRN VAT invoicing for UAE government and enterprise clients, along with free virtual demonstrations.

Ideal for: Medium-sized conference rooms in Dubai offices, Abu Dhabi government facilities, and Sharjah corporate training spaces requiring clear audio capture.

Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.

Sennheiser TeamConnect Ceiling Medium F-W 700170 specifications

Material

Metal housing, paintable

Mounting Type

Flush, surface, suspended or VESA

Audio Out

Dante or analog; analog via 1 x 3-pin terminal (fits Phoenix Contact MCVW 1.5-3-ST-3.81)

Operating Humidity

20% to 95% RH, non-condensing

Power Consumption

8 W (approx.)

Product Weight

4.9 kg

Warranty

5 years

Model

TeamConnect Ceiling Medium F-W

Product Type

Ceiling Microphone Array

Key Features

Adaptive beamforming, TruVoicelift, Single-cable mode, PoE/PoE+ powered, Dante or analog output, Exclusion and priority zones, Camera control via talker position data, Microsoft Teams certified

Dynamic Range

83 dB(A)

Frequency Response

100 Hz to 16,000 Hz

Max SPL

98 dB SPL

Microphone Type

Pre-polarised condenser

PoE

PoE / PoE+, single or daisy-chained

Protocols

SSCv2 API with TLS 1.2 encryption, IEEE 802.1x

Sensitivity

0 dBV/Pa (1020 mV/Pa)

Signal-to-Noise Ratio

79 dB(A)

Microphone

15 electret condenser capsules, made in Germany

Certifications

Microsoft Teams

Connectivity Options

Wired, PoE/PoE+
