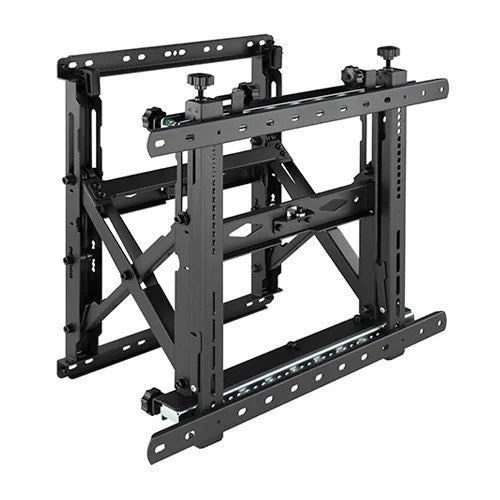

VSYS VSVW13-46T Full-Service Video Wall Mount for 45"–70" Displays, 70 kg

The VSYS VSVW13-46T Full-Service Video Wall Mount for 45"–70" Displays, 70 kg is the modular bracket you specify when a signage wall has to be serviceable, precise and expandable. Each panel sits on a push-pull pop-out lock system that travels between 120 mm and 325 mm of wall clearance, so a technician can reach every connector without touching the neighbouring screens. It handles 45" to 70" panels up to 70 kg, mounted in portrait or landscape, which means one part number covers a horizontal lobby ribbon and a vertical wayfinding stack on the same project. Commissioning is where it really earns its place: micro-adjustment of 13.5 mm in depth and 13 mm in height lets you dial each screen into perfect register with its neighbours, and an anti-theft locking design keeps the finished wall secure in public space.

Key Features

• Micro-Adjustment, 13.5 mm and 13 mm - Fine depth and height correction so every panel in the array sits in the same plane.
• Push-Pull Pop-Out Lock - Extends the display for full rear cable access, then locks flush again with no tools.
• 70 kg Load Rating - Strength-tested four times over, sized for the larger panels used in premium signage walls.
• Portrait or Landscape Mounting - One bracket serves both orientations, simplifying specification across mixed layouts.
• 120 mm to 325 mm Clearance - Generous service travel for deep-bodied displays and bulky connector looms.
• Modular Across Rows and Columns - Designed to be tiled into arrays of any size as an installation grows.
• Toolless Tilt, +2 to -3 Degrees - Small angular correction for panels that need it after commissioning.
• Anti-Theft Locking Design - Built-in security for malls, transport hubs and other public-facing sites.
• 2 mm Arms and 2.5 mm Wall Plate - Cold-rolled steel with a fine-texture black powder coating that hides in the bezel shadow.
• VESA up to 600x400 mm - Maximum mounting hole spread of 604 x 405 mm covers most large signage panels.

Video walls fail commercially, not structurally: a single misaligned panel or an inaccessible media player is what gets a project remembered badly. The micro-adjustment of 13.5 mm in depth and 13 mm in height removes the first problem at commissioning, and the push-pull pop-out lock removes the second for the whole life of the installation. Add portrait or landscape mounting, a 70 kg load rating and a modular layout that scales in both directions, and you have hardware that supports the build rather than fighting it. Deploy it for a retail flagship's feature wall, or a 24-hour operations centre where a panel swap cannot mean taking the whole array down.

Ideal for: offices, retail, hospitality and education across Dubai, Abu Dhabi, Sharjah and the GCC.
