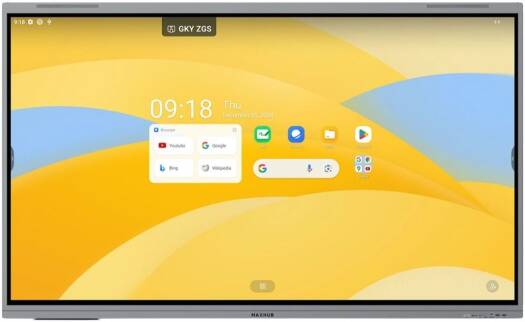

MAXHUB S7520 Interactive Display, 75" TFT LCD Module with DLED Backlight, 4K UHD Resolution, 6.5ms Response Time, 50 Touch Points, IR Touch Type, 2x 20 W Speakers | S7520

MAXHUB S7520 Interactive Display, 75" TFT LCD Module with DLED Backlight, 4K UHD Resolution, 6.5ms Response Time, 50 Touch Points, IR Touch Type, 2x 20 W Speakers | S7520

  • Ultra fine touch for faster interaction
  • 4K UHD clarity for modern spaces
  • Multiple connectivity options
  • 75" TFT LCD module with DLED backlight Display
  • 4K UHD (3840 × 2160) Resolution
  • 6.5 ms Response Time
  • 50 Touch Points
  • IR Touch Type

    Specifications



    LCD
    Screen Size 75"
    Type TFT LCD module with DLED backlight
    DC Dimming Yes (Flicker Free)
    Resolution 3840 × 2160 (4K UHD)
    Orientation Landscape
    Brightness (Typ./Max.) 400 / 450 nits
    Viewing Angle H: 178° / V: 178° (typ.)
    Contrast Ratio 5000:1 (typ.), 50,000:1 (dynamic)
    Operating Hour 16 / 7
    Frequency 60 Hz
    Backlight DLED
    Response Time 6.5 ms
    Color Gamut 98% sRGB
    Backlight Lifetime ≥ 50,000 hrs
    Haze 25%
    I/O Ports
    USB 2.0 ×1, 3.0 ×4, Type-C ×2 (USB 2.0+DP+5V3A; USB 2.0+DP+PD65W/15W with OPS)
    Touch Out Type-B (USB 3.0) ×2
    HDMI In (2.0) ×3, Out (2.0) ×1
    DP In ×1
    VGA In ×1
    RJ45 In ×1 (10/100/1000 Mbps), Out ×1 (10/100/1000 Mbps)
    Audio PC Audio In (3.5 mm) ×1, Audio Out (3.5 mm) ×1, SPDIF ×1
    RS232 ×1
    OPS Slot Internal connector ×1
    TF Card Slot ×1
    Wi-Fi Module SI07B
    SoC
    CPU A72 ×4 + A53 ×4
    GPU G52 MC3
    NPU 6 TOPS
    Touch System
    Type IR
    Touch Points 50
    Accuracy ±0.5 mm (90% area)
    Min. Touch Object 1.5 mm
    Writing Height 1 mm
    Response Time < 2.5 ms
    Multi-Level ID 4
    Bonding Zero bonding
    Palm Rejection Yes
    Operating System Android 14, Google EDLA Certified
    Storage RAM 8 GB, ROM 128 GB
    Camera
    Quantity 1
    Pixel 50 MP
    FOV 99° DFOV
    Position Middle
    Features Manual Mode, Auto Framing, Speaker Tracking
    Microphone
    Quantity 8
    Pickup Distance 0–12 m
    Audio 2 × 20 W speakers
    Accessory Power Cord (3 m) ×1, Passive Touch Pen ×2 (SW13F), Power Adaptor
    Power AC-In 100–240 VAC ±10%
    Sensor Light Sensor
    Button Power Button
    Physical Specification
    Dimension (W×H×D) 1709 × 1039 × 98 mm
    Shipping Dimension 1863 × 225 × 1163 mm
    Thickness (with wall mount) 128 mm (WIB9060H)
    Wall Mount M8 × 25 mm, VESA 800 × 400 mm
    Net Weight 44.25 kg
    Gross Weight 54.15 kg
    Environmental Condition
    Operating Temp. 0°C ~ 40°C
    Storage Temp. -20°C ~ 60°C
    Operating Humidity 10% ~ 90% RH
    Storage Humidity 10% ~ 90% RH
    Altitude < 5000 m
    Software
    System OS MAXHUB EDU OS V4
    Whiteboard Tool MAXHUB Class Pro
    Screen Sharing MAXHUB Connect
    Device Management MAXHUB Pivot
    Google Apps Play, Drive, Meet, Maps, YouTube, etc.
    Other Apps Browser, Cloud Drive, Note, Palette, etc.
