MAXHUB 86 inch E3 Series Interactive Display – Model E8630
MAXHUB 86 inch E3 Series Interactive Display – Model E8630
Experience next-level collaboration with the MAXHUB 86 inch E3 Series Interactive Display, model E8630. Designed for modern meeting rooms and dynamic classrooms, this powerful interactive display transforms any space into a hub of productivity. The expansive 86-inch 4K UHD touchscreen delivers crystal-clear visuals, vivid colors, and precise touch response, making presentations and brainstorming sessions seamless. With integrated wireless screen sharing, smart whiteboard capabilities, and multi-device connectivity, the MAXHUB E3 Series empowers teams to interact effortlessly. Whether you're annotating documents, sharing multimedia, or video conferencing, this digital display solution ensures smooth performance and intuitive usability. Built for reliability and security, the MAXHUB E8630 is ideal for education, corporate, and training environments seeking to boost engagement and efficiency. Elevate your workspace with this interactive flat panel, engineered to support collaborative innovation and effective communication. Discover the future of smart meeting technology and make every interaction matter with MAXHUB's advanced features and sleek design.
Key Features
Ultra-Large 86-Inch 4K UHD Display - Stunning 3840x2160 resolution for immersive visuals and detailed presentations.
20-Point Multi-Touch Technology - Enables simultaneous collaboration by multiple users for interactive sessions.
Integrated Wireless Screen Sharing - Seamlessly cast content from laptops, tablets, or smartphones without cables.
Smart Digital Whiteboard - Write, draw, and annotate effortlessly with intuitive tools and palm rejection.
Built-In Android OS - Access apps, web browsing, and productivity tools directly from the display.
Advanced Audio System - High-fidelity speakers deliver clear, room-filling sound for presentations and video calls.
Robust Connectivity Options - Multiple HDMI, USB, LAN, and audio ports for versatile device integration.
Anti-Glare, Durable Glass - Scratch-resistant surface ensures comfortable viewing and longevity in high-traffic spaces.
Energy-Efficient Performance - Designed for low power consumption without compromising brightness or clarity.
Remote Device Management - Simplifies control and monitoring for IT administrators in enterprise settings.
Flexible Mounting Solutions - Compatible with wall mounts and mobile stands for adaptable installations.
The MAXHUB 86 inch E3 Series Interactive Display (model E8630) is the ultimate choice for those seeking a versatile and high-performance interactive flat panel solution. Perfect for business, education, and collaborative environments, it combines cutting-edge technology, user-friendly features, and robust connectivity to bring your ideas to life. Upgrade your workspace today with MAXHUB’s industry-leading display innovation.
| Name | MAXHUB 86 inch E3 Series Interactive Display – Model E8630 |
| Refresh Rate | 60 Hz |
| Screen Size | 86 inch |
| Sensors | Ambient light sensor, Ambient color temperature sensor |
| Accessories | Remote Control × 1, Stylus × 2, Display Bracket × 2, Wall Mount Bracket WIB9060H × 1, Wi-Fi Module SI07B × 1 |
| Included Cables | Power Cord 3 m × 1, HDMI Cable 3 m × 1 |
| Wall Mount | 129 mm (WIB9060H) |
| Power Consumption | 190W |
| Power Standby | 0.5 W |
| Shipping Dimensions | 2110 × 1305 × 225 mm |
| Product Dimensions | 1959 × 1179 × 100 mm |
| Product Weight | 52.45 kg |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 °C - 40 °C |
| Blue-Light Filter | Yes |
| Ambient Light Sensor | Yes |
| RAM | 8 GB |
| Storage | 128 GB |
| NPU | 6 TOPS |
| GPU | Mali G52 MC3 |
| CPU | A72 × 4 + A53 × 4 octa-core, 2.2GHz |
| OS Version | Android 14 |
| Touch Points | 40 Points Multi Touch |
| Touch Technology | Infrared |
| Touch Response Time | < 5 ms |
| Touch Accuracy | ± 1.5 mm |
| Surface Protection | Anti-Glare Smooth Glass |
| Ethernet (RJ45) | RJ45 IN × 1, RJ45 OUT × 1 |
| Wi-Fi | Wi-Fi 6, 2.4G/5G |
| Bluetooth | Bluetooth 5.2 |
| Serial Port | RS232 × 1 |
| SD Card Slot | TF Card Port × 1 |
| OPS PC Slot | Optional |
| USB Ports | USB 2.0 × 1, USB 3.0 × 4 |
| Touch USB Ports | Touch × 2 |
| Audio Out | AUDIO OUT × 1 |
| Audio In | AUDIO IN × 1 |

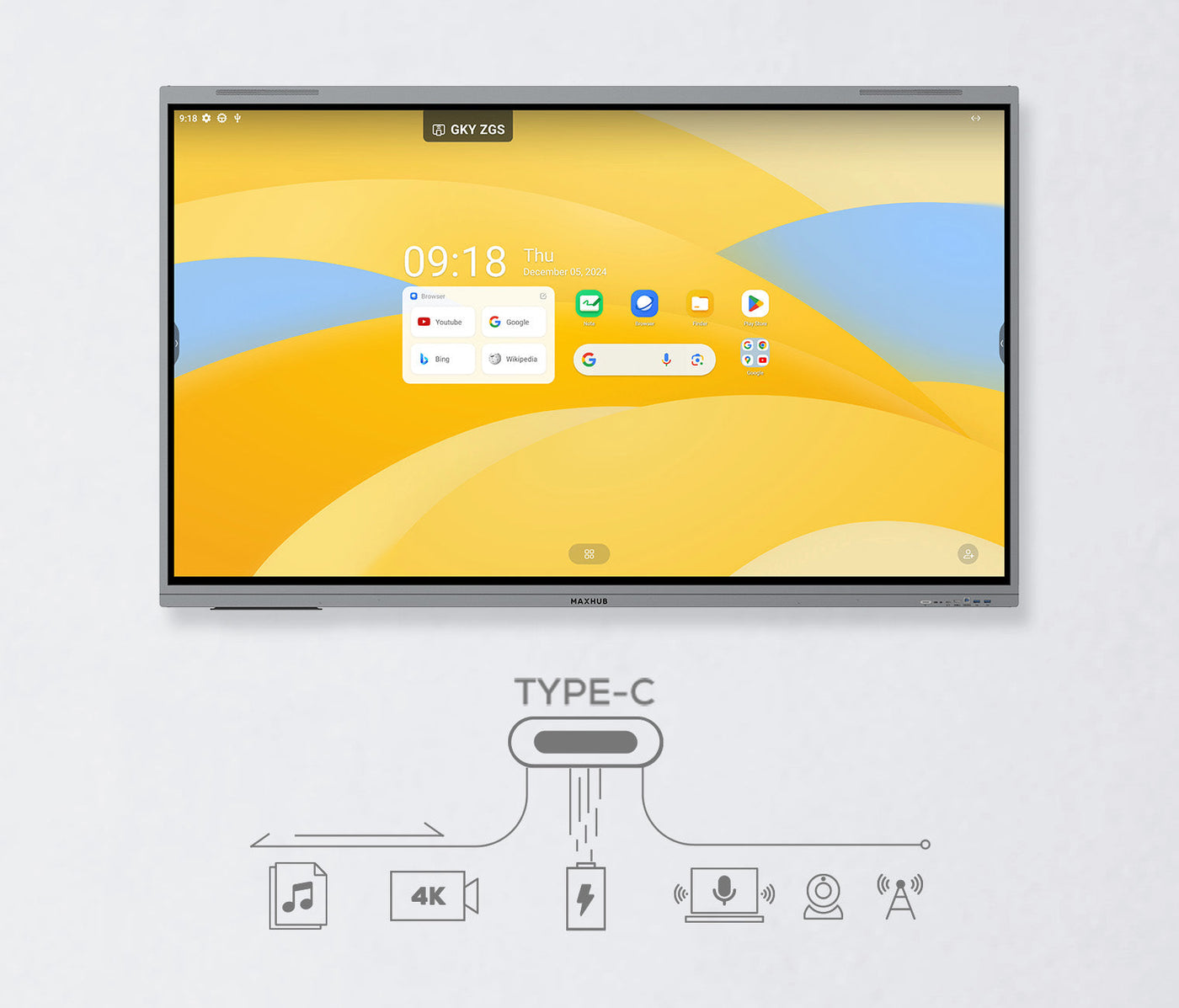

| Type C Functionality | Video and audio transmission, touch, charging, LAN network sharing. Front: up to 65W PD, Rear: up to 15W PD |
| Type C in | USB Type-C × 2 |
| DP 1.2 | DisplayPort Input × 1 |
| VGAInput | VGA × 1 |
| Hdmi Output | HDMI OUT × 1 |
| Hdmi Input | HDMI IN × 3 |
| Speaker Output | 2 × 8W + 2 × 18W (output) |
| Speaker Type | Built-in Speakers |
| Brightness | 400 cd/m² |
| Display Color | 10bit |
| Resolution | 3840 × 2160 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | DLED |
