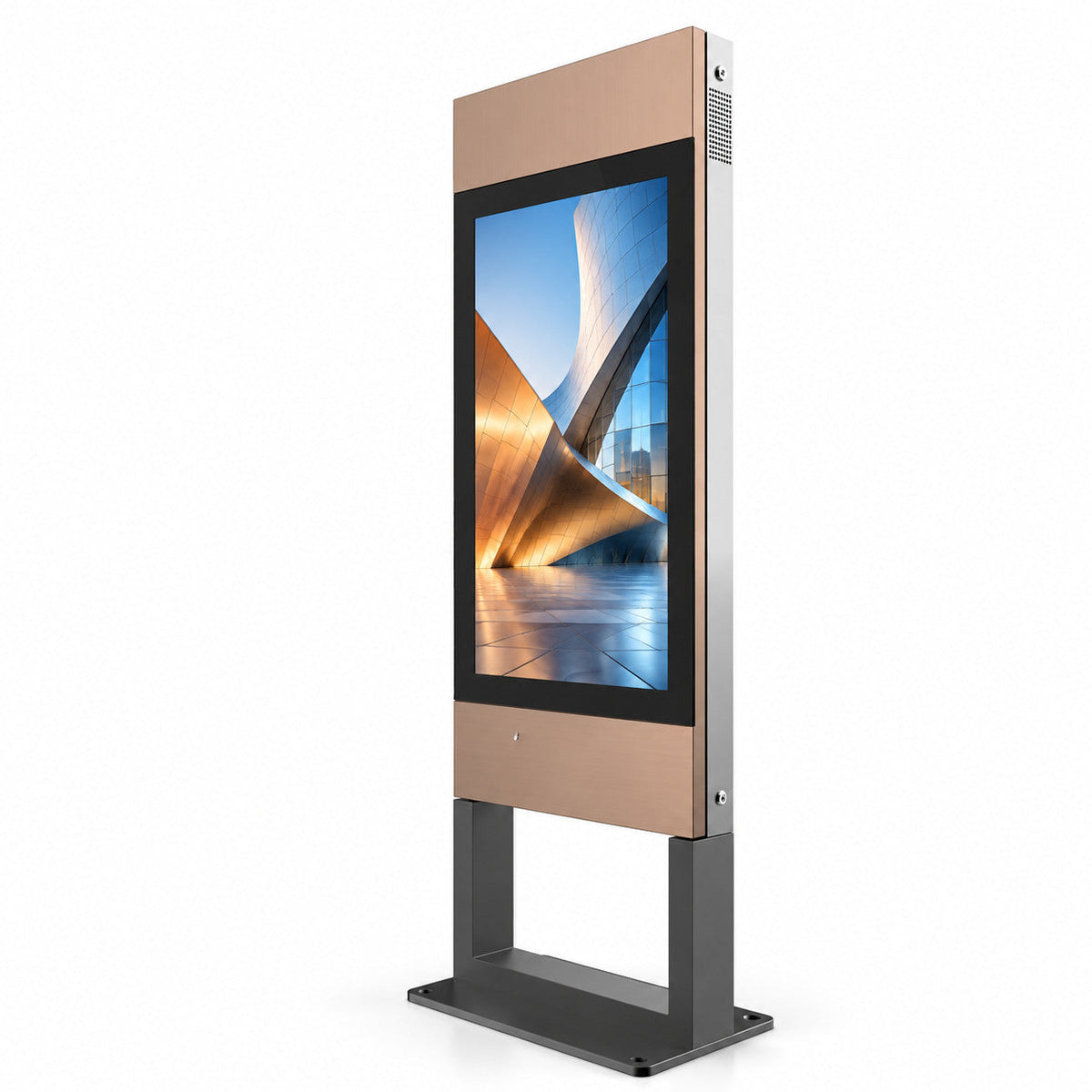

Marvel MWE861 Outdoor Digital Signage Display – MWE861

The Marvel MWE861 is an 86-inch outdoor digital signage display engineered for high-visibility environments. Featuring 2500 nits brightness and IP65 protection, it ensures clear content in direct sunlight. SmartScreens.ae supplies this robust kiosk with professional installation and support across the UAE.

This high-brightness digital signage unit is built to withstand harsh outdoor conditions while delivering sharp Full HD content. The 2500 nit backlight ensures readability even under intense UAE sunlight, supported by a contrast ratio of 3,000:1. With a viewing angle of 89° vertically and horizontally, the display maintains colour accuracy from multiple perspectives. The aluminium alloy and tempered glass construction provides durability against weather elements.

The MWE861 supports 10-point PCAP touch technology, with options for 20 or 40 touch points for interactive public information. It offers flexible operation via a built-in PC or Android version, connected through RJ45 Ethernet or optional Wi-Fi and 4G modules. Connectivity includes VGA, HDMI, and USB ports for the PC version, while the Android variant adds HDMI, USB, and SD card slots for versatile media playback.

Key Features

• High Brightness Display - 2500 nits brightness ensures content visibility in direct sunlight with a 3,000:1 contrast ratio.
• Durable IP65 Build - Aluminium alloy and tempered glass shell provide weather resistance and structural integrity.
• Capacitive Touch - 10-point PCAP touch interface with optional 20 or 40 touch points for user interaction.
• Flexible Connectivity - Includes RJ45 Ethernet, Wi-Fi, and optional 4G for remote content management and updates.
• Wide Operating Temp - Functions in temperatures from -30°C to 60°C with integrated air conditioning or fan cooling.
• Dual Operating Systems - Supports both PC and Android versions for adaptable media player configurations.

Operational reliability is ensured by a wide temperature range, from -30°C to 60°C with air conditioning or fan cooling systems. The IP65 rating protects internal components from dust and water jets, making it suitable for permanent outdoor installation. The unit accepts 100–240 V AC input and is available in black, white, silver, or custom finishes. SmartScreens.ae provides procurement-ready quotations and manufacturer-backed warranty coverage for all UAE regions.

Ideal for: Outdoor corporate lobbies, public transport hubs, and government facility entrances in Dubai and Abu Dhabi requiring high-visibility information displays.

Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.

Marvel MWE861 Outdoor Digital Signage Display – MWE861 specifications

Colour

Black, white, silver or custom colours

Material

Aluminium alloy, tempered glass, galvanised steel shell

Backlight

LED

Brightness

2500 cd/m²

Colour Depth

16.7M colours

Operating Temperature

-30 to 60 °C (with air conditioner); -10 to 55 °C (with fan cooling); -30 to 55 °C (with fan cooling and heater)

Resolution

Full HD

Touch Points

10-point touch (20 or 40 optional)

Touch Technology

PCAP

Viewing Angle

89° / 89° / 89° / 89° (minimum, CR ≥ 10)

Model

MWE861 Outdoor High Light Digital Signage

Product Type

Outdoor Digital Signage Display

Key Features

2500 nits, capacitive touch, IP65, Wi-Fi and optional 4G, PC or Android version, 7×24 online support

Application

Outdoor

Aspect Ratio

16:9

Contrast Ratio

3,000:1

Country Of Origin

China

Finish

Sprayed, frosted aluminium

Input Voltage

100–240 V AC, 50/60 Hz

IP Rating

IP65

Ports

VGA, HDMI, USB (PC version); HDMI, USB, SD card (Android version)

Certifications

CE, FCC, RoHS

Connectivity Options

RJ45 Ethernet, Wi-Fi, 4G (optional)
