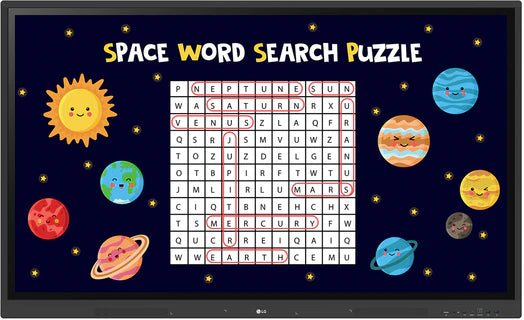

LG CreateBoard 86 inch – Model 86TR3DK-BX
LG CreateBoard 86 inch – Model 86TR3DK-BX
Experience an unparalleled interactive display with the LG CreateBoard 86 inch – Model 86TR3DK-BX, designed for modern classrooms, collaborative workspaces, and conference rooms. This cutting-edge interactive whiteboard combines an expansive 4K UHD touchscreen with ultra-responsive multi-touch technology, making presentations and lessons more engaging. With robust connectivity, including HDMI and USB-C ports, seamless device integration is effortless. The LG CreateBoard supports advanced wireless screen sharing and digital annotation tools, providing educators and business professionals with the flexibility to share, edit, and save content in real time. Enhanced with a durable, anti-glare panel, the 86TR3DK-BX ensures crystal-clear images and comfortable viewing from any angle. Its intuitive interface and powerful built-in software streamline collaboration, transforming any space into a dynamic hub for creativity and productivity. Elevate your presentations with the best in interactive display technology, designed to foster engagement and maximize learning or meeting outcomes.
Key Features
86-Inch Ultra HD Display - Expansive 4K UHD screen delivers exceptional clarity and vibrant visuals for immersive viewing experiences.
Multi-Touch Capability - Supports up to 20 simultaneous touch points for collaborative activities and interactive lessons.
Anti-Glare Panel - Reduces reflections and eye strain, ensuring comfortable viewing in any lighting condition.
Wireless Screen Sharing - Effortlessly connect devices for real-time content sharing and collaboration.
Integrated Annotation Tools - Built-in software allows instant writing, drawing, and highlighting on presentations or lessons.
Robust Connectivity Options - Includes HDMI, USB-C, and other ports for flexible device integration.
Durable Design - Engineered for frequent use in educational and business environments with a rugged, long-lasting build.
Energy Efficient - Low power consumption without compromising performance or brightness.
Customizable User Interface - Intuitive controls and personalized settings enhance ease of use.
Seamless Video Conferencing - Compatible with popular conferencing platforms for smooth remote meetings.
Wall-Mount Ready - Easy installation with versatile mounting options to suit any space.
The LG CreateBoard 86 inch – Model 86TR3DK-BX is the ultimate interactive display solution for those seeking high-performance technology in education or business environments. Its intuitive features, robust connectivity, and superior display quality make it the preferred choice for engaging presentations, lessons, and meetings.
| Name | LG CreateBoard 86 inch – Model 86TR3DK-BX |
| Refresh Rate | 60 Hz |
| Screen Size | 86 inch |
| Sensors | Auto Brightness Sensor |
| Accessories | Writing Pen × 2, User Manual, QSG, Carton Box, Remote Controller, Wi-Fi Module |
| Included Cables | Power Cord (3 M × 1), USB Cable (Type A-Type B) 5 M × 1, HDMI Cable (3 M × 1) |
| Wall Mount | 800 × 600 mm (VESA) |
| Power Consumption | < 580 W |
| Power Standby | ≤ 0.5 W |
| Shipping Dimensions | 2110 × 1283 × 225 mm |
| Product Dimensions | 1957 × 1160 × 100 mm |
| Product Weight | 58.6 kg |
| Operating Humidity | 10%~90% RH |
| Operating Temperature | 0 °C to 40 °C |
| Wake-on-LAN | Yes |
| Ambient Light Sensor | Yes |
| RAM | 4 GB |
| Storage | 32 GB |
| GPU | Mali G52MP2 |
| CPU | Quad Core A55 |
| OS Version | Android 11 |
| Touch Points | 40 Points Multi Touch |
| Touch Response Time | ≤ 5 ms |
| Touch Accuracy | ±1 mm |
| Surface Protection | Anti-Glare Smooth Glass |
| Ethernet (RJ45) | RJ45 (1000 Mbps Port) × 2 |
| Wi-Fi | Wi-Fi 6 |
| Bluetooth | Bluetooth 5.0 |
| Serial Port | RS232 × 1 |
| OPS PC Slot | Optional |
| USB Ports | USB 3.0 × 4, USB 2.0 × 1 |
| Touch USB Ports | Touch USB × 2 |
| Audio Out | Audio Out × 1 |
| Audio In | Audio In × 1 |
| Type C Functionality | USB-PD, DP-Alt |
| Type C in | USB Type C × 1 |
| VGAInput | VGA × 1 |
| Hdmi Output | HDMI Out × 1 |
| Hdmi Input | HDMI In × 3 |
| Speaker Output | 15W × 2 |
| Speaker Type | Built-in Speakers |
| Brightness | 440 cd/m² |
| Display Color | 10bit |
| Resolution | 3840 × 2160 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | Direct |
