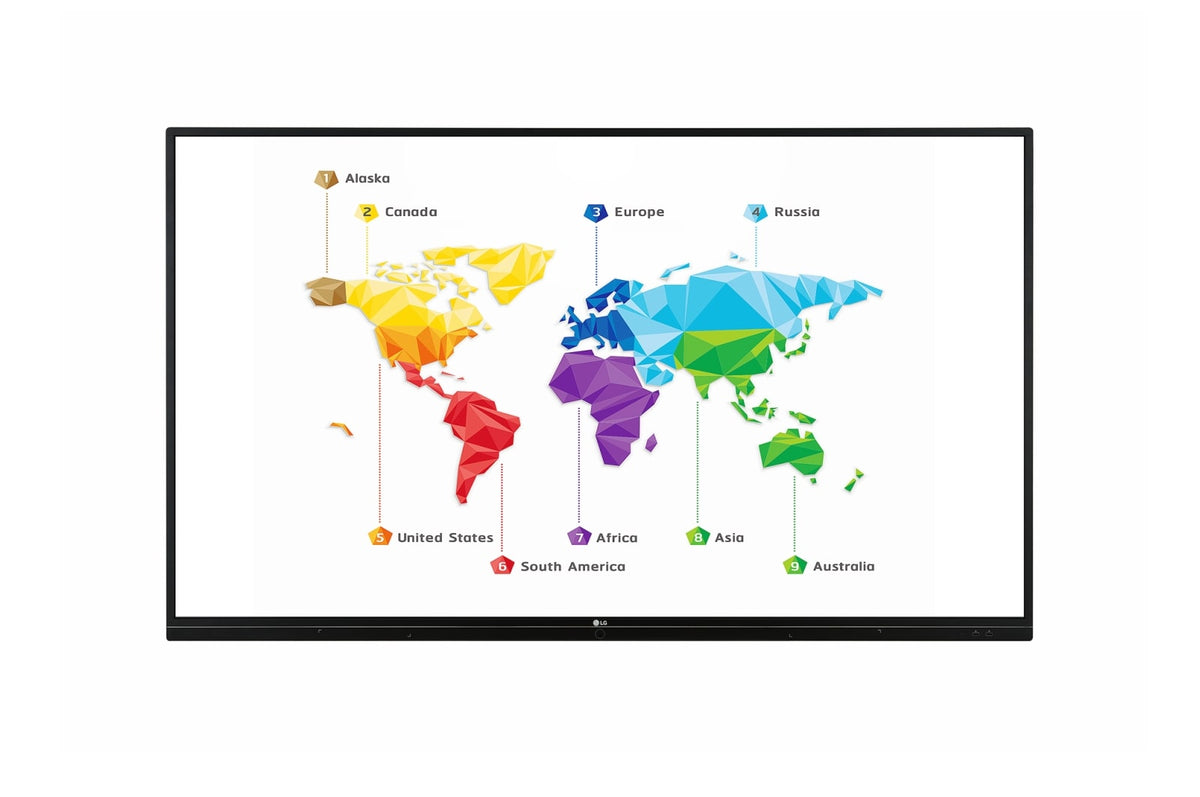

LG CreateBoard 86-inch Interactive Display 86TR3BF
- Infrared touch
- 20-point multi-touch
- 330 nits with protection glass
- Embedded writing software
- OPS compatible
- 24 W speakers
The LG 86TR3BF is a discontinued 86-inch 4K UHD interactive flat panel featuring 20-point infrared touch and embedded software. SmartScreens.ae supplies this model across Dubai, Abu Dhabi, and Sharjah, offering procurement documentation and installation services for enterprise and education sectors.
This 86-inch display delivers 4K UHD resolution (3840 x 2160) on an IPS panel with 330 nits brightness and a 1,100:1 contrast ratio. The infrared touch technology supports 20-point multi-touch with 1.5 mm accuracy, enabling smooth collaboration. Integrated 24 W stereo speakers provide audio output, while the OPS slot allows for flexible computing expansion. The unit weighs 67 kg and supports VESA 800 x 600 mm mounting.
Connectivity includes three HDMI inputs, one HDMI output, optical audio out, RS232C, and RJ45 LAN for network integration. USB ports consist of three 3.0 and three 2.0 connections for peripheral access. The system supports Windows, Linux, macOS, and Android environments, ensuring broad compatibility. Power consumption is rated at 365 W typically, operating within 0 to 40 °C temperatures.
Key Features
- Display Specifications - 86-inch IPS panel with 4K UHD resolution, 330 nits brightness, and 178° viewing angles.
- Touch Technology - Infrared touch system supporting 20-point multi-touch and 10 writing points with 1.5 mm accuracy.
- Connectivity Options - Features three HDMI inputs, one HDMI output, optical audio, RS232C, RJ45 LAN, and an OPS slot.
- Audio Output - Built-in 24 W stereo speakers (12 W + 12 W) for clear audio without external amplification.
- Included Accessories - Packaged with power cord, USB and HDMI cables, two writing pens, remote control, and user manuals.
- Mounting & Power - Supports VESA 800 x 600 mm mounting, operates on 100–240 V AC, and weighs 67 kg.
As an authorised reseller, SmartScreens.ae provides procurement-ready quotations with TRN VAT invoicing for UAE businesses and government entities. We supply across Dubai, Abu Dhabi, Sharjah, and the wider GCC. Although discontinued, we can confirm availability or recommend current successors. Professional installation and manufacturer-backed warranty support are included for all UAE deployments.
Ideal for: Classrooms in UAE schools, corporate meeting rooms in Dubai and Abu Dhabi, and government training centres requiring large-format collaborative displays.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
LG CreateBoard 86-inch Interactive Display 86TR3BF specifications
- In the Box
- Power cord, USB cable (Type A to Type B), HDMI cable, two writing pens, remote control, user manual, quick start guide
- Brightness
- 330 cd/m²
- Operating Humidity
- 10% to 80% RH
- Operating Temperature
- 0 to 40 °C
- OPS Slot
- Yes (OPS Type compatible)
- Power Consumption
- 365 W (typical), 419 W (maximum)
- Product Dimensions
- 1957 x 1160 x 86 mm
- Product Weight
- 67 kg (head only)
- Resolution
- 4K UHD
- Screen Size
- 86"
- Shipping Dimensions
- 2230 x 1499 x 285 mm
- Speaker Output
- 24 W (12 W + 12 W)
- Touch Accuracy
- 1.5 mm
- Touch Points
- 20-point multi-touch, 10 writing points
- Touch Response Time
- 60 ms (Android) / 100 ms (Windows)
- Touch Technology
- Infrared
- Touch USB Ports
- USB 2.0 Type-B × 2
- USB Ports
- USB 3.0 × 3, USB 2.0 × 3
- Viewing Angle
- 178° x 178°
- VESA Mount
- 800 x 600 mm
- Model
- 86TR3BF
- Product Type
- Interactive Flat Panel
- Shipping Weight
- 109 kg (packed)
- Key Features
- Infrared touch, 20-point multi-touch, 330 nits with protection glass, embedded writing software, OPS compatible, 24 W speakers, 30,000-hour minimum life, Windows and Android support
- Aspect Ratio
- 16:9
- Bezel Size
- 17.7 mm top and sides, 45.7 mm bottom
- Compatibility
- Windows 7/8/10/XP, Linux, macOS, Android
- Contrast Ratio
- 1,100:1
- Duty Cycle
- 16 hours/day
- Input Voltage
- 100–240 V AC, 50/60 Hz
- Orientation
- Landscape
- Panel Technology
- IPS
- Ports
- HDMI In × 3, RGB In, Audio In, HDMI Out × 1, Optical Out, RS232C In, RJ45 LAN
- Response Time
- 8 ms (G to G)
- Certifications
- CB, NRTL, FCC Class A, CE
Frequently Asked Questions
Is the LG 86TR3BF still in production?
No, the LG 86TR3BF is a discontinued model. SmartScreens.ae can confirm current stock levels or recommend the latest successor models that meet your requirements. Contact our team for available alternatives.
Can I buy this model in the UAE?
Yes, SmartScreens.ae supplies this interactive display across Dubai, Abu Dhabi, Sharjah, and the wider GCC. Pricing is by quotation, and we provide TRN VAT invoicing for UAE businesses and government procurement.
Does the panel support Windows and Android?
Yes, the system is compatible with Windows 7/8/10/XP, Linux, macOS, and Android. It includes embedded writing software and supports OPS modules for flexible computing integration in various environments.
What is the touch accuracy of this display?
The infrared touch technology offers 1.5 mm accuracy with 20-point multi-touch capability. Touch response time is 60 ms on Android and 100 ms on Windows, ensuring responsive interaction for writing and navigation.
Does SmartScreens.ae offer installation services?
Yes, we provide professional installation for all interactive displays across the UAE. We also offer free on-site or virtual demonstrations before purchase to ensure the product meets your specific space and usage requirements.
What is the warranty coverage for this unit?
The product comes with manufacturer-backed warranty and after-sales support across the UAE. SmartScreens.ae handles compliance documentation and ensures your procurement process meets enterprise and government standards.
