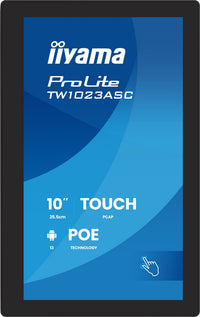

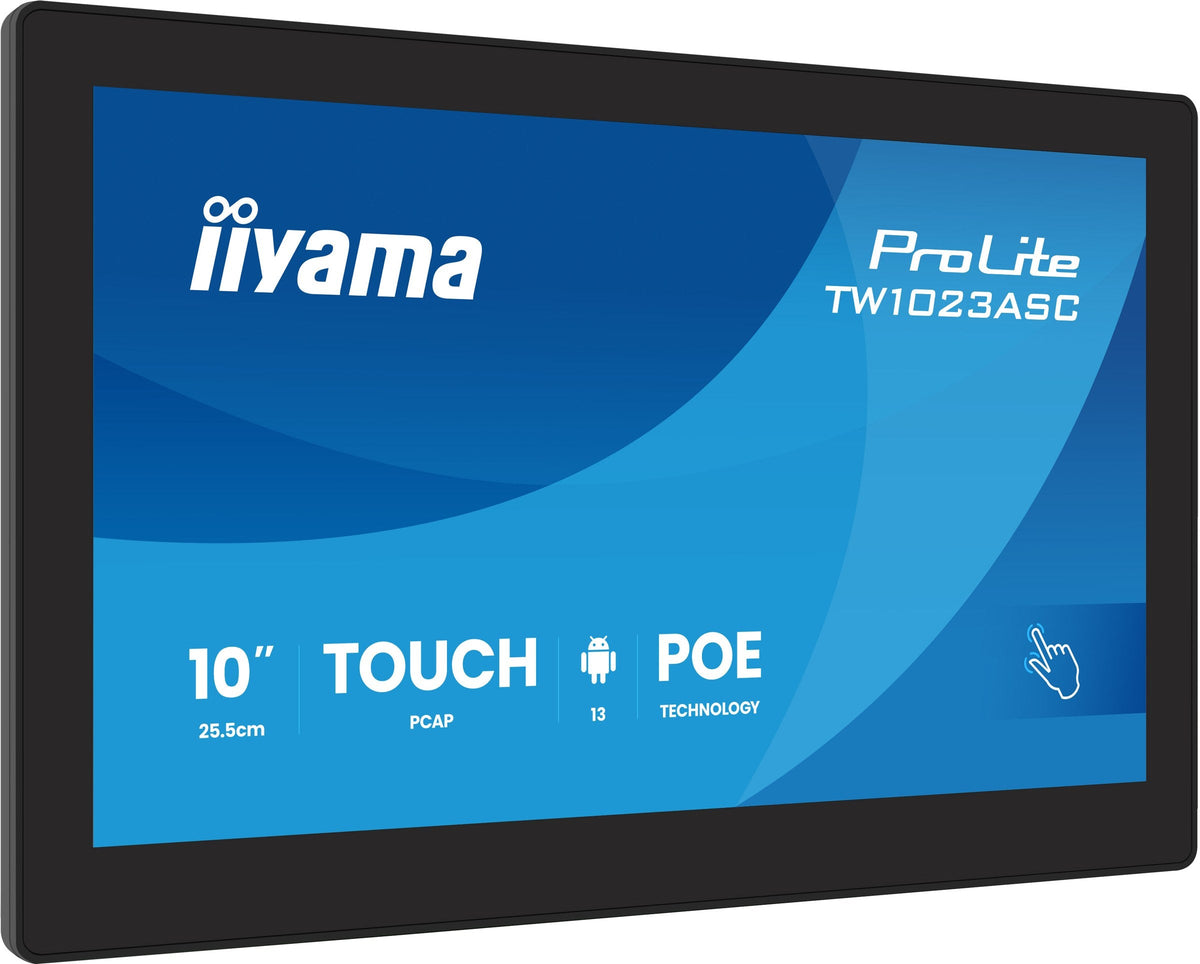

iiyama ProLite TW1023ASC 10.1" Touch Panel PC

The iiyama ProLite TW1023ASC-B3P is a 10.1-inch PCAP touchscreen panel running Android 16. It delivers 10-point interaction and includes a 5 MP camera and microphone for interactive kiosks. SmartScreens.ae supplies this PoE-enabled display for Dubai and Abu Dhabi deployments.

This 10.1-inch IPS display offers 1280 x 800 resolution and 450 nits brightness for clear visibility in well-lit UAE lobbies. Powered by a Rockchip RK3568 processor and 4 GB RAM, the Android 16 OS supports direct app installation for custom digital signage or reception workflows. The 16:10 aspect ratio provides ample screen real estate for interactive content management.

Installation is simplified through IEEE 802.3at PoE, delivering power and data via a single Ethernet cable. The unit includes a built-in 5 MP camera, microphone, and dual 1.5 W speakers for voice-enabled interactions. iiSignage² CMS integration allows remote content control, while the 6H hardened glass ensures durability in high-traffic hospitality or office environments.

Key Features

• Touch & Display - 10.1-inch IPS panel with 1280 x 800 resolution, 450 nits brightness, and 10-point PCAP multi-touch capability.
• Android 16 System - Runs Android 16 on a quad-core Cortex-A55 processor with 4 GB RAM and 32 GB eMMC storage for app flexibility.
• PoE Connectivity - Supports IEEE 802.3at (30 W) Power over Ethernet to simplify cabling in meeting rooms and reception desks.
• Integrated Media - Features a built-in 5 MP camera, microphone, and dual 1.5 W speakers for interactive communication and signage.
• CMS Integration - Compatible with iiSignage² platform for secure, remote management of digital content and advertising messages.
• Orientation & Duty - Supports landscape, portrait, and face-up mounting with 24/7 duty cycle rating for continuous operation.
• Port Selection - Includes RJ45 LAN, mini HDMI, USB 3.2, two USB 2.0, micro USB OTG, and a 3.5 mm audio jack.
• Build & Certs - Compact 255 x 172 x 30.5 mm design weighing 0.8 kg, certified CE, RoHS, and UKCA for global compliance.

SmartScreens.ae, an authorised iiyama reseller, provides procurement-ready quotations for UAE businesses and government entities. Our services include free virtual demonstrations, professional installation, and TRN VAT invoicing. We supply this 24/7 rated touch panel PC across Dubai, Abu Dhabi, and Sharjah, backed by manufacturer warranty and after-sales support for your AV infrastructure.

Ideal for: Interactive reception kiosks, hospitality guest services, and meeting room control panels in Dubai and Abu Dhabi offices.

Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.

iiyama ProLite TW1023ASC 10.1" Touch Panel PC specifications

Bluetooth

Bluetooth 5.2

Brightness

450 cd/m²

Camera

5 MP built-in

Processor

Rockchip RK3568 quad-core Cortex-A55, up to 2.0 GHz

Colour Depth

8-bit (16.7 million colours)

Operating System

Android 16

Power Consumption

18 W (typical)

Product Dimensions

255 x 172 x 30.5 mm (W x H x D)

Product Weight

0.8 kg (without box)

RAM

4 GB LPDDR4X

Resolution

1280 × 800

Screen Size

10.1"

Speaker Output

2 × 1.5 W

Storage

32 GB

Touch Points

10-point multi-touch

Touch Technology

PCAP

Viewing Angle

160° horizontal / 160° vertical

Wi-Fi

802.11a/b/g/n/ac

Model

TW1023ASC-B3P

Product Type

Touch Panel PC

Key Features

Kiosk mode, iiSignage² CMS, Power over Ethernet, 10-point touch, 6H glass, 24/7 operation, Android 16 app installation

Aspect Ratio

16:10

Contrast Ratio

1,000:1

Operating Hours

24/7

Orientation

Landscape, portrait, face-up

Panel Technology

IPS

PoE

IEEE 802.3at, 30 W

Ports

RJ45 LAN × 1, mini HDMI × 1, USB 3.2 Gen 1 × 1, USB 2.0 × 2, micro USB (OTG) × 1, 3.5 mm audio jack × 1

Power Source

DC 12 V external power supply

Response Time

25 ms

Microphone

Built-in × 1

Certifications

CE, EAC, RoHS, ErP, WEEE, REACH, UKCA
