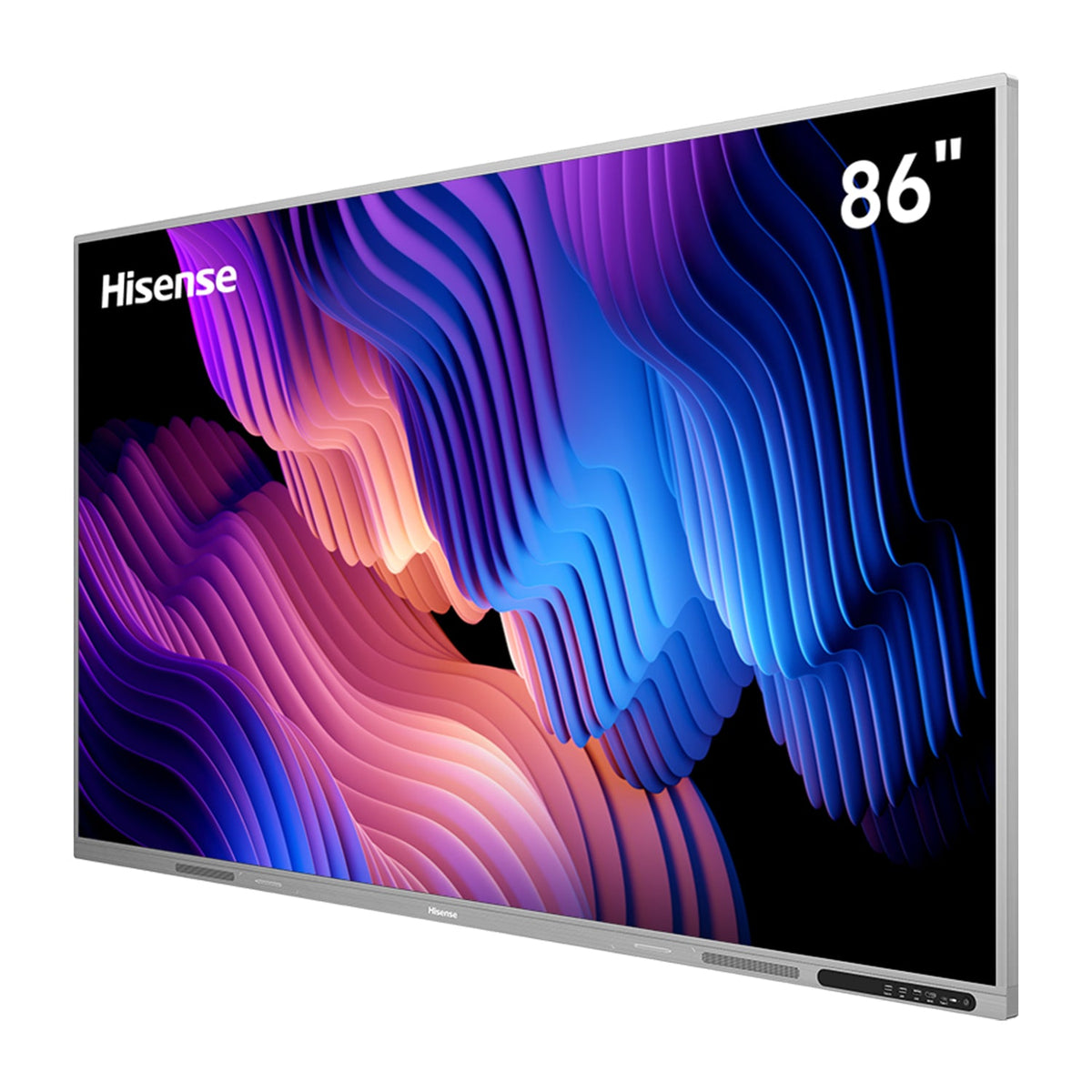

Hisense 86X1EE 86-inch Interactive Flat Panel – LiteBoard
- Operating system-free design
- Infrared touch up to 40 points
- VA panel
- 4
- 000:1 contrast
- 2 x 15 W + 20 W speakers
The Hisense 86X1EE is an 86-inch LiteBoard interactive flat panel designed for secure, operating system-free collaboration. Featuring 4K UHD resolution, 40-point infrared touch, and a VA panel with 4,000:1 contrast, it supports both Google and Windows platforms via optional computer modules. This unit is available through SmartScreens.ae, an authorised reseller supplying UAE businesses and government entities with quotation-based pricing and installation support.
This 86-inch display utilises a VA panel technology to deliver a 3840 x 2160 4K UHD image with a typical contrast ratio of 4,000:1. The 400 nits brightness and anti-glare glass surface ensure visibility in well-lit UAE conference rooms and classrooms. With a 178-degree horizontal and vertical viewing angle, the screen maintains colour accuracy and clarity for audiences seated across wide meeting spaces.
Collaboration is handled by infrared touch technology supporting up to 40 touch points with 90% accuracy (±1 mm). The operating system-free design prioritises data security, allowing seamless integration with external computer modules for Google or Windows environments. Audio output is provided by dual 15 W speakers and a 20 W subwoofer, eliminating the need for external sound systems in standard setups.
Key Features
- 4K UHD VA Panel - Delivers 3840 x 2160 resolution with 400 nits brightness and 4,000:1 contrast for clear visuals.
- 40-Point IR Touch - Infrared touch technology supports up to 40 simultaneous touch points with ±1 mm accuracy.
- OS-Free Security - Operating system-free design ensures information security while interfacing with external computer modules.
- Integrated Audio - Built-in 2 x 15 W + 20 W speakers provide direct audio output for presentations and video calls.
- Versatile Connectivity - Includes 3x HDMI, 1x USB-C, 1x OPS slot, and RS-232 for comprehensive system integration.
- VESA Mounting - Supports standard VESA 1000 x 600 mm wall or stand mounts for flexible deployment.
- Low Power Consumption - Consumes 430 W max and 226.7 W typical power, with standby draw under 0.5 W.
- Wide Viewing Angles - 178-degree horizontal and vertical viewing angles maintain image quality from all seating positions.
Connectivity includes three HDMI inputs, a USB-C port, and an OPS slot for modular computing expansion. The unit weighs 54.5 kg and measures 1954.2 x 1151.1 x 98 mm, fitting standard VESA 1000 x 600 mm mounts. SmartScreens.ae provides professional installation and manufacturer-backed warranty support across Dubai, Abu Dhabi, and Sharjah. Procurement-ready quotations with TRN VAT invoicing are available for enterprise and government buyers.
Ideal for UAE corporate boardrooms, government training centres, and educational facilities requiring secure, large-format collaboration without built-in software dependencies.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Hisense 86X1EE 86-inch Interactive Flat Panel – LiteBoard specifications
- Backlight
- D-LED
- Brightness
- 400 cd/m²
- Built-in Camera
- Yes
- Camera
- None
- Colour Depth
- 10-bit (1.07 billion colours)
- Operating System
- None
- Power Consumption
- 430 W (max) / 226.7 W (typical, without OPS)
- Standby Power
- <0.5 W
- Product Dimensions
- 1954.2 x 1151.1 x 98 mm
- Product Weight
- 54.5 kg (net)
- Refresh Rate
- 60 Hz
- Resolution
- 4K UHD
- Screen Size
- 86"
- Speaker Output
- 2 x 15 W + 20 W
- Surface Protection
- Anti-glare glass
- Touch Accuracy
- 90% (±1 mm)
- Touch Points
- Up to 40
- Touch Technology
- Infrared
- Viewing Angle
- 178° (H) / 178° (V)
- VESA Mount
- 1000 x 600 mm
- Model
- 86X1EE
- Product Type
- Interactive Flat Panel
- Key Features
- Operating system-free design, infrared touch up to 40 points, VA panel, 4,000:1 contrast, 2 x 15 W + 20 W speakers, 50,000-hour typical lifetime
- Color Gamut
- 72% NTSC
- Contrast Ratio
- 4,000:1 (typical)
- Input Voltage
- 100–240 V AC, 50/60 Hz
- Outputs
- Touch × 2, Audio Out × 1
- Panel Technology
- VA
- Ports
- HDMI In × 3, OPS × 1, USB 2.0 × 1, USB 3.0 × 1, USB-C × 1, RS-232 In × 1, Service × 1
- Response Time
- 8 ms
- Certifications
- CB, CE, ERP, cTUVus, CEC, FCC, UKCA, Energy Star
Need a quotation or bulk pricing? Use Request Best Price above or message our sales team on WhatsApp.
Frequently Asked Questions
Is the Hisense 86X1EE available for purchase in the UAE?
Yes. SmartScreens.ae supplies the Hisense 86X1EE across Dubai, Abu Dhabi, and the wider GCC. As this model is discontinued, availability and lead times are confirmed directly on the quotation. The team can also recommend the current successor model if preferred. All units include manufacturer-backed warranty and after-sales support.
Does this display include an operating system?
No. The 86X1EE features an operating system-free design to enhance security. It is intended to interface with external computer modules, allowing flexible connection to Google or Windows platforms as needed. This approach ensures that sensitive data remains protected within the connected host system rather than the display itself.
Can I get a demonstration before buying?
Yes. SmartScreens.ae offers free on-site or virtual demonstrations for UAE buyers. This allows IT managers and procurement teams to verify the 40-point touch performance and 4K image quality in your specific environment. Demonstrations are available for clients in Dubai, Abu Dhabi, and Sharjah prior to finalising the procurement quotation.
Is professional installation included?
Yes. The site provides professional installation services for all interactive displays supplied to UAE businesses and government entities. This ensures correct mounting on VESA 1000 x 600 mm brackets and proper cable management. Installation support is part of the comprehensive after-sales service offered across the region.
What ports are available for connectivity?
The unit includes three HDMI inputs, one USB-C port, one OPS slot, one USB 3.0, one USB 2.0, and RS-232 in. Outputs include two touch ports and one audio out. This configuration allows connection to laptops, media players, and external computing modules for versatile deployment in meeting rooms.
How is pricing handled for this product?
Pricing is provided on a quotation basis with a best-price guarantee. The procurement process includes TRN VAT invoicing for UAE businesses and government. You may request a formal quotation from SmartScreens.ae to receive current availability, lead times, and competitive pricing for supply and installation.
