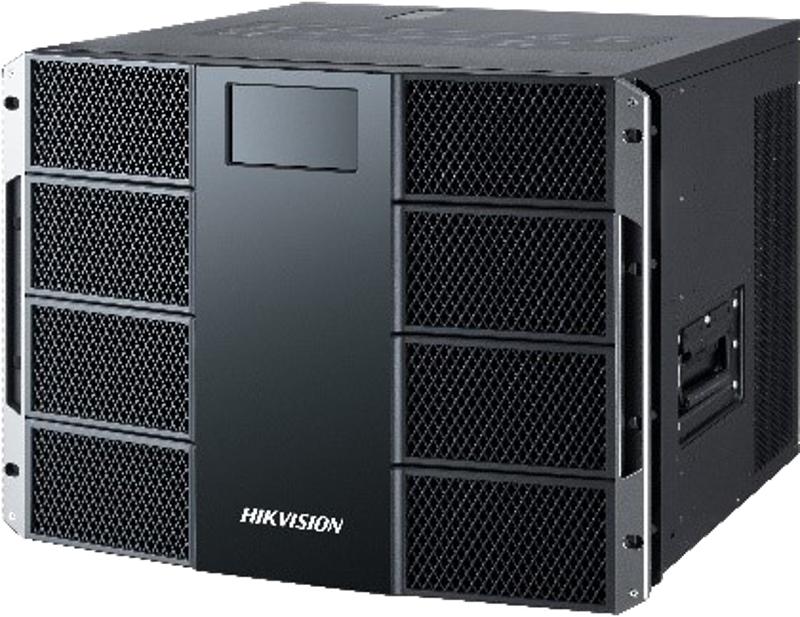

Hikvision Video Wall Controllers DS-C30S-S23(V2) Casing

The Hikvision DS-C30S-S23(V2) is an 8U video wall controller chassis designed for large-scale AV deployments in Dubai and Abu Dhabi. It supports up to eight video walls with hot-swappable service boards and redundant power. SmartScreens.ae supplies this unit with professional installation and VAT invoicing for UAE businesses.

This 8U rack-mounted chassis provides the physical infrastructure for complex video wall systems. Measuring 442 x 354.8 x 447 mm, it houses 22 input and 22 output slots for modular expansion. The design includes redundant power supplies and six intelligent fans for thermal management in demanding UAE environments.

The system handles diverse signal inputs including VGA, DVI, HDMI, 4K HDMI, 4K DP, and network cameras via ONVIF or RTSP. It ensures synchronized output across all displays using frame synchronization technology to eliminate tearing or seams. Audio support includes composite and independent inputs with 16-bit, 48K Hz sampling for clear sound.

Key Features

• Modular Expansion - Features 22 input and 22 output slots with hot-swappable service boards for easy maintenance and system growth.
• Redundant Power - Includes redundant power supply design and six intelligent fans for automatic temperature adjustment in enclosed racks.
• High-Definition Input - Accepts VGA, DVI, HDMI, 4K HDMI, 4K DP, and network camera signals with YUV 4:4:4 lossless sampling support.
• Synchronized Output - Delivers DVI, HDMI, and 4K HDMI outputs via LED controller boards with frame synchronization to prevent image tearing.
• Network Integration - Supports decoding of network camera and NVR streams using installed decoding boards with main stream encoding capabilities.
• Physical Dimensions - Weighs ≤ 57.54 kg net and operates on 100–240 V AC, 50/60 Hz power within 0 to 50 °C temperatures.
• Status Monitoring - Provides a 4.3-inch non-touch status screen (480 x 272) and indicator lights for real-time device operation visibility.
• Audio Capabilities - Supports composite and independent audio input/output with 16-bit, 48K Hz sampling for high-quality sound transmission.

SmartScreens.ae offers this hardware as part of a complete procurement solution for government and enterprise clients. We provide quotation-based pricing with best-price guarantees and TRN VAT invoicing for UAE entities. Our team handles delivery across Dubai, Sharjah, and the wider GCC, along with manufacturer-backed warranty and after-sales support.

Ideal for: Large-scale control rooms, broadcast studios, and corporate command centers in Dubai and Abu Dhabi requiring reliable, multi-source video wall processing.

Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.

Hikvision Video Wall Controllers DS-C30S-S23(V2) Casing specifications

Operating Humidity

10% to 90% RH

Operating Temperature

0 to 50 °C

Power Consumption

≤ 1000 W (full configuration)

Product Dimensions

442 x 354.8 x 447 mm

Product Weight

≤ 57.54 kg (net, full configuration)

Model

DS-C30S-S23

Product Type

Video Wall Controller Chassis

Key Features

22 input and 22 output slots, hot-swappable service boards, redundant power, dual-device hot backup, YUV 4:4:4 sampling, up to 8 video walls

Display

4.3-inch non-touch status screen, 480 x 272

Inputs

VGA, DVI, HDMI, 4K HDMI, 4K DP, network cameras, NVRs

Input Voltage

100–240 V AC, 50/60 Hz

Ports

Ethernet 10/100/1000 Mbps x 2, console (RJ-45) x 2, RS-485/RS-232 x 1, USB 2.0 x 2

Protocols

SDK, RTSP, ONVIF

Rack Units

8U
