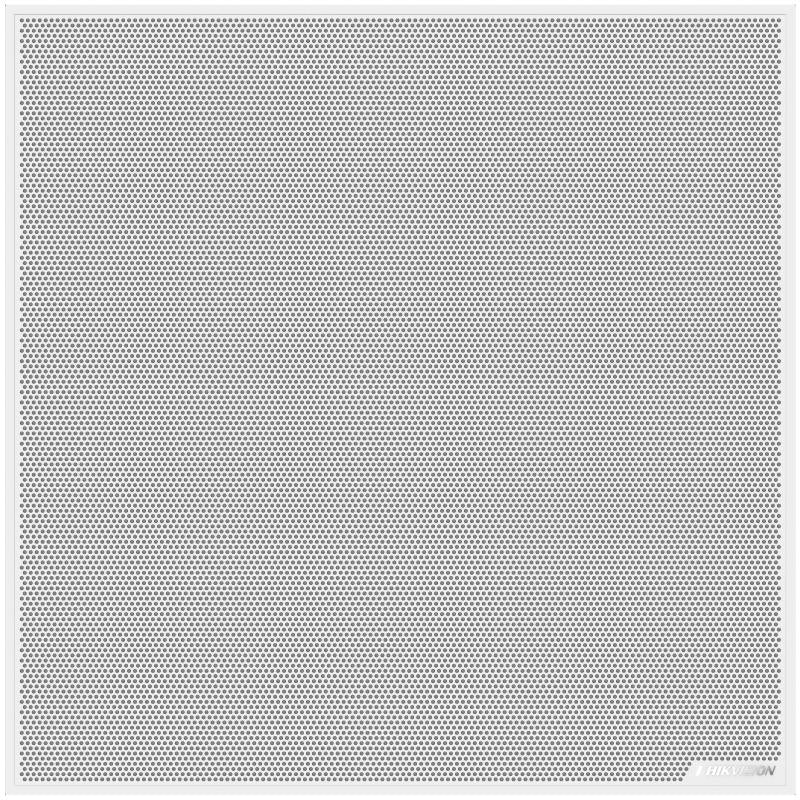

Hikvision Pro Microphone 128-Mic Ceiling Array – DS-QAPMCU128
- 128-mic array
- 8 audio zones
- 48 kHz/24-bit
- AES67 network audio
- AEC
- AGC
The Hikvision DS-QAPMCU128 is a 128-microphone ceiling array designed for video conferencing and sound reinforcement in UAE boardrooms. It captures audio up to 5 meters with AES67 network transmission and PoE power, ensuring clear voice pickup for Dubai and Abu Dhabi meeting spaces.
Engineered for professional environments, the Hikvision DS-QAPMCU128 utilises a 128-mic array to deliver high-fidelity audio across eight independent collection zones. This architecture allows facilities managers to prioritize specific areas, ensuring that voices in meeting rooms across Dubai or Sharjah are captured accurately without interference from ambient noise.
The device supports 48 kHz/24-bit resolution and AES67 protocols for low-latency, synchronized network audio transmission. With 8 audio zones, administrators can adjust priorities to suit room layouts, while intelligent noise reduction algorithms handle transient interference, maintaining clarity during hybrid conferences in Abu Dhabi offices.
Key Features
- 128-Mic Array Coverage - Captures audio up to 3 m for reinforcement and 5 m for video conferencing with 128 microphones.
- 8 Audio Zones - Eight independent collection zones allow priority adjustment for precise voice pickup in large rooms.
- AES67 Network Audio - Supports AES67 protocol for low-latency, high-synchronization transmission over standard IP networks.
- PoE Power Support - Delivers both power and audio through a single network cable, simplifying wiring for ceiling mounts.
- Analog I/O Ports - Includes 1 LINE IN and 2 LINE OUT ports with phoenix terminals for integration with existing audio systems.
- Advanced Audio Processing - Features AEC, AGC, noise gates, and beam control algorithms to reduce environmental noise interference.
Installation is simplified by Power over Ethernet (PoE) capabilities and a compact 594 x 594 mm form factor that fits standard 600 x 600 mm suspended ceilings. SmartScreens.ae, part of Procure FZE, provides this unit with professional installation and manufacturer-backed warranty support across the UAE, ensuring reliable operation in high-traffic corporate settings.
Ideal for: Boardrooms in Dubai, training centers in Abu Dhabi, and government meeting spaces requiring clear voice pickup for video conferencing and sound reinforcement.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Hikvision Pro Microphone 128-Mic Ceiling Array – DS-QAPMCU128 specifications
- Colour
- White
- Material
- Metal
- Mounting Type
- Ceiling (600 x 600 mm suspended ceiling) or pendant (wall ≥ 60 mm); crossbar bracket, safety rope and lifting rope included
- Audio In
- LINE IN × 1 (analog)
- Audio Out
- LINE OUT × 2 (analog); network output
- Operating Humidity
- Up to 90% RH (non-condensing)
- Operating Temperature
- -10 °C to 50 °C
- Power Consumption
- 24 W maximum (DC 12 V, 2 A)
- Product Dimensions
- 594 x 594 x 55.4 mm
- Model
- DS-QAPMCU128
- Product Type
- Ceiling Microphone Array
- Shipping Weight
- approx. 9.2 kg
- Key Features
- 128-mic array, 8 audio zones, 48 kHz/24-bit, AES67 network audio, AEC, AGC, PoE power and audio, 3 m reinforcement / 5 m conference pickup
- Compatibility
- Audio Assistant Tool on Windows 7 / 8.1 / 10 / 11
- Dynamic Range
- 104 dB
- EQ
- COMP, delay, mixing, ALC, PEQ, noise gate, beam control
- Frequency Response
- 20 Hz to 20 kHz
- Max SPL
- 130 dB SPL (acoustic overload point)
- PoE
- Supported (power and audio over network cable)
- Ports
- RJ45 1000 Mbps × 1; LINE IN × 1; LINE OUT × 2 (green phoenix terminals, network output)
- Protocols
- AES67, TCP/IP, RTP, RTSP, HTTP/HTTPS, NTP, IEEE 1588
- Sensitivity
- -38 dBV
- Signal-to-Noise Ratio
- 68 dB
- THD
- < 1%
- Microphone
- 128-mic array; 8 audio collection zones
- Pickup Range
- 3 m sound reinforcement; 5 m video conference
Need a quotation or bulk pricing? Use Request Best Price above or message our sales team on WhatsApp.
Frequently Asked Questions
Is the Hikvision DS-QAPMCU128 available for purchase in the UAE?
Yes, SmartScreens.ae supplies this microphone across Dubai, Abu Dhabi, and the wider GCC. We provide quotation-based pricing for UAE businesses and government entities, including TRN VAT invoicing and compliance documentation for enterprise procurement.
Does SmartScreens.ae offer installation services for this ceiling array?
Yes, we provide professional installation services for the DS-QAPMCU128 across the UAE. Our team handles mounting in standard suspended ceilings or via pendant brackets, ensuring secure setup and configuration before handover.
What is the maximum pickup range for video conferencing?
The device provides a 5 m pickup radius for video conferencing applications. For sound reinforcement purposes, the effective radius is 3 m. This range supports clear voice capture in typical UAE meeting rooms.
Can this microphone be used with existing analog audio systems?
Yes, it includes one LINE IN and two LINE OUT analog interfaces. These allow integration with legacy audio equipment, bridging the network-based AES67 audio with traditional analog setups in older UAE office infrastructure.
Is a demonstration available before buying?
Yes, SmartScreens.ae offers free on-site or virtual demonstrations for the DS-QAPMCU128. This allows your IT or facilities team to verify audio quality and zone settings in your specific Dubai or Abu Dhabi environment prior to purchase.
What warranty coverage is provided?
We provide manufacturer-backed warranty and after-sales support across the UAE. As an authorised reseller, we ensure that any technical issues are addressed with genuine support channels, maintaining your system's reliability.
