Hikvision OPS Module 16S5 – DS-D5AC13T7-16S5
- Ultra fine touch for faster interaction
- 4K UHD clarity for modern spaces
- Multiple connectivity options

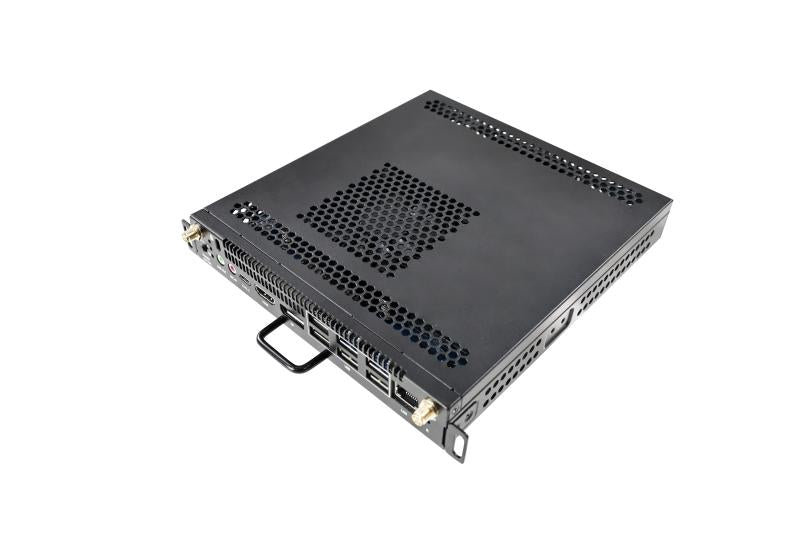

The Hikvision DS-D5AC13T7-16S5 is an OPS computer module designed for interactive flat panels. It features an Intel Core i7-13620H processor, 16 GB RAM, and Windows 11 Enterprise. SmartScreens.ae supplies this accessory to IT managers and procurement teams in Dubai, Abu Dhabi, and Sharjah with professional support.
This OPS module provides a compact computing solution for interactive displays in UAE offices and schools. Powered by a 10-core Intel Core i7-13620H processor, it handles multitasking efficiently. The system includes 16 GB of RAM and a 512 GB storage drive for fast application loading. It runs Windows 11 Enterprise, ensuring stable performance for daily business operations.
Connectivity is handled via built-in Wi-Fi 6 and Bluetooth 5.2, alongside an RJ45 Ethernet port. Video output options include one HDMI 1.4 port and one DisplayPort 1.2 interface. Data transfer is supported by four USB 3.0 ports, two USB 2.0 ports, and one USB-C port. A TPM 2.0 chip adds hardware-level security for sensitive organizational data.
Key Features
- Processing Power - Intel Core i7-13620H processor with 10 cores and up to 4.9 GHz turbo frequency.
- Memory and Storage - 16 GB RAM and 512 GB storage for efficient multitasking and data retention.
- Operating System - Pre-installed Windows 11 Enterprise for secure and stable interactive display operation.
- Network Connectivity - Built-in Wi-Fi 6 (802.11ax) and Bluetooth 5.2 for wireless peripherals and internet.
- Video Outputs - One HDMI 1.4 port and one DisplayPort 1.2 interface for external display connections.
- Data Ports - Four USB 3.0 ports, two USB 2.0 ports, and one USB-C port for device connectivity.
- Security Features - Integrated TPM 2.0 module to protect system integrity and secure sensitive information.
- Physical Dimensions - Compact design measuring 195 x 30 x 180 mm with a black finish.
SmartScreens.ae offers quotation-based pricing for this Hikvision accessory across the UAE. We provide procurement-ready documentation, including TRN VAT invoices for government and enterprise buyers. Professional installation services are available in Dubai, Abu Dhabi, and Sharjah. We also arrange free on-site or virtual demonstrations to verify compatibility with your existing AV infrastructure before purchase.
Ideal for: Interactive flat panels in corporate boardrooms, UAE training centers, and government meeting rooms requiring reliable OPS computing.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Hikvision OPS Module 16S5 – DS-D5AC13T7-16S5 specifications
- Colour
- Black
- Audio In
- Audio in x 1
- Audio Out
- Audio out x 1
- Bluetooth
- Bluetooth 5.2
- Processor
- Intel Core i7-13620H, 10 cores, 2.4 GHz base, 4.9 GHz turbo
- DisplayPort
- DisplayPort 1.2 x 1
- Ethernet (RJ45)
- RJ45, 10/100/1000 Mbps
- Graphics
- Intel UHD Graphics (13th Gen)
- HDMI Output
- HDMI 1.4 x 1
- Operating Humidity
- 10% to 90% RH
- Operating Temperature
- 0 to 40 °C
- Operating System
- Windows 11
- Power Consumption
- 90 W (maximum)
- Standby Power
- 0.5 W
- Product Dimensions
- 195 x 30 x 180 mm
- RAM
- 16 GB (2 x 8 GB)
- Storage
- 512 GB
- USB-C
- USB-C x 1
- USB Ports
- USB 3.0 x 4, USB 2.0 x 2
- Wi-Fi
- Wi-Fi 6 (802.11ax)
- Model
- DS-D5AC13T7-16S5
- Product Type
- OPS Computer Module
- Antenna
- 2 antennas
- Input Voltage
- 12-19 V DC
- Security Features
- TPM 2.0
- Storage Conditions
- -20 to 60 °C; 10% to 90% RH
Need a quotation or bulk pricing? Use Request Best Price above or message our sales team on WhatsApp.
Frequently Asked Questions
Can SmartScreens.ae supply the Hikvision DS-D5AC13T7-16S5 in the UAE?
Yes. We supply this OPS module across Dubai, Abu Dhabi, and Sharjah. We provide quotation-based pricing and all necessary compliance documentation for UAE enterprise and government procurement processes.
Does this module support Windows 11?
Yes. The DS-D5AC13T7-16S5 comes with Windows 11 Enterprise pre-installed. It includes TPM 2.0 support and Intel UHD Graphics for full compatibility with modern interactive display software.
Is professional installation available for this accessory?
Yes. SmartScreens.ae offers professional installation services for this OPS module in Dubai, Abu Dhabi, and Sharjah. We ensure proper integration with your existing interactive flat panel hardware.
Can I request a demonstration before buying?
Yes. We provide free on-site or virtual demonstrations of this module. This allows you to verify performance and compatibility with your specific interactive display model before finalizing the purchase.
What are the video output options?
The module includes one HDMI 1.4 port and one DisplayPort 1.2 interface. These allow you to connect secondary displays or capture cards as needed for your AV setup.
What is the maximum power consumption?
The maximum power consumption is 90 W. It operates on 12-19 V DC input and consumes only 0.5 W in standby mode, ensuring efficient energy use during idle periods.
