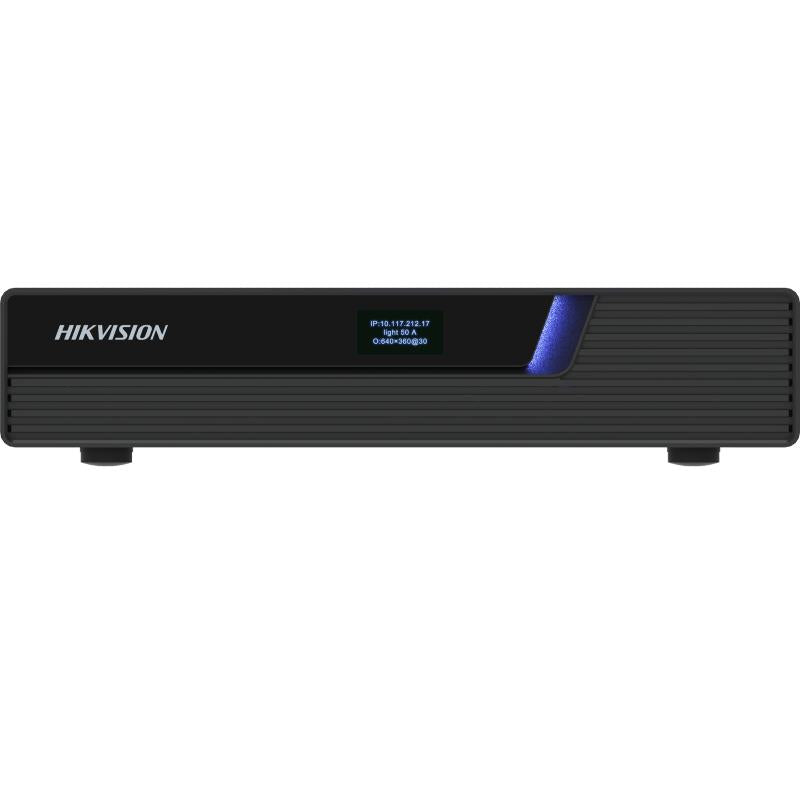

Hikvision KVM DS-C80K-01HI/4K 4K HDMI Input Node
- KVM input node
- 4K 60 Hz HDMI 2.0 input
- YUV 4:4:4 processing
- Keyboard delay within 10 ms
- PoE 802.3at
- External power backup
The Hikvision DS-C80K-01HI/4K is a 4K 60Hz HDMI input node for distributed KVM systems. It processes YUV 444 signals with under 10ms keyboard delay. SmartScreens.ae supplies this half-width rack unit for UAE control rooms and boardrooms.
This input node captures 4K UHD signals at 60Hz and processes them using YUV 444 sampling to ensure high-fidelity color restoration. The device supports both unicast and multicast switching protocols, allowing flexible integration into existing network infrastructures. It features a dual-engine system with DSP and FPGA processing for efficient signal handling.
The unit connects via a Gigabit electrical RJ-45 port or a Gigabit SFP optical port, supporting hot backup between interfaces. It draws power through PoE (IEEE 802.3at) or an external 110–240 V AC adapter. An OLED status screen provides local visibility of configuration and running status without needing remote access.
Key Features
- 4K HDMI Connectivity - Accepts one HDMI 2.0 input and provides a loop-out port for 3840 x 2160 resolution at 60Hz refresh rate.
- Low Latency Control - Achieves keyboard operation delays within 10 ms using a dual-engine shallow compression system for responsive remote control.
- Dual Network Access - Equipped with one 1000 Mbps RJ-45 port and one Gigabit SFP optical port for flexible wired or fiber network integration.
- PoE and Backup Power - Supports IEEE 802.3at PoE power delivery and includes an external power input option for reliable continuous operation.
- Compact Rack Design - Features a half-width form factor measuring 210 x 42 x 180 mm, allowing two units to occupy the width of one standard rack slot.
- Embedded Audio Processing - Handles stereo 24-bit / 48 kHz audio via HDMI embedding or 3.5 mm inputs, supporting G.711 and AAC-LC codecs.
Designed as a half-width rack unit, it saves space in standard server racks while maintaining independent operation. The decentralized architecture ensures that single-node failure does not disrupt the wider system. It supports remote host power control for Windows, Linux, Unix, and Kylin operating environments.
Ideal for: UAE government meeting rooms, Dubai data centers, and security operations where low-latency 4K signal distribution and redundant network paths are required.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Hikvision KVM DS-C80K-01HI/4K 4K HDMI Input Node specifications
- Mounting Type
- Rack, planar or magnetic (optional)
- In the Box
- KVM 4K HDMI input node, 2 × USB cable, power cord, mounting bracket, connecting bracket, safety information manual
- Ethernet (RJ45)
- 1 × 1000 Mbps (RJ-45), 1 × Gigabit SFP optical
- Operating Humidity
- 0% to 95%
- Operating Temperature
- 0 to 50 °C
- Power Consumption
- 30 W (maximum)
- Product Dimensions
- 210 x 42 x 180 mm (W x H x D)
- Product Weight
- 1.76 kg
- Refresh Rate
- 60 Hz
- Resolution
- 4K UHD
- Serial Port
- RS-232 × 1, RS-485 × 1 (Phoenix terminal)
- USB Ports
- USB 2.0 × 3
- Model
- DS-C80K-01HI/4K
- Product Type
- KVM 4K HDMI Input Node
- Key Features
- KVM input node, 4K 60 Hz HDMI 2.0 input, YUV 4:4:4 processing, keyboard delay within 10 ms, PoE 802.3at, external power backup, OLED status screen, half-width rack design
- Audio
- Stereo, 24-bit / 48 kHz, HDMI embedded and 3.5 mm input
- Audio Codecs
- G.711A, G.711U, G.722.1, AAC-LC
- Display
- OLED 128 x 64 dot-matrix status screen
- Input Voltage
- 110–240 V AC, 0.7 A
- PoE
- IEEE 802.3at
- Ports
- HDMI 2.0 in × 1, HDMI 2.0 loop out × 1, audio in × 1 and audio out × 1 (3.5 mm), debug console × 1
- Protocols
- Unicast and multicast switching
Need a quotation or bulk pricing? Use Request Best Price above or message our sales team on WhatsApp.
Frequently Asked Questions
What is the maximum input resolution supported by this node?
It supports 4K UHD input at 3840 x 2160 resolution with a 60 Hz refresh rate, ensuring high-quality image fidelity for detailed visual content.
How is power supplied to the DS-C80K-01HI/4K?
The device supports IEEE 802.3at PoE for power over Ethernet or can be connected to a 110–240 V AC power source using the included power cord.
Can I buy this KVM input node in the UAE?
Yes, SmartScreens.ae is an authorised reseller supplying this model across Dubai, Abu Dhabi, and Sharjah. We provide quotation-based pricing with TRN VAT invoicing for UAE entities.
Does the unit support remote host power management?
Yes, the system allows for remote power-on and power-off commands for connected hosts running Windows, Linux, Unix, or Kylin operating systems.
Is a demonstration available before purchase?
We offer free on-site or virtual demonstrations to show the node’s integration capabilities within your specific network environment before you finalize the procurement.
What mounting options are included?
The package includes a mounting bracket and connecting bracket for standard rack installation. It also supports planar or magnetic mounting for flexible deployment.
