Hikvision 75-inch 4K Interactive Display – DS-D5A75RB/B3
- UHD 4K
- IPS panel
- Built-in 4K camera
- 8-array microphone
- 50-point touch
- Android 16 with optional Windows OPS

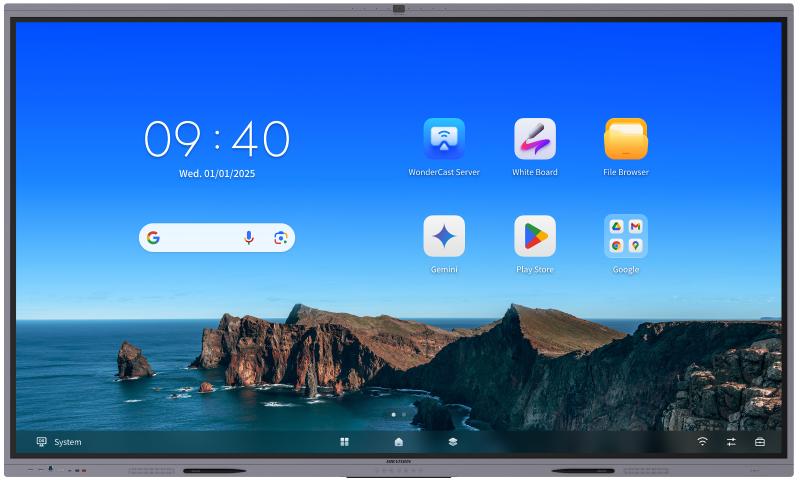

The Hikvision DS-D5A75RB/B3 is a 75-inch 4K UHD interactive flat panel designed for collaborative workspaces. Featuring a 50-point touch display, built-in 4K camera, and Android 16 system, it supports seamless education and business meetings. This display is supplied by SmartScreens.ae with professional installation and support across the UAE.
The Hikvision DS-D5A75RB/B3 delivers 4K UHD resolution on a 75-inch IPS panel with 400 nits brightness and a 178-degree viewing angle. The display uses DLED backlighting and supports 10-bit color depth, ensuring clear visuals for presentations. The anti-glare tempered glass surface provides 50-point multi-touch with 0.5 mm accuracy, suitable for high-traffic corporate and educational environments.
Operating on Android 16 with a quad-core processor and 8 GB RAM, this interactive display handles multiple tasks efficiently. It includes a built-in 48 MP camera with 93.4-degree field of view and an 8-array microphone for 12-meter voice capture. Connectivity options feature Wi-Fi 6, Bluetooth 5.4, and an optional OPS slot for Windows, allowing flexible system configurations for UAE institutions.
Key Features
- 4K UHD Display - The 75-inch IPS panel offers 3840 x 2160 resolution with 400 nits brightness and 178-degree viewing angles.
- 50-Point Touch - Multi-touch interface with 0.5 mm accuracy and 5 ms response time for smooth writing and navigation.
- Android 16 System - Built-in Android 16 OS with 8 GB RAM and 128 GB storage, plus an optional OPS slot for Windows.
- 4K Camera Module - Integrated 48 MP photo sensor and 8 MP video camera with 93.4-degree diagonal field of view.
- 8-Arrary Microphone - Omni-directional microphone array captures voice up to 12 meters with echo reduction and noise cancellation.
- Connectivity Options - Includes Wi-Fi 6, Bluetooth 5.4, HDMI 2.1 inputs, USB-C charging, and a built-in network switch chip.
- Built-in Speakers - Dual 20 W speakers provide audio output for presentations and video conferencing without external equipment.
- EDLA Certification - Android 16 system is EDLA certified, ensuring compatibility with Google services and enterprise security standards.
Installation is supported by wall mounts with 600 x 400 mm VESA compatibility and integrated speakers for immediate use. The unit includes a remote control, touch pen, and power cable, weighing 41.88 kg. SmartScreens.ae, an authorised reseller, provides procurement-ready quotations with TRN VAT invoicing, ensuring compliance for government and enterprise buyers in Dubai, Abu Dhabi, and Sharjah.
Ideal for UAE boardrooms, classrooms, and meeting rooms requiring integrated video conferencing and interactive collaboration.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Hikvision 75-inch 4K Interactive Display – DS-D5A75RB/B3 specifications
- Mounting Type
- Wall mount
- In the Box
- Wall mount bracket, hook, user manual, touch pen, packing list, power cable, remote control
- Backlight
- DLED
- Bluetooth
- Bluetooth 5.4
- Brightness
- 400 cd/m²
- Built-in Camera
- Yes
- Camera
- 48 MP photo sensor, 8 MP video up to 4K, 93.4° diagonal field of view
- Processor
- Quad-core Cortex-A72 @ 2.2 GHz + quad-core Cortex-A53 @ 1.8 GHz
- Colour Depth
- 10 bit (8 bit + FRC)
- Ethernet (RJ45)
- 2 × LAN (1000 Mbps)
- Operating Humidity
- 10% to 90% RH
- Operating Temperature
- 0 to 40 °C
- OPS Slot
- Optional OPS module (195 x 30 x 180 mm) for Windows
- Operating System
- Android 16
- Power Consumption
- 189 W (average)
- Standby Power
- ≤ 0.5 W
- Product Dimensions
- 1710 x 1035 x 96 mm
- Product Weight
- 41.88 kg
- RAM
- 8 GB
- Refresh Rate
- 60 Hz
- Resolution
- 4K UHD
- Screen Size
- 75"
- Serial Port
- RS232 × 1
- Speaker Output
- 2 × 20 W
- Storage
- 128 GB
- Surface Protection
- 9H pencil hardness, anti-glare tempered glass, 25% haze
- Touch Accuracy
- ±0.5 mm
- Touch Points
- 50-point multi-touch
- Touch Response Time
- ≤ 5 ms
- Touch USB Ports
- TOUCH-USB 2.0 × 2 (front and rear)
- USB-C
- Type-C × 1 (front, USB 3.0, 15 W charging)
- USB Ports
- USB 3.0 × 2 (front), USB 2.0 × 2 (rear)
- Viewing Angle
- 178° (H) / 178° (V)
- VESA Mount
- 600 x 400 mm
- Wi-Fi
- Wi-Fi 6 (802.11ax), 2.4 GHz / 5 GHz, 2 × 2 MIMO
- Model
- DS-D5A75RB/B3
- Product Type
- Interactive Flat Panel
- Key Features
- UHD 4K, IPS panel, built-in 4K camera, 8-array microphone, 50-point touch, Android 16 with optional Windows OPS, built-in network switch, multi-button front panel, EDLA certified
- Aspect Ratio
- 16:9
- Color Gamut
- 72% NTSC
- Contrast Ratio
- 1,200:1 static (15,000:1 dynamic)
- Input Voltage
- 100–240 V AC, 50/60 Hz
- Panel Technology
- IPS
- Ports
- HDMI 2.1 In × 3 (one front, two rear), Audio In × 1, Audio Out × 1, TF card slot × 1
- Response Time
- 5 ms
- Microphone
- Omni-directional 8-array, 12 m voice distance, echo reduction and noise cancellation
- Certifications
- EDLA
- Connectivity Options
- Wi-Fi 6, Bluetooth 5.4, 13.56 MHz NFC card reader
Frequently Asked Questions
Can I buy the Hikvision DS-D5A75RB/B3 in the UAE?
Yes, SmartScreens.ae supplies the Hikvision DS-D5A75RB/B3 across Dubai, Abu Dhabi, and Sharjah. We provide quotation-based pricing with best-price guarantees and TRN VAT invoicing for UAE businesses and government entities.
Does this display support Windows?
Yes, the unit includes an optional OPS slot (195 x 30 x 180 mm) for a Windows module. The built-in Android 16 system also runs video conference software, but Windows is recommended for advanced applications.
Is professional installation included?
SmartScreens.ae offers professional installation services for this 75-inch panel. We ensure secure wall mounting using the 600 x 400 mm VESA pattern and provide after-sales support across the UAE.
Can I request a demonstration?
Yes, we offer free on-site or virtual demonstrations before purchase. This allows your team to test the 50-point touch responsiveness, 4K camera quality, and Android 16 interface in your specific environment.
What is the touch accuracy?
The display features 50-point multi-touch with an accuracy of ±0.5 mm and a response time of ≤ 5 ms. The anti-glare tempered glass surface ensures consistent performance in bright UAE classrooms.
Does it have built-in networking?
Yes, the display includes a built-in network switch chip, eliminating the need for an external switch. It also features dual 1000 Mbps LAN ports, Wi-Fi 6, and Bluetooth 5.4 for flexible connectivity.
