Hikvision 75-inch 4K Interactive Display – DS-D5A75RB/A3
- UHD 4K
- IPS panel
- 50-point touch
- Android 16 with optional Windows OPS
- Built-in network switch
- Multi-button front panel

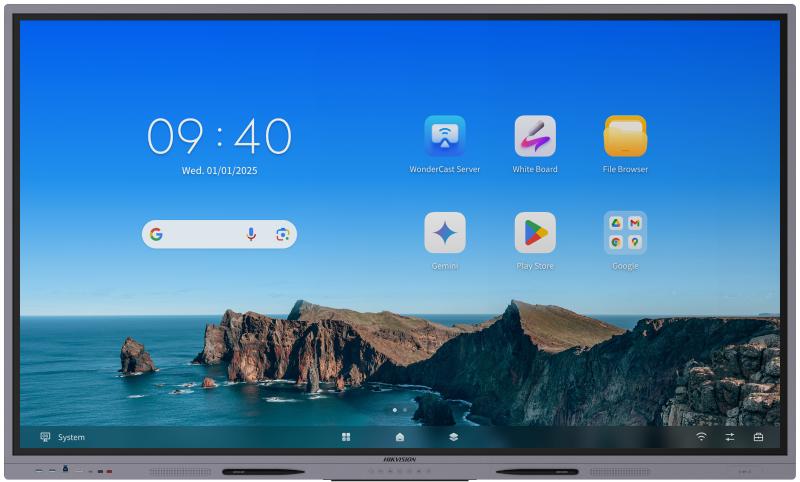

The Hikvision DS-D5A75RB/A3 is a 75-inch 4K UHD interactive flat panel designed for professional and educational environments in the UAE. It features a 50-point multi-touch IPS display, Android 16 operating system, and EDLA certification for secure Google integration. SmartScreens.ae supplies this model with quotation-based pricing, professional installation, and manufacturer-backed warranty support for clients in Dubai, Abu Dhabi, and Sharjah.
This interactive display combines high-visibility visuals with responsive touch technology for collaborative workspaces. The 75-inch IPS panel delivers 4K UHD resolution (3840 x 2160) at 400 nits brightness, ensuring clear content viewing in well-lit UAE offices and classrooms. The anti-glare tempered glass surface protects the screen while maintaining a 178° wide viewing angle, allowing participants to see details accurately from the side of the room.
Running on Android 16 with EDLA certification, the unit provides a secure and familiar interface for daily operations. It includes a quad-core processor, 8 GB RAM, and 128 GB storage for smooth multitasking. For Windows-based applications, an optional OPS module can be installed in the dedicated slot. Connectivity is robust, featuring Wi-Fi 6, Bluetooth 5.4, dual Gigabit LAN ports, and a built-in network switch chip to simplify cabling in meeting rooms.
Key Features
- 4K UHD IPS Display - Provides 3840 x 2160 resolution with 400 nits brightness and 178° viewing angles for clear visibility.
- 50-Point Multi-Touch - Enables precise interaction with 5 ms response time and ±0.5 mm accuracy on an anti-glare surface.
- Android 16 & EDLA - Runs the latest Android OS with Google Play Store certification for secure and reliable app access.
- Advanced Connectivity - Features Wi-Fi 6, Bluetooth 5.4, dual Gigabit LAN, and a built-in network switch for easy integration.
- Optional Windows OPS - Supports an optional 195 x 30 x 180 mm OPS module to add Windows computing capabilities.
- Secure NFC Reader - Includes a 13.56 MHz NFC card reader on the front panel for secure user authentication.
- Robust Ports - Equipped with three HDMI 2.1 inputs, USB-C with 15 W charging, and multiple USB 3.0/2.0 ports.
- Built-in Audio - Features dual 20 W speakers for clear sound output without external audio equipment.
Touch performance is optimized for precision, with a 50-point multi-touch capability and 5 ms response time. The front panel includes a 13.56 MHz NFC card reader, HDMI 2.1 inputs, and USB-C with 15 W charging for convenient device connection. The all-in-one design incorporates intelligent temperature control and a 9H hardness surface for durability. SmartScreens.ae offers free virtual demonstrations and procurement-ready quotations with TRN VAT invoicing for UAE businesses.
Ideal for UAE meeting rooms, smart classrooms, and corporate training centers requiring secure Android-based collaboration and precise multi-user touch interaction.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Hikvision 75-inch 4K Interactive Display – DS-D5A75RB/A3 specifications
- Mounting Type
- Wall mount
- In the Box
- Wall mount bracket, hook, user manual, touch pen, packing list, power cable, remote control
- Backlight
- DLED
- Bluetooth
- Bluetooth 5.4
- Brightness
- 400 cd/m²
- Processor
- Quad-core Cortex-A72 @ 2.2 GHz + quad-core Cortex-A53 @ 1.8 GHz
- Colour Depth
- 10 bit (8 bit + FRC)
- Ethernet (RJ45)
- 2 × LAN (1000 Mbps)
- Operating Humidity
- 10% to 90% RH
- Operating Temperature
- 0 to 40 °C
- OPS Slot
- Optional OPS module (195 x 30 x 180 mm) for Windows
- Operating System
- Android 16
- Power Consumption
- 189 W (average)
- Standby Power
- ≤ 0.5 W
- Product Dimensions
- 1710 x 1017 x 96 mm
- Product Weight
- 41.23 kg
- RAM
- 8 GB
- Refresh Rate
- 60 Hz
- Resolution
- 4K UHD
- Screen Size
- 75"
- Serial Port
- RS232 × 1
- Speaker Output
- 2 × 20 W
- Storage
- 128 GB
- Surface Protection
- 9H pencil hardness, anti-glare tempered glass, 25% haze
- Touch Accuracy
- ±0.5 mm
- Touch Points
- 50-point multi-touch
- Touch Response Time
- ≤ 5 ms
- Touch USB Ports
- TOUCH-USB 2.0 × 2 (front and rear)
- USB-C
- Type-C × 1 (front, USB 3.0, 15 W charging)
- USB Ports
- USB 3.0 × 2 (front), USB 2.0 × 2 (rear)
- Viewing Angle
- 178° (H) / 178° (V)
- VESA Mount
- 600 x 400 mm
- Wi-Fi
- Wi-Fi 6 (802.11ax), 2.4 GHz / 5 GHz, 2 × 2 MIMO
- Model
- DS-D5A75RB/A3
- Product Type
- Interactive Flat Panel
- Key Features
- UHD 4K, IPS panel, 50-point touch, Android 16 with optional Windows OPS, built-in network switch, multi-button front panel, NFC card reader, EDLA certified
- Aspect Ratio
- 16:9
- Color Gamut
- 72% NTSC
- Contrast Ratio
- 1,200:1 static (15,000:1 dynamic)
- Input Voltage
- 100–240 V AC, 50/60 Hz
- Panel Technology
- IPS
- Ports
- HDMI 2.1 In × 3 (one front, two rear), Audio In × 1, Audio Out × 1, TF card slot × 1
- Response Time
- 5 ms
- Certifications
- EDLA
- Connectivity Options
- Wi-Fi 6, Bluetooth 5.4, 13.56 MHz NFC card reader
Frequently Asked Questions
Can I buy the Hikvision DS-D5A75RB/A3 in the UAE?
Yes, SmartScreens.ae supplies this model across Dubai, Abu Dhabi, and Sharjah. We provide quotation-based pricing with a best-price guarantee, TRN VAT invoicing, and professional installation services for government and enterprise clients.
Does this display support Windows operating systems?
It runs Android 16 out of the box. You can add Windows functionality by installing an optional OPS module (195 x 30 x 180 mm) into the dedicated slot, allowing you to run Windows-based video conferencing software.
Is a demonstration available before purchase?
We offer free on-site or virtual demonstrations to help you evaluate the 75-inch 4K display and 50-point touch performance in your specific environment before committing to a procurement order.
What warranty and support is provided?
The product comes with manufacturer-backed warranty and after-sales support across the UAE. SmartScreens.ae assists with compliance documentation and ensures professional installation and ongoing technical assistance for your team.
How many people can interact simultaneously?
The display supports up to 50 points of multi-touch simultaneously, allowing multiple users to write, draw, or navigate on the screen at the same time with high accuracy and low latency.
Is the NFC card reader useful for meeting rooms?
Yes, the built-in 13.56 MHz NFC reader allows users to quickly authenticate or launch apps by tapping their ID cards, streamlining access to secure content and shared resources in corporate or educational settings.
