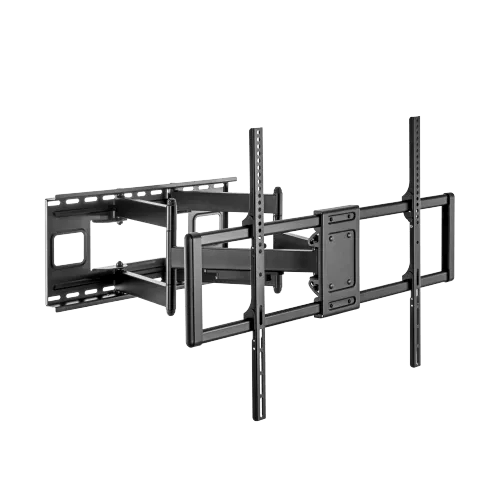

VSYS VS02D-696 Heavy-Duty Full-Motion Wall Mount for 60"–120" Displays, 120 kg

The VSYS VS02D-696 Heavy-Duty Full-Motion Wall Mount for 60"–120" Displays, 120 kg takes articulating movement into territory most arms cannot reach. It is rated for flat and curved commercial panels from 60" up to 120" weighing as much as 120 kg, on VESA patterns as wide as 900x600 mm. The arm travels from 75 mm folded out to 703 mm, which is close to three-quarters of a metre of reach, so a huge display can be pulled clear of a wall recess and turned 60 degrees either way to face a different part of the room. A quick-release latch locks the panel onto the arm and frees it again for servicing without touching the wall bracket, and a free-tilting screen with plus or minus 5 degrees of levelling means you can true up the picture long after the installers have gone.

Key Features

• 120 kg Load Rating - Strength-tested to three times its rated capacity, sized for the heaviest commercial panels.
• 60"–120" Screen Range - Handles auditorium, boardroom and command-centre displays that other arms simply cannot take.
• 703 mm Maximum Reach - Extends from 75 mm folded to 703 mm, enough to clear deep recesses and joinery returns.
• Swivel 60 Degrees Each Way - Angle a very large screen toward a second viewing zone without moving the room around it.
• Free-Tilting Screen, +5 to -15 Degrees - Smooth downward angle for displays mounted above seated eye level.
• Quick-Release Latch - Lock or free the display for cleaning, servicing or repositioning without unbolting the wall plate.
• VESA 200x200 mm to 900x600 mm - Maximum mounting hole spread of 910 x 610 mm covers the largest commercial patterns.
• Powder-Coated Steel Build - Heavy-gauge steel throughout with a hard-wearing finish for permanent installation.
• Plus or Minus 5 Degree Levelling - A wider levelling window than smaller arms, useful across a long panel.
• Dual-Stud Wall Plate - Spans 406 mm, 450 mm or 600 mm centres, or fixes to solid concrete and block.

Everything about this mount is dictated by the physics of a 120 kg panel on 703 mm of reach. That combination generates a lot of leverage, which is why the arm is heavy-gauge powder-coated steel, why the plate spans two studs, and why the capacity is verified at three times the rating. In service, the quick-release latch is what facilities teams appreciate: a 100-inch screen can be freed and taken down for a panel swap without disturbing a wall fixing that took two people and a lift to get right. Specify it for a command and control room where one large display serves several operator positions, or for an auditorium screen that must turn toward the stage during rehearsals.

Ideal for: offices, retail, hospitality and education across Dubai, Abu Dhabi, Sharjah and the GCC.
