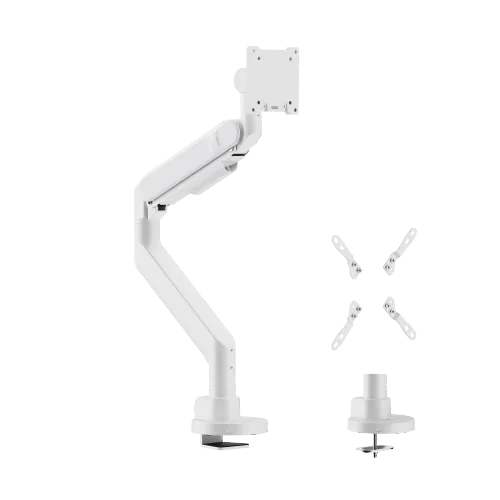

VSYS VMAD-C012 Heavy-Duty Gas-Spring Monitor Arm for 24"–57" Monitors, 27 kg

The VSYS VMAD-C012 Heavy-Duty Gas-Spring Monitor Arm for 24"–57" Monitors, 27 kg is the ideal solution once your display has outgrown every arm on the shortlist. Ultrawide and super-ultrawide panels have quietly reached 57 inches and well past 20 kg, and a conventional mechanical spring simply cannot hold that mass smoothly. This one uses a substantial internal gas spring rated to 27 kg for flat panels and 22 kg for curved ones, so a very large screen still moves under fingertip pressure and then stays exactly where you left it — no sag by mid-afternoon, no two-handed wrestling. Movement is genuinely full-motion: tilt from +60 to -20 degrees, swivel plus or minus 90 degrees, rotation plus or minus 90 degrees and a 370 to 660 mm height range. A detachable VESA plate turns hanging a 27 kg monitor into a one-person job. Serious hardware for serious screens.

Key Features

• 27 kg Gas-Spring Capacity - Rated 2 to 27 kg for flat panels and 2 to 22 kg for curved, well beyond the limits of standard desk arms.
• Fits 24-Inch to 57-Inch Monitors - Purpose-built for oversized, ultrawide and curved displays rather than adapted from a small-screen design.
• Wide Tilt Range, +60 to -20 Degrees - An unusually generous upward tilt for standing-desk use and glare control on a very tall panel.
• Height Range 370 to 660 mm - Nearly 300 mm of travel positioned high enough to suit large screens on both sitting and standing desks.
• Swivel and Rotation to 90 Degrees - Angle the screen toward a colleague, or turn it fully into portrait for long-form documents and code.
• Detachable VESA Plate - Fit the plate to the monitor first, then click the whole display onto the arm — a safe one-person install even at 27 kg.
• VESA up to 200x200 mm - Supports 75x75, 100x100, 100x200, 200x100 and 200x200 mm, the wide patterns large panels actually use.
• Integrated Rotation Stop - Prevents a big screen swinging into a wall, partition or the monitor next to it.
• Desk Clamp and Grommet Mount Supplied - Clamp for 10 to 45 mm desktops, grommet mount for 10 to 40 mm holes, both in the box.
• Integrated Cable Channel - Keeps the thicker power and DisplayPort cables large monitors need tidy through the full range of motion.
• RoHS Compliant Steel and Aluminium - Powder-coated in matte black or matte white.

The move to a single very large screen is now common in exactly the roles that used to run two or three, which is why the 27 kg gas spring keeps coming up in specifications. Trading floors and finance desks put a 49-inch ultrawide where a dual setup used to sit; video editing and broadcast suites need a large calibrated panel that can be angled precisely; engineering and CAD users want the screen pulled close for detail work and pushed back for review. In every case the display is too heavy for a standard arm and too valuable to leave on a wobbly pedestal. The detachable VESA plate and rotation stop are what make it practical to install and safe to live with in a dense office. Picture a 49-inch ultrawide floating above a trading desk, or a large curved panel on an executive workstation.

Ideal for: trading and finance desks, video editing and broadcast suites, engineering and CAD workstations, control rooms, executive offices and design studios across Dubai, Abu Dhabi, Sharjah and the GCC.
