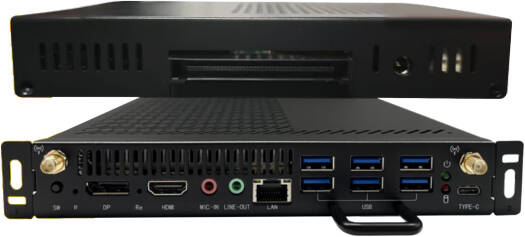

EQ OPS Module, Intel Core i7-1360P Processor, 32GB RAM, 1TB SSD, Supports 3840x2160 @ 60Hz, Intel Iris Xe Graphics, Windows 11 Pro, Black | EQ-OPS-I7
- Ultra fine touch for faster interaction
- 4K UHD clarity for modern spaces
- Multiple connectivity options
Specifications
| CPU | Intel i7-1360P (2.2GHz–5.0GHz, 12 cores, 16 threads) |
| BIOS | UEFI BIOS |
| RAM | 32 GB, 2x SO-DIMM DDR4 (2666/3200MHz), Max 64GB |
| ROM | 1 TB, 1x M.2 2280 (NVMe & SATA dual protocols) |
| HDMI Output | Supports 3840×2160 @ 60Hz |
| OPS-HDMI | 80PIN Socket HDMI (3840×2160 @ 60Hz) |
| LAN | Realtek Gigabit Ethernet (10/100/1000Mbps) |
| Cooling | Supports automatic fan adjustment |
| USB Ports | 2x USB 3.0, 4x USB 2.0, 1x Type-C |
| Dimensions | 180 x 120 x 30 mm |
| Humidity | 5% ~ 95% (non-condensing) |
| Chipset | SOC |
| Graphics | Intel Iris® Xe Graphics |
| DP Output | Supports 3840×2160 @ 60Hz |
| Audio Chip | ACL 897 HD audio, Line-out & Mic support |
| Wi-Fi & BT | 1x M.2 2230 slot for Wi-Fi + Bluetooth |
| Power Controls | 1x Power button, 1x Restore button |
| Power Input | DC 19V 4.74A |
| Operating Temp | 0°C ~ 45°C |
