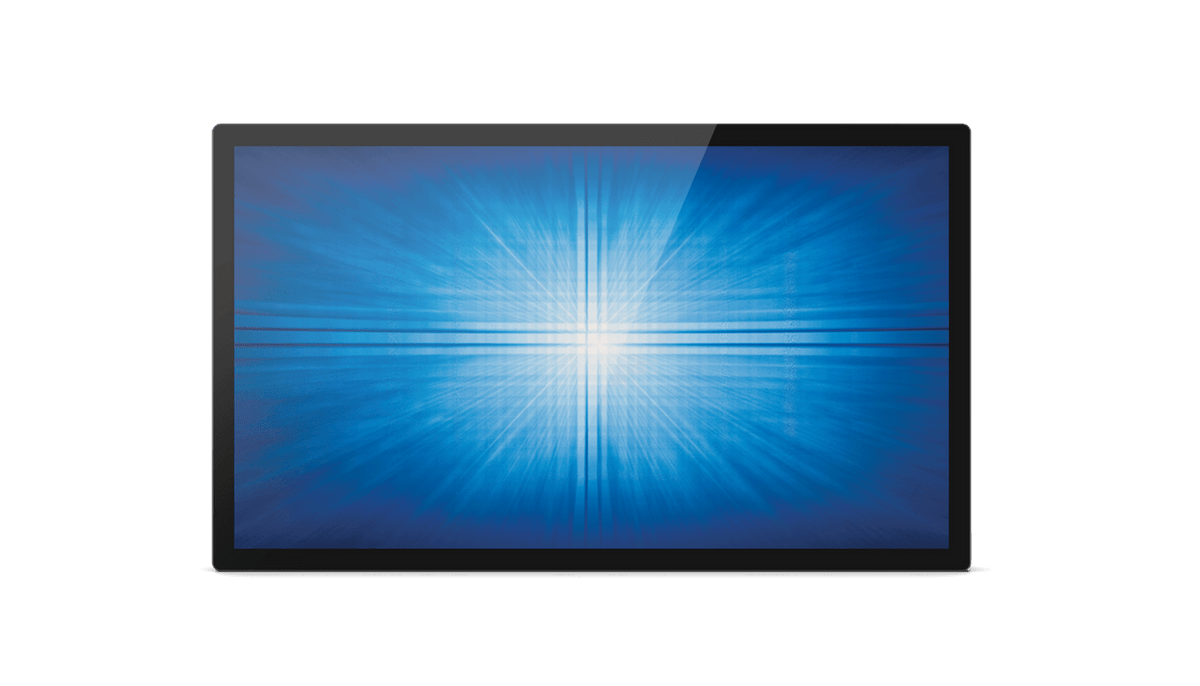

Elo IDS 4343L 43-inch Open Frame Touchscreen Display

The Elo 4343L is a 43-inch open-frame digital signage display designed for integrated kiosk and built-in installations. This model has been replaced by the 4363L. SmartScreens.ae provides current Elo open-frame solutions for UAE businesses requiring robust, 24/7 capable commercial displays.

The Elo 4343L features a 43-inch LCD panel delivering 1920 x 1080 resolution with 450 nits brightness. It utilizes TouchPro projected capacitive technology for accurate 12-point multi-touch input. The unit supports 24-hour daily operation with Energy Star 7.0 certification for efficient power management in continuous use environments.

Designed for integration, this open-frame unit exceeds UL ball-drop and IK06 impact resistance standards. It achieves an IP65 front rating when sealed into a solution. The display includes a flush-mount kit, HDMI and VGA inputs, and operates on 100–240 V AC power. Its slim 66.4 mm depth allows for compact kiosk designs.

Key Features

• Touch Performance - 12-point multi-touch PCAP screen with 178° viewing angles and 16.7 million color depth.
• Durability Rating - IK06 impact resistance glass and UL ball-drop testing compliance for high-traffic public venues.
• Integration Kit - Includes 8 flush-mount brackets and 48 screws for seamless front-facing kiosk enclosure design.
• Connectivity - Features HDCP-capable HDMI Type A and Analog VGA ports for versatile media player connections.
• Power Efficiency - Energy Star 7.0 certified with 59.85 W power consumption and 0.17 W off-mode draw.
• Mounting Specs - Supports 400 x 400 mm VESA 4-hole interface for standard commercial mounting solutions.

This product is discontinued and has been succeeded by the 4363L model. As an authorised reseller, SmartScreens.ae assists UAE IT and procurement teams with sourcing current Elo open-frame displays. We offer professional installation, warranty support, and compliance documentation for government and enterprise projects across Dubai, Abu Dhabi, and Sharjah.

Ideal for retail self-service kiosks, hotel check-in stations, transportation info points, and gaming venues in the UAE where durable, sealed touchscreen displays are required.

Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.

Elo IDS 4343L 43-inch Open Frame Touchscreen Display specifications

Colour

Black

Mounting Type

400 x 400 mm VESA 4-hole interface on rear; flush-mount brackets in accessories box

In the Box

4343L, QIG, EEI label, OSD remote, HDMI cable, VGA cable, USB cable (Type A to B), power cables (NA, EU/KR, UK), 8 flush-mount brackets, 48 flush-mount screws

Brightness

450 cd/m²

Colour Depth

16.7 million colors

Operating Humidity

20% to 80% RH

Operating Temperature

0 to 40 °C

Power Consumption

59.85 W on, 0.80 W sleep, 0.17 W off (100 V, 60 Hz typical, monitor and adapter)

Product Dimensions

999.3 x 587.5 x 66.4 mm

Product Weight

18.2 kg (unpackaged)

Resolution

Full HD

Screen Size

43"

Touch Points

12-point multi-touch

Touch Technology

PCAP (TouchPro projected capacitive)

Viewing Angle

178° horizontal and vertical

VESA Mount

400 x 400 mm

Warranty

3 years

Model

4343L

Product Type

Open-Frame Touchscreen Display

Key Features

43-inch Full HD, 12-point PCAP touch, IP65 front when sealed, flush-mount kit, UL ball-drop and IK06 impact glass, Energy Star 7.0, 24-hour operation, 3-year warranty

Aspect Ratio

16:9

Contrast Ratio

1,100:1

Input Voltage

100–240 V AC, 50/60 Hz

IP Rating

IP65 front side when sealed into a solution

Operating Hours

24 hours/day

Panel Technology

LCD

Ports

Analog VGA (DE-15), HDCP-capable HDMI Type A

Response Time

12 ms

Certifications

UL, FCC, cUL, IC, CB, CE, CCC, VCCI, KC, EAC, BSMI, S-Mark, C-Tick, Energy Star 7.0
