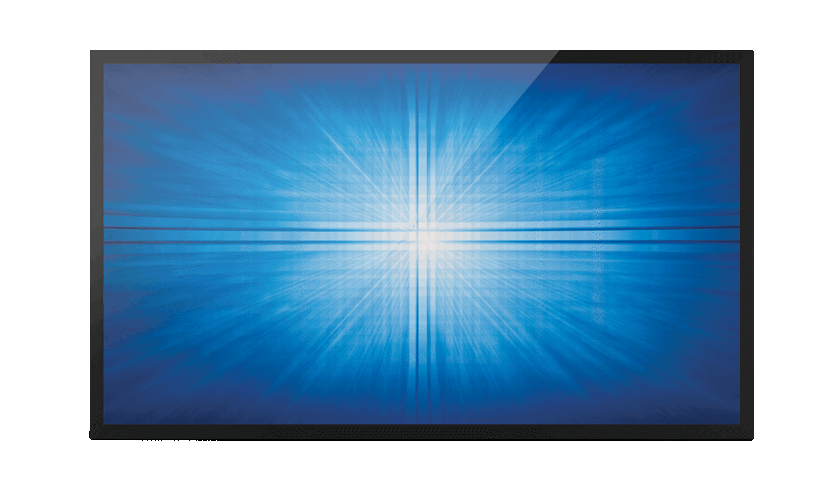

Elo IDS 43-Series 55-inch Open Frame Touchscreen – 5543L
- 12-point PCAP touch
- 54.6-inch Full HD LCD
- IK07 impact glass
- 24/7 operation
- Flush front kiosk mount
- Energy Star 7.0
The Elo 5543L is a discontinued 54.6-inch open frame digital signage display designed for high-traffic commercial environments. Featuring Full HD resolution and 12-point projected capacitive touch, it supports 24/7 operation. SmartScreens.ae, an authorised reseller based in Dubai, provides procurement-ready quotations and can recommend the current successor model for your UAE project requirements.
This open frame unit delivers a professional-grade 54.6-inch Full HD LCD experience in a slim 67mm profile. The display features a 450-nit LED backlight and 1,100:1 contrast ratio for clear visibility. It includes one HDMI and one VGA input port for flexible connectivity. The panel supports 178-degree viewing angles and 16.7 million colors, ensuring consistent image quality for public-facing applications.
TouchPro™ projected capacitive technology enables precise 12-point multi-touch interaction. The front glass meets IK07 impact resistance standards for durability in busy locations. Energy Star 7.0 certification confirms its energy-efficient LED backlighting. The unit is rated for 24-hour daily operation and operates within 0 to 40 °C, making it suitable for continuous deployment in retail, hospitality, or transportation kiosks.
Key Features
- Display Specifications - The 54.6-inch LCD panel provides 1920 x 1080 Full HD resolution with a 450-nit brightness level and 16.7 million color depth for clear visual output.
- Touch Technology - Integrated PCAP touch sensor supports 12-point multi-touch with clear anti-friction glass, sealed to simplify integration into custom enclosures.
- Connectivity Options - The unit includes one HDMI input and one VGA input for video signal transmission, along with USB connectivity for touch data.
- Durability Rating - Built to exceed UL60950 ball-drop standards with IK07 impact immunity, ensuring robust performance in high-traffic commercial venues.
- Mounting and Form - A slim 67mm depth and 400 x 400 mm VESA mount pattern allow for flush front kiosk mounting and space-efficient design integration.
- Power and Environment - Rated for 24/7 operation with 82.61W typical power consumption, operating between 0 to 40 °C and 20% to 80% relative humidity.
SmartScreens.ae is an authorised reseller supplying AV solutions across Dubai, Abu Dhabi, and Sharjah. We provide quotation-based pricing with a best-price guarantee and TRN VAT invoicing for UAE entities. As this model is discontinued, our team can confirm availability or recommend the current Elo successor. We offer free on-site or virtual demonstrations and professional installation to ensure your kiosk integrates seamlessly.
Ideal for: Public self-service kiosks in retail stores, hotel check-in counters, and transportation hubs in Dubai and Abu Dhabi requiring durable, high-touch interaction.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Elo IDS 43-Series 55-inch Open Frame Touchscreen – 5543L specifications
- In the Box
- QIG, OSD remote, HDMI cable, VGA cable, USB cable, power cable, side-mount brackets
- Backlight
- LED
- Brightness
- 450 cd/m²
- Colour Depth
- 16.7 million
- Operating Humidity
- 20% to 80% RH
- Operating Temperature
- 0 to 40 °C
- Power Consumption
- 82.61 W (typical, on)
- Product Dimensions
- 1276 x 746.8 x 67 mm (W x H x D)
- Product Weight
- 29.3 kg
- Resolution
- Full HD
- Screen Size
- 54.6"
- Touch Points
- 12-point multi-touch
- Touch Technology
- PCAP (projected capacitive)
- Viewing Angle
- 178° horizontal / 178° vertical
- VESA Mount
- 400 x 400 mm
- Warranty
- 3 years
- Model
- 5543L
- Product Type
- Open Frame Touchscreen Display
- Key Features
- 12-point PCAP touch, 54.6-inch Full HD LCD, IK07 impact glass, 24/7 operation, flush front kiosk mount, Energy Star 7.0
- Aspect Ratio
- 16:9
- Contrast Ratio
- 1,100:1
- Input Voltage
- 100–240 V AC, 50/60 Hz
- Operating Hours
- 24 hours/day
- Panel Technology
- LCD
- Ports
- HDMI In × 1, VGA In × 1
- Response Time
- 12 ms
- Storage Conditions
- -20 to 60 °C; 10% to 90% RH
- Certifications
- UL, CE, FCC, Energy Star 7.0, RoHS
Need a quotation or bulk pricing? Use Request Best Price above or message our sales team on WhatsApp.
Frequently Asked Questions
Is the Elo 5543L still available for purchase?
No, the Elo 5543L is a discontinued model replaced by the 5503L. SmartScreens.ae can provide quotations for the current successor or compatible units. Contact our procurement team to discuss availability or alternative solutions for your UAE project.
Can I get a demonstration before buying?
Yes. We offer free on-site or virtual demonstrations for clients in Dubai, Abu Dhabi, and Sharjah. This allows your team to verify the display specifications and touch performance before committing to a purchase order.
Does SmartScreens.ae provide installation services?
Yes. We offer professional installation services across the UAE for open frame displays and kiosk integrations. Our team handles the mechanical setup and initial configuration to ensure the unit meets your facility's requirements.
What warranty covers this display?
The manufacturer provides a 3-year warranty for the Elo 5543L. As an authorised reseller, SmartScreens.ae facilitates warranty claims and after-sales support for businesses operating within the UAE.
Is VAT invoicing provided for UAE government purchases?
Yes. We issue TRN VAT invoices compliant with UAE federal tax regulations. Our quotations are procurement-ready and include all necessary documentation for enterprise and government purchasing departments.
What is the maximum touch point count?
The Elo 5543L supports 12-point multi-touch via its projected capacitive (PCAP) touch technology. This allows multiple users to interact with the screen simultaneously, suitable for busy public environments.
