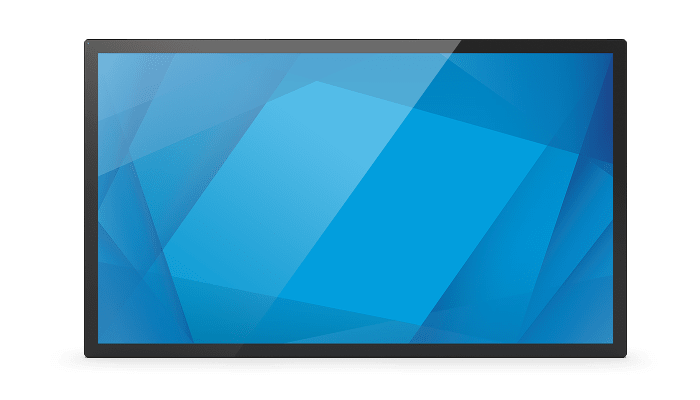

Elo IDS 5054L 50-Inch Interactive Display
- Palm rejection
- Sensors: Ambient light
The Elo 5054L is a 50-inch 4K interactive display designed for collaborative environments. It features 40-point touch capability and IoT management. SmartScreens.ae supplies this model across Dubai, Abu Dhabi, and Sharjah with professional installation services.
This 50-inch diagonal display delivers 3840 x 2160 resolution at 60 Hz with a 4000:1 contrast ratio. The enclosure supports landscape, portrait, and tilt mounting via VESA 400 x 400mm holes. It includes two 8 W stereo speakers and an ambient light sensor for automatic brightness adjustment.
Touch input supports up to 40 simultaneous points using PCAP technology with palm rejection. Connectivity includes HDMI 2.0, DisplayPort 1.4, and USB-C for video and touch data. Integrated IoT control allows management via EloView or Crestron Connected V2 through provided APIs.
Key Features
- 4K Touch Display - 50-inch active matrix TFT LCD with 3840 x 2160 resolution and 40-point PCAP touch capability.
- IoT Management - Supports EloView cloud control and Crestron Connected V2 for centralized device management.
- Video Connectivity - Features 2x HDMI 2.0, DisplayPort 1.4, and USB-C for video input and touch control.
- Durability - Sealed touchscreen and LCD with IK07 ball drop test compliance and anti-friction glass.
- Power Options - Includes IEC 60320-C14 AC outlet for bypass power to backend devices like Elo Backpack.
- Warranty Coverage - Comes with a 3-year manufacturer warranty including Advanced Unit Replacement service.
- Mounting Flexibility - Supports VESA 400 x 400mm mounting for wall, stand, or kiosk installation configurations.
- Operating Range - Operates between 0°C to 40°C with 20% to 80% humidity tolerance for indoor use.
The unit operates for 24 hours daily with a typical power consumption of 99 W. It carries a 3-year warranty including Advanced Unit Replacement. SmartScreens.ae provides quotation-based pricing, TRN VAT invoicing, and installation support for UAE businesses and government entities.
Ideal for: Interactive whiteboards in Dubai schools, digital signage in Abu Dhabi lobbies, and kiosk displays in Sharjah retail spaces requiring multi-user touch input.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Elo IDS 5054L 50-Inch Interactive Display specifications
- In the Box
- Power cables, USB cable (Type-C to Type-C), AC (out) Power cable, IEC 60320-C14 to IEC 60320-C5, Quick Install Guide, Energy label, EU EEI, UK EEI, M4x6 mm flat head screws
- Ambient Light Sensor
- Yes
- Audio Out
- Audio Out × 1
- Backlight
- TFT LCD
- Brightness
- 500 cd/m²
- Colour Depth
- 8-bit + FRC (1.07 billion colours)
- Ethernet (RJ45)
- RJ45 × 1
- HDMI Input
- HDMI In (HDMI 2.0) × 2
- Included Cables
- Power cables, USB Type-C cable, AC out power cable
- Operating Humidity
- 20%~80% RH
- Operating Temperature
- 0 °C to 40 °C
- Palm Rejection
- Yes
- Power Consumption
- 99 W
- Standby Power
- 0.28 W
- Product Dimensions
- 1161.1 × 681.7 × 53.6 mm
- Product Weight
- 24.23 kg
- Refresh Rate
- 60 Hz
- Resolution
- 4K UHD
- Screen Size
- 50"
- Sensors
- Ambient Light Sensor
- Serial Port
- RS232 × 1
- Shipping Dimensions
- 1310 × 940 × 187 mm
- Speaker Output
- 2 × 8 W
- Speaker Type
- Built-in Speakers
- Surface Protection
- Anti-glare
- Touch Points
- 40 Points Multi Touch
- Touch Response Time
- 9.5 ms
- Touch Technology
- Infrared
- USB-C
- Type-C × 1
- USB Ports
- USB-A × 1, Micro USB 2.0 × 4
- Viewing Angle
- 178° (H) / 178° (V)
- VESA Mount
- 400 × 400 mm (VESA)
- Warranty
- 3 years
- Key Features
- Palm rejection, Sensors: Ambient light
- Aspect Ratio
- 16:9
- Contrast Ratio
- 4,000:1
- Panel Technology
- TFT LCD
- Response Time
- 9.5 ms
Frequently Asked Questions
Is the Elo 5054L available for purchase in the UAE?
Yes, SmartScreens.ae supplies the Elo 5054L across Dubai, Abu Dhabi, and Sharjah. We provide quotation-based pricing with best-price guarantees and TRN VAT invoicing for UAE businesses and government entities.
Does SmartScreens.ae offer installation for this display?
Yes, we offer professional installation services for the Elo 5054L in the UAE. We also provide free on-site or virtual demonstrations before purchase to ensure the display meets your specific room requirements.
What is the maximum number of touch points?
The PCAP touch technology supports up to 40 simultaneous touch points. It includes palm rejection and TouchThru capability for mounting behind glass or mirrors.
Can this display be managed remotely?
Yes, it supports EloView cloud control and Crestron Connected V2. You can manage device settings via APIs provided for integration with your preferred MDM solution.
What warranty is included with the Elo 5054L?
The display comes with a 3-year manufacturer warranty that includes Advanced Unit Replacement (AUR). Extended service options are available for four or five years.
What connectivity ports are available?
The unit includes 2x HDMI 2.0, DisplayPort 1.4, USB-C, and 4x Elo Edge Connect Micro USB 2.0 ports. It also has an RJ45 LAN port for IoT connectivity.
