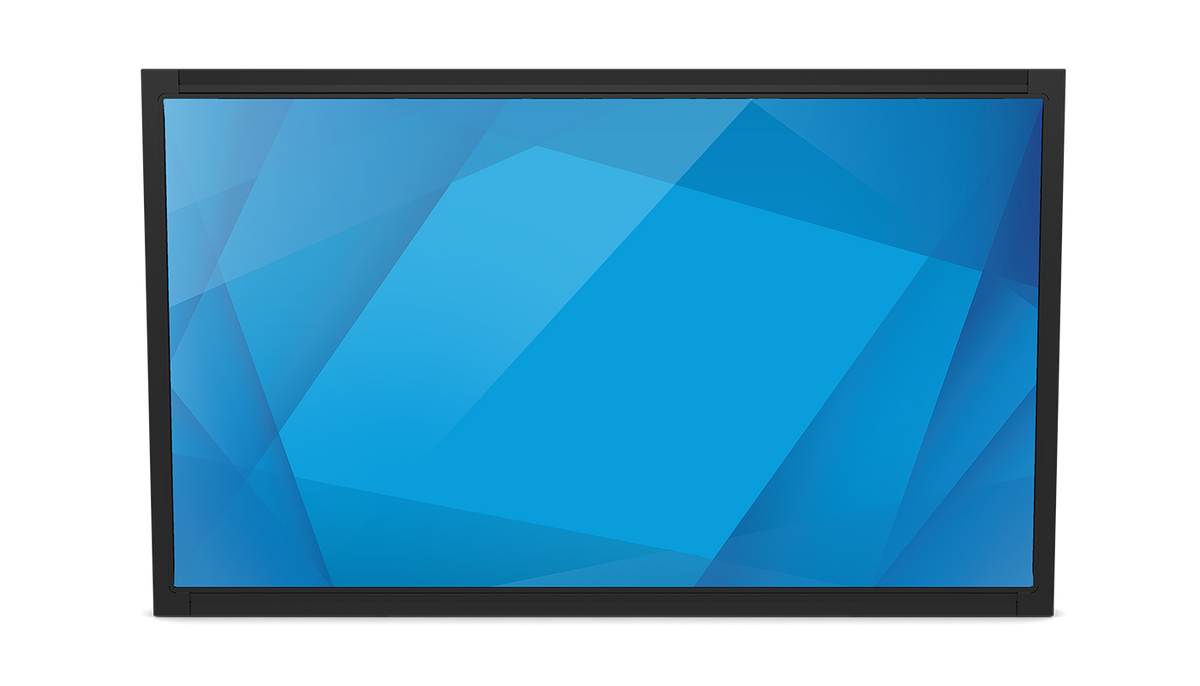

Elo 3243L 32-inch Open Frame Touchscreen PCAP – E304029
- 32-inch Full HD
- 10-point PCAP touch
- 3
- 000:1 contrast
- IP65 front when sealed
- UL 60950 ball-drop glass
The Elo 3243L (E304029) is a discontinued 32-inch open-frame PCAP touchscreen display designed for embedded kiosk integration. It features Full HD 1920 x 1080 resolution and 10-point multi-touch capability. SmartScreens.ae supplies this commercial AV solution across Dubai, Abu Dhabi, and Sharjah for enterprise and government procurement. The team can confirm availability or recommend the current successor model.
This open-frame display replaces standard enclosures with a slim 55 mm profile, enabling sleek kiosk designs for retail, hospitality, and transportation. The Unit offers 500 nits brightness and 3,000:1 contrast for clear visibility in public spaces. Its PCAP glass supports 10-point touch with an IP65 rating when sealed into a final enclosure. The panel uses LED backlighting to reduce power consumption and heat, ensuring reliability in 24/7 duty cycles.
Integration is simplified by VESA 400 x 200 mm mounting and cabled OSD remote control for managing inputs without a physical panel. The device connects via Analog VGA and HDCP-capable HDMI 1.3 ports, supporting standard commercial AV workflows. Certified under UL, FCC, and CE standards, it meets global compliance requirements. The unit weighs 11.2 kg and operates within 0 to 40 °C, making it suitable for diverse UAE environments.
Key Features
- Touch Performance - 10-point PCAP touch technology with clear anti-friction glass for reliable public interaction.
- Display Specifications - 32-inch Full HD (1920 x 1080) LCD panel with 500 nits brightness and 178° viewing angles.
- Connectivity Options - Includes Analog VGA (DE-15) and HDCP-capable HDMI 1.3 inputs for versatile signal routing.
- Mounting Flexibility - Supports VESA 400 x 200 mm mounting interface for easy integration into custom kiosks.
- Durability Rating - UL 60950 ball-drop tested glass and IP65 front rating when sealed in an enclosure.
- Power Efficiency - LED backlighting reduces power consumption to 47.9 W on and 0.9 W in sleep mode.
- Included Accessories - Box contains QIG, HDMI and VGA cables, USB cable, and region-specific power cables.
- Warranty Coverage - Backed by a 3-year manufacturer warranty for peace of mind in commercial deployments.
As an authorised reseller, SmartScreens.ae provides quotation-based pricing with a best-price guarantee for this Elo product. Procurement-ready quotations include TRN VAT invoicing for UAE businesses and government entities. We offer free on-site or virtual demonstrations before purchase and professional installation services. Manufacturer-backed warranty and after-sales support are available across the UAE. Contact us to discuss current stock or successor options.
Ideal for embedded retail kiosks, hotel check-in stations, and transportation information displays in Dubai and Abu Dhabi where slim profiles and durable touch are required.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Elo 3243L 32-inch Open Frame Touchscreen PCAP – E304029 specifications
- Colour
- Black
- Mounting Type
- 400 x 200 mm VESA 4-hole interface on rear; side brackets only with IntelliTouch Dual Touch models
- In the Box
- QIG (with driver), HDMI cable, VGA cable, USB cable (Type A to Type B), power cables (NA, EU/KR, UK)
- Brightness
- 500 cd/m²
- Colour Depth
- 16.7 million colors
- Operating Humidity
- 20% to 80% RH
- Operating Temperature
- 0 to 40 °C
- Power Consumption
- 47.9 W on, 0.9 W sleep, 0.1 W off (120 V, 60 Hz typical)
- Product Dimensions
- 747.3 x 452.7 x 55 mm
- Product Weight
- 11.2 kg (unpackaged)
- Refresh Rate
- 60 Hz
- Resolution
- Full HD
- Screen Size
- 32"
- Touch Points
- 10-point multi-touch
- Touch Technology
- PCAP (TouchPro projected capacitive)
- Viewing Angle
- 178° horizontal and vertical
- VESA Mount
- 400 x 200 mm
- Warranty
- 3 years
- Model
- 3243L PCAP
- Product Type
- Open-Frame Touchscreen Display
- Key Features
- 32-inch Full HD, 10-point PCAP touch, 3,000:1 contrast, IP65 front when sealed, UL 60950 ball-drop glass, VESA 400 x 200 mm, cabled OSD remote, 3-year warranty
- Aspect Ratio
- 16:9
- Contrast Ratio
- 3,000:1
- Input Voltage
- 100–240 V AC, 50/60 Hz
- IP Rating
- IP65 front side when sealed into a solution
- Operating Hours
- 24 hours/day
- Panel Technology
- LCD
- Ports
- Analog VGA (DE-15), HDCP-capable HDMI 1.3
- Response Time
- 8 ms
- Certifications
- UL, FCC, cUL, IC, CB, CE, CCC, VCCI, KCC, EAC, BSMI, S-Mark, RCM, CoC, RoHS
Need a quotation or bulk pricing? Use Request Best Price above or message our sales team on WhatsApp.
Frequently Asked Questions
Is the Elo 3243L available for purchase in the UAE?
Yes, SmartScreens.ae supplies the Elo 3243L across Dubai, Abu Dhabi, and Sharjah. As a multi-brand reseller, we provide quotation-based pricing for UAE businesses and government entities. Please note this model is discontinued; our team can confirm current stock levels or recommend the current successor model for your procurement needs.
Can I request a demonstration before buying?
Yes, we offer free on-site or virtual demonstrations for this open-frame touchscreen. This allows your IT or facilities team to evaluate the 32-inch display's touch response and visual clarity in your specific environment. Contact our sales team to schedule a demo and discuss integration requirements for your UAE project.
What is the touch technology used in this display?
The Elo 3243L uses TouchPro™ projected capacitive (PCAP) technology. It supports 10-point multi-touch with an anti-friction glass surface. When sealed into a final enclosure, the front panel achieves an IP65 rating, protecting against dust and liquids in demanding commercial environments.
Does SmartScreens.ae provide installation services?
Yes, we provide professional installation services for this display across the UAE. Our team handles the mounting and setup, ensuring the VESA 400 x 200 mm interface is correctly integrated into your kiosk or wall mount. We also supply TRN VAT invoices for compliant procurement.
What ports does this open-frame unit have?
The Elo 3243L features Analog VGA (DE-15) and HDCP-capable HDMI 1.3 inputs. It also includes a USB Type A to Type B cable for touch connectivity and power cables for NA, EU/KR, and UK regions. The unit accepts 100–240 V AC input power.
What certifications does this display meet?
The Elo 3243L holds UL, FCC, cUL, IC, CB, CE, CCC, VCCI, KCC, EAC, BSMI, S-Mark, RCM, CoC, and RoHS certifications. These ensure compliance with global safety and environmental standards, suitable for international enterprise deployments.
