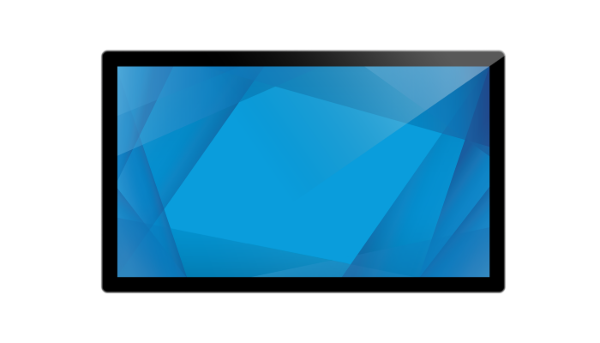

Elo IDS 03-Series 32-inch Interactive Display – E720061
- Ultra fine touch for faster interaction
- 4K UHD clarity for modern spaces
- Multiple connectivity options
The Elo 3203L (Model E720061) is a 32-inch digital signage display featuring 40-point projected capacitive touch and 1920 x 1080 resolution. SmartScreens.ae supplies this unit for corporate and retail use across Dubai, Abu Dhabi, and Sharjah with professional installation and manufacturer-backed warranty support.
This 32-inch interactive display combines a slim black enclosure with high-brightness performance, offering 500 nits on the LCD panel for clear visibility in well-lit UAE environments. The TouchPro PCAP technology supports up to 40 simultaneous touches with palm rejection, ensuring accurate input even in busy retail or office settings. Built for continuous commercial use, it operates reliably for 24 hours daily within a temperature range of 0°C to 40°C.
Connectivity options include two HDMI 1.4 ports, DisplayPort 1.2, and USB-C for both video and touch input, allowing flexible integration with existing AV infrastructure. The unit features a sealed touchscreen protected by anti-friction glass to minimize heat buildup during extended operation. It includes a 3.5mm headphone jack, RS232 control, and an ambient light sensor that adjusts panel color to match surroundings.
Key Features
- Touch Performance - PCAP TouchPro technology enables 40 simultaneous touches with palm rejection and touch-thru capability for mounting behind glass or counters.
- Visual Clarity - Active matrix TFT LCD delivers 1920 x 1080 resolution with 500 nits brightness and a 3000:1 contrast ratio for sharp images.
- Connectivity Options - Includes two HDMI 1.4 inputs, DisplayPort 1.2, USB-C for video/touch, RJ45 for OSD remote, and RS232 serial control.
- Commercial Durability - Designed for 24/7 operation with sealed touchscreen, anti-friction glass, and wide operating temperature ranges for varied environments.
- Audio & Sensors - Features built-in 2x 5W stereo speakers, a 3.5mm headphone output, and an ambient light sensor for automatic brightness adjustment.
- Mounting Flexibility - Supports VESA 400 x 400mm mounting patterns for wall, stand, or kiosk integration in both portrait and landscape orientations.
- Warranty Coverage - Comes with a 3-year manufacturer warranty including Advanced Unit Replacement (AUR) and options for extended 4 or 5-year coverage.
SmartScreens.ae, an authorised reseller of Elo, provides procurement-ready quotations for UAE businesses and government entities, including TRN VAT invoicing. We offer free on-site or virtual demonstrations to verify the display’s fit for your specific application before purchase. Our team supports the entire lifecycle, from professional installation to manufacturer-backed warranty and after-sales service across the GCC.
Ideal for endless aisle retail displays, digital menu boards, collaborative meeting rooms, and dashboarding in UAE corporate offices or government facilities.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Elo IDS 03-Series 32-inch Interactive Display – E720061 specifications
- Backlight
- LED
- Brightness
- 500 cd/m²
- Colour Depth
- 8-bit (16.7 million colours)
- Operating Humidity
- 20% to 80% RH
- Operating Temperature
- 0 to 40 °C
- Power Consumption
- 44 W (typical)
- Standby Power
- 0.29 W
- Product Dimensions
- 764.7 x 459.1 x 57.2 mm
- Product Weight
- 11.87 kg
- Resolution
- Full HD
- Screen Size
- 31.5"
- Shipping Dimensions
- 890 x 640 x 160 mm
- Speaker Output
- 2 × 5 W
- Speaker Type
- Built-in
- Touch Points
- 40-point multi-touch
- Touch Technology
- Capacitive
- Viewing Angle
- 178° (H) / 178° (V)
- VESA Mount
- 400 x 400 mm
- Warranty
- 3 years
- Model
- 3203L
- Aspect Ratio
- 16:9
- Contrast Ratio
- 3,000:1
- Panel Technology
- LCD
- Ports
- HDMI 1.4 × 2, DisplayPort 1.2 × 1, USB-C × 1, Micro USB 2.0 × 4, 3.5 mm headphone out × 1, 3.5 mm RS-232 × 1
- Response Time
- 8 ms (typical), 4 ms (overdrive)
Frequently Asked Questions
Is the Elo 3203L available for purchase in the UAE?
Yes, SmartScreens.ae supplies the Elo 3203L (E720061) across Dubai, Abu Dhabi, and Sharjah. We provide quotation-based pricing for UAE businesses and government entities, including TRN VAT invoicing. Contact our team for a procurement-ready quote and delivery timeline.
Does the display support touch-through mounting?
Yes, the TouchPro PCAP technology supports touch-thru capability, allowing the display to be mounted behind glass, mirrors, or in fully encased kiosks while maintaining accurate 40-point touch response.
Can I schedule a demonstration before buying?
Yes, we offer free on-site or virtual demonstrations to help you verify the display’s performance and integration with your specific AV setup before making a purchase decision.
What is the warranty coverage for this unit?
The Elo 3203L includes a 3-year manufacturer warranty with Advanced Unit Replacement (AUR). Extended service options for 4 or 5 years are also available upon request.
Does the unit support 24/7 commercial operation?
Yes, the display is built for continuous commercial use with a maximum operating time of 24 hours per day and a typical power consumption of 44W in normal mode.
What mounting options are supported?
The unit supports VESA 400 x 400mm mounting patterns, allowing for wall mounting, stand installation, or integration into custom kiosks in both portrait and landscape orientations.
