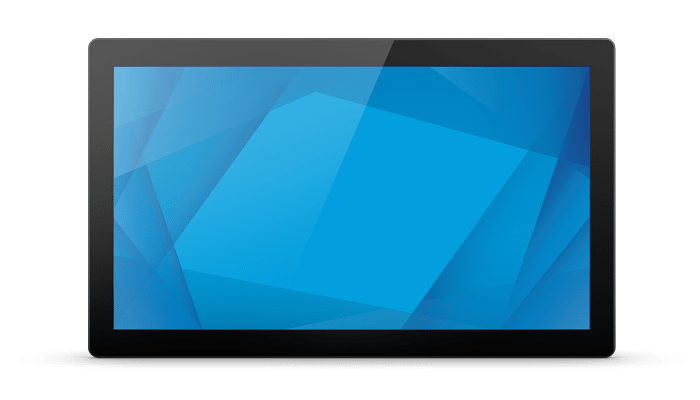

ELO 2294L 21.5" Open Frame Touchscreen TouchPro PCAP Zero Bezel (World
ELO 2294L 21.5" Open Frame Touchscreen TouchPro PCAP Zero Bezel (Worldwide)
Discover the advanced ELO 2294L 21.5" Open Frame Touchscreen, designed to deliver exceptional performance for commercial and industrial applications. This innovative TouchPro PCAP Zero Bezel display features a sleek and modern design, ensuring seamless integration into any environment. The 21.5-inch open frame touchscreen offers stunning clarity, responsive multi-touch functionality, and edge-to-edge glass for a professional appearance. Engineered for reliability, the ELO 2294L supports worldwide usage, making it the perfect solution for interactive kiosks, retail displays, hospitality systems, and more. With its zero bezel design, the screen is easy to clean and maintains a streamlined look in any installation. The robust PCAP (Projected Capacitive) technology delivers accurate touch response, even through glass or when used with gloves. Experience enhanced durability, versatility, and ease of use with the ELO open frame monitor, expertly engineered for demanding environments. Upgrade your business displays with this commercial-grade touchscreen and unlock new possibilities for customer engagement, operational efficiency, and interactive experiences.
Key Features
21.5-Inch Full HD Display - Offers crisp and vibrant visuals with 1920x1080 resolution for immersive user experiences.
TouchPro PCAP Technology - Ensures ultra-responsive multi-touch performance, supporting up to 10 simultaneous touch points.
Zero Bezel Design - Seamless edge-to-edge glass for a modern look and easy cleaning in public environments.
Open Frame Construction - Ideal for integration into kiosks, gaming machines, and self-service terminals.
Worldwide Compatibility - Engineered for global use with universal power support and regulatory approvals.
Commercial-Grade Durability - Built for 24/7 operation with robust components and long lifecycle support.
Flexible Mounting Options - VESA and side mounting brackets included for versatile installation.
Anti-Glare Surface - Reduces reflections and enhances visibility in brightly lit environments.
Plug-and-Play Connectivity - Features HDMI, VGA, and USB touch interfaces for easy integration.
Glove and Stylus Support - Operates accurately even with gloves or passive styluses for industrial and medical use.
Energy Efficient - Low power consumption for sustainable and cost-effective operation.
The ELO 2294L 21.5" Open Frame Touchscreen combines style, reliability, and advanced touch technology for a wide range of business applications. Its zero bezel design and PCAP touch technology make it the ideal solution for interactive digital signage, self-service kiosks, and commercial environments where durability and user satisfaction are paramount.
| Name | ELO 2294L 21.5" Open Frame Touchscreen TouchPro PCAP Zero Bezel (Worldwide) |
| Refresh Rate | 60 Hz |
| Screen Size | 21.5 inch |
| Warranty | 3 Years |
| Accessories | OSD Remote, Quick Install Guide, EEI Label, Flush Mount Brackets w/Screws |
| Included Cables | HDMI Cable, VGA Cable, Touch USB Cable |
| Wall Mount | 100 × 100 mm (VESA) |
| Power Consumption | < 14.5 W |
| Power Standby | ≤ 0.5 W |
| Shipping Dimensions | 620 × 423 × 190 mm |
| Product Dimensions | 516 × 311 × 37.9 mm |
| Product Weight | 5.1 kg |
| Operating Humidity | 20%~80% RH |
| Operating Temperature | 0 °C to 40 °C |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | SAW / PCAP |
| Touch Response Time | 14 ms |
| Serial Port | RS232 × 1 |
| Touch USB Ports | Touch-USB × 1 |
| VGAInput | VGA × 1 |
| Hdmi Input | HDMI In × 1 |
| Brightness | 225 cd/m² |
| Display Color | 8bit |
| Resolution | 1920 × 1080 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | LED |
