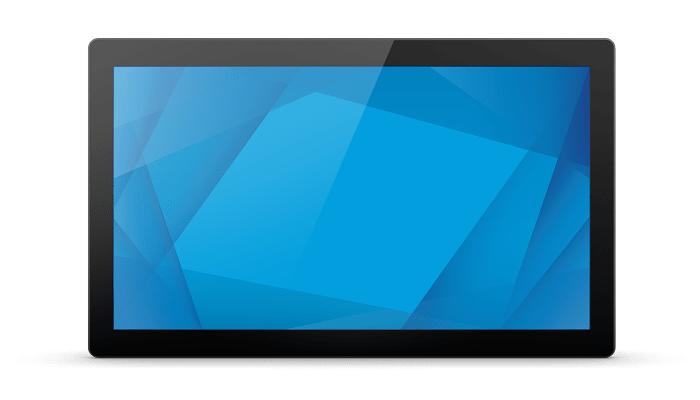

ELO 2294L 21.5" Open Frame Touchscreen TouchPro PCAP with Bezel (World
ELO 2294L 21.5" Open Frame Touchscreen TouchPro PCAP with Bezel (Worldwide)
The ELO 2294L 21.5" Open Frame Touchscreen with TouchPro PCAP technology is engineered for seamless integration into interactive kiosks, digital signage, and self-service terminals worldwide. Designed with a robust open frame and a modern bezel, this 21.5-inch touchscreen monitor delivers responsive multi-touch performance and brilliant HD visuals, making it ideal for demanding commercial environments. The PCAP touch technology ensures accurate and durable touch response, even through glass, supporting up to 10 simultaneous touch points. Its energy-efficient LED backlight and versatile mounting options allow flexible installation in horizontal, vertical, or face-up orientations. The ELO 2294L is built for global compatibility with international certifications and a wide operating temperature range, ensuring reliable operation across markets. With a sleek, durable design, advanced touch functionality, and broad connectivity, this open frame touchscreen display is the perfect solution for OEMs and system integrators seeking uncompromising performance and reliability.
Key Features
21.5-Inch Full HD Display - Delivers crisp, clear visuals with a 1920x1080 resolution for vibrant image quality.
TouchPro PCAP Technology - Provides highly responsive, multi-touch capability with up to 10 touch points for a smooth user experience.
Open Frame Design - Ideal for easy integration into kiosks, gaming machines, and industrial applications.
Sleek Bezel - Modern bezel enhances durability and aesthetics, supporting custom enclosures.
Worldwide Compatibility - International certifications and wide voltage support for global deployment.
Flexible Mounting Options - Supports VESA and side mounting for horizontal, vertical, or face-up installation.
Durable Construction - Built to withstand heavy public use and demanding commercial environments.
Energy-Efficient LED Backlight - Reduces power consumption while delivering bright, even illumination.
Comprehensive Connectivity - Features HDMI, VGA, and USB ports for seamless integration with various systems.
Wide Operating Temperature Range - Ensures reliable performance in diverse environmental conditions.
Easy Maintenance - Designed for quick access and minimal downtime, simplifying servicing and upgrades.
The ELO 2294L 21.5" Open Frame Touchscreen with TouchPro PCAP and bezel delivers professional-grade touch performance, versatile installation options, and global compatibility for high-traffic commercial environments. Its robust design and advanced features make it the trusted choice for interactive solutions worldwide.
| Name | ELO 2294L 21.5" Open Frame Touchscreen TouchPro PCAP with Bezel (Worldwide) |
| Refresh Rate | 60 Hz |
| Screen Size | 21.5 inch |
| Warranty | 3 Years |
| Accessories | OSD Remote, Quick Install Guide, EEI Label, Japan Class-B TM info sheet, Flush Mount Brackets w/Screws |
| Included Cables | HDMI Cable, VGA Cable, Touch USB Cable |
| Wall Mount | 100 × 100 mm (VESA) |
| Power Consumption | < 14.5 W |
| Power Standby | ≤ 0.5 W |
| Shipping Dimensions | 620 × 423 × 190 mm |
| Product Dimensions | 516 × 311 × 37.9 mm |
| Product Weight | 5.1 kg |
| Operating Humidity | 20%~80% RH |
| Operating Temperature | 0 °C to 40 °C |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | SAW / PCAP |
| Touch Response Time | 14 ms |
| Serial Port | RS232 × 1 |
| Touch USB Ports | Touch-USB × 1 |
| VGAInput | VGA × 1 |
| Hdmi Input | HDMI In × 1 |
| Brightness | 225 cd/m² |
| Display Color | 8bit |
| Resolution | 1920 × 1080 |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight | LED |
