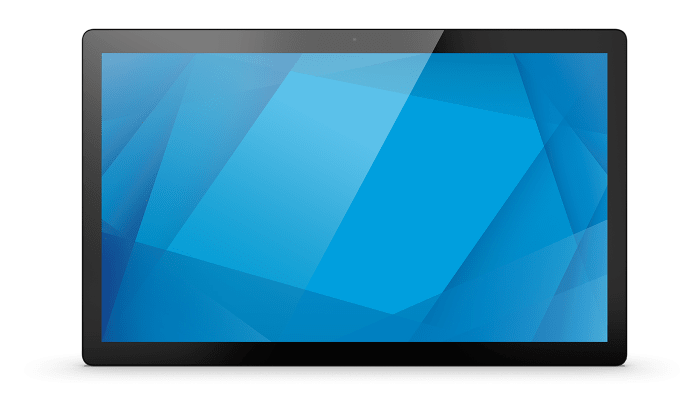

ELO 22-inch I-Series with Linux
ELO 22-inch I-Series with Linux
The ELO 22-inch I-Series with Linux (SKU: E143391) is designed for businesses seeking a powerful all-in-one touchscreen solution. With its expansive 22-inch touchscreen display, this device offers exceptional clarity and seamless interactivity, making it perfect for retail, hospitality, healthcare, and self-service applications. The integrated Linux operating system ensures robust performance, enhanced security, and easy customization for business-specific needs. Its sleek, modern design fits effortlessly into any environment while delivering the reliability ELO is known for. The I-Series features advanced connectivity options, allowing users to connect peripherals and network devices with ease. With durable construction, the device is built to withstand high-traffic environments. Whether you're deploying interactive kiosks, digital signage, or POS terminals, the ELO I-Series delivers unmatched performance and versatility. The responsive multi-touch capabilities provide an intuitive user experience, while the fanless design ensures silent operation. For businesses looking to upgrade their technology infrastructure, the 22-inch Linux touch computer from ELO is the ultimate solution for efficiency, reliability, and innovation.
Key Features
22-inch Full HD Touchscreen - Delivers vivid visuals and responsive touch for interactive applications.
Pre-installed Linux OS - Offers stability, security, and open-source flexibility for business customization.
Sleek All-in-One Design - Space-saving, modern look suitable for any commercial environment.
Multi-touch Support - Enables up to 10 simultaneous touch points for engaging user experiences.
Fanless Silent Operation - Ensures quiet performance, ideal for public spaces and customer areas.
Durable Commercial Build - Engineered for high-traffic use with robust materials and construction.
Flexible Mounting Options - Compatible with VESA mounts for wall, stand, or kiosk installations.
Comprehensive Connectivity - Includes USB, HDMI, LAN, and serial ports for device integration.
Energy Efficient - Optimized for low power consumption, reducing operational costs.
Wide Operating Temperature Range - Functions reliably in various environmental conditions.
Trusted ELO Brand - Backed by a leading manufacturer in commercial touchscreen technology.
The ELO 22-inch I-Series with Linux combines powerful touchscreen technology, reliable Linux OS, and a sleek all-in-one design to transform customer engagement and streamline business operations. Perfect for a wide range of commercial uses, this feature-rich terminal ensures lasting performance and superior interactivity for demanding environments.
| Name | ELO 22-inch I-Series with Linux |
| Refresh Rate | 60 Hz |
| Screen Size | 22 inch |
| Built-in Camera | 5 MP |
| Built-In Microphones | 1 × built-in Analog Microphone |
| Warranty | 2 years |
| Accessories | Quick Install Guide, Screws for cable cover door |
| Included Cables | NA Power Cable, EU Power Cable, Power Brick |
| Wall Mount | VESA 75mm and 100mm |
| Power Consumption | 14.49W |
| Power Standby | 0.32W |
| Shipping Dimensions | 600 × 168 × 406 mm |
| Product Dimensions | 524.8 × 324.8 × 29.7 mm |
| Product Weight | 4.3 kg |
| Operating Humidity | 20%~80% |
| Operating Temperature | 0°C to 40°C |
| RAM | 4 GB |
| Storage | 32 GB |
| CPU | Rockchip RK3399 |
| OS Version | Linux Debian 10 |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | Projected Capacitive |
| Ethernet (RJ45) | LAN (Gigabit) × 1 |
| Wi-Fi | 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 5.0 |
| SD Card Slot | Micro SD slot × 1 |
| USB Ports | USB 3.0 × 1 |
| Type C in | Type C USB output × 1 |
| Speaker Output | 2 × 2W |
| Speaker Type | Built-in Speakers |
| Brightness | 250 cd/m² |
| Display Color | 8bit |
| Resolution | 1920 × 1080 |
| Viewing Angle | Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total |
| Backlight | LED |
| Built-In Microphone | 1 × built-in Analog Microphone |
