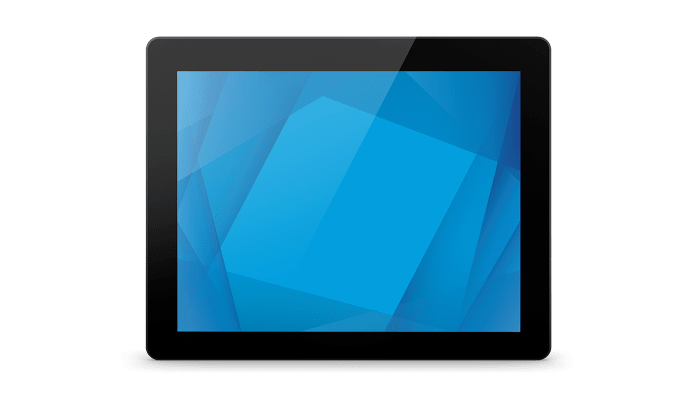

ELO 1590L 15" Open Frame Touchscreen TouchPro PCAP with Bezel (Worldwi
ELO 1590L 15" Open Frame Touchscreen TouchPro PCAP with Bezel (Worldwide)
The ELO 1590L 15" Open Frame Touchscreen is an ideal solution for businesses seeking reliable and versatile interactive display technology. Designed with TouchPro PCAP technology and a robust bezel, this open frame touchscreen offers fast, accurate, and responsive touch performance. The 15-inch screen size makes it perfect for point-of-sale, kiosk, gaming, and industrial automation applications. Its open frame design ensures seamless integration into both new and existing enclosures, making it a favorite among system integrators and OEMs. The ELO 1590L is engineered for worldwide compatibility, supporting a range of input connectors and mounting options for flexible installation. With its durable construction, LED backlighting, and energy-efficient operation, this touchscreen delivers an outstanding user experience and a long operational life. Whether you need a high-performance display for retail, hospitality, or self-service environments, the ELO 1590L ensures exceptional clarity, durability, and touch accuracy.
Key Features
15" Touch Display - Optimal size for a wide range of commercial and industrial applications.
TouchPro PCAP Technology - Delivers highly responsive and accurate 10-touch capability.
Open Frame Design - Easily integrates into kiosks, gaming machines, and information terminals.
Bezel Construction - Provides additional protection and a sleek, finished appearance.
Worldwide Compatibility - Supports global power standards and multiple input options.
Energy-Efficient LED Backlighting - Reduces power consumption while offering vibrant display quality.
Flexible Mounting Options - Includes VESA and side mounting for versatile installation.
Durable Build Quality - Built to withstand continuous public use and harsh environments.
High Clarity Display - Ensures sharp images and excellent visibility even in bright settings.
Multiple Connectivity - Features VGA, HDMI, and USB interfaces for easy integration.
Long Operational Life - Designed for 24/7 operation with minimal maintenance requirements.
The ELO 1590L 15" Open Frame Touchscreen with TouchPro PCAP and a protective bezel is a trusted choice for demanding interactive applications. Its advanced touch technology, robust design, and worldwide compatibility make it an excellent fit for kiosk installations, self-service systems, and retail environments seeking reliability and performance.
| Name | ELO 1590L 15" Open Frame Touchscreen TouchPro PCAP with Bezel (Worldwide) |
| Refresh Rate | 60 Hz |
| Screen Size | 15 inch |
| Warranty | 3 Years |
| Accessories | OSD Remote, Quick Install Guide, EEI Label, Flush Mount Brackets w/Screws |
| Included Cables | HDMI Cable, VGA Cable, Touch USB Cable |
| Wall Mount | 100 × 75 mm (VESA) |
| Power Consumption | 12.5 W |
| Power Standby | ≤ 0.5 W |
| Shipping Dimensions | 434 × 375 × 175 mm |
| Product Dimensions | 358 × 284.9 × 35.6 mm |
| Product Weight | 2.9 kg |
| Operating Humidity | 20%~80% |
| Operating Temperature | 0 °C to 40 °C |
| Touch Points | 10 Points Multi Touch |
| Touch Technology | PCAP / SAW / Resistive |
| Touch Response Time | 23 ms |
| Surface Protection | Antiglare |
| Serial Port | RS232 × 1 |
| Touch USB Ports | Touch-USB × 1 |
| VGAInput | VGA × 1 |
| Hdmi Input | HDMI In × 1 |
| Brightness | 300 cd/m² |
| Display Color | 8bit |
| Resolution | 1024 × 768 |
| Viewing Angle | 160° (H) / 150° (V) |
| Backlight | LED |
