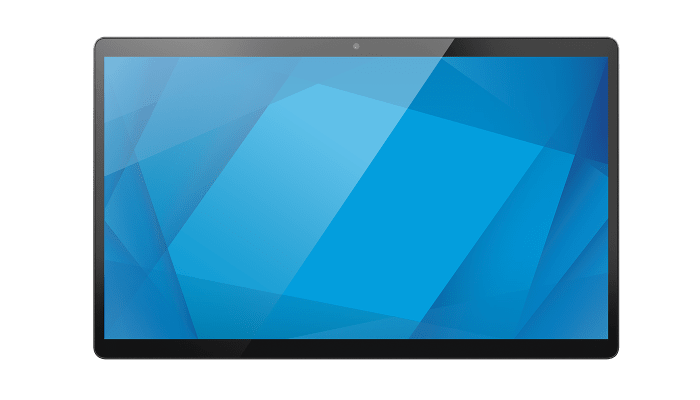

Elo I-Series 3 Slate 15-inch Signage Media Player – E128434
- 10-point PCAP touch
- TPM 2.0
- 8 MP webcam with auto focus
- Digital microphone
- IO Hub with RJ45 Gigabit and 4 USB-A 3.0
- Memory expandable to 32 GB
The Elo I-Series 3 Slate (E128434) is a compact signage media player featuring a 15.6-inch LED display and Intel Elkhart Lake J6426 processor. It includes 8GB RAM, 128GB NVMe storage, and integrated webcam. SmartScreens.ae supplies this unit with manufacturer-backed warranty and installation services across the UAE.
This compact unit integrates a 15.6-inch 1080p LCD panel with Intel UHD Graphics, powered by the Elkhart Lake J6426 processor. It features 8GB DDR4 RAM and a 128GB M.2 NVMe SSD for reliable data storage. The device supports Windows 10/11 IoT Enterprise LTSC or Linux, with TPM 2.0 security. It includes a 2T2R Wi-Fi 6 antenna, Bluetooth 5.2, and Gigabit Ethernet for robust connectivity.
The enclosure measures 362.8 mm x 223.4 mm x 15.3 mm, weighing 1.6 kg. It offers VESA 75mm mounting for flexible installation. Connectivity includes USB-C with DP output, an IO Hub with four USB-A ports, and RJ45. Power is supplied via an external 65W brick. The display achieves 300 nits brightness with a 1000:1 contrast ratio, suitable for clear visual output in various lighting conditions.
Key Features
- Processing Power - Intel Elkhart Lake J6426 processor with Intel UHD Graphics delivers reliable performance for signage tasks.
- Display Quality - 15.6-inch active matrix TFT LCD with 1920 x 1080 resolution and 300 nits typical brightness.
- Connectivity - Includes Gigabit Ethernet, USB-C with DP output, four USB-A 3.0 ports, and 802.11ax Wi-Fi 6.
- Security - Built-in TPM 2.0 module ensures hardware-level security for enterprise and government deployments.
- Compact Design - Dimensions of 362.8 x 223.4 x 15.3 mm allow for discreet mounting in retail or corporate environments.
- Mounting Options - Supports standard VESA 75mm mounting patterns for flexible installation on walls or stands.
- Operating System - No OS included; supports Windows 10/11 IoT Enterprise LTSC 64-bit or pre-tested Linux distributions.
SmartScreens.ae provides procurement-ready quotations for UAE businesses and government entities. Our services include professional installation and free on-site or virtual demonstrations. We supply this media player across Dubai, Abu Dhabi, and Sharjah, backed by a 3-year manufacturer warranty. Extended service options are available for long-term support. All transactions include TRN VAT invoicing for compliance.
Ideal for: Retail digital signage, corporate lobby displays, and point-of-sale terminals in Dubai and Abu Dhabi environments requiring compact, secure computing.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Elo I-Series 3 Slate 15-inch Signage Media Player – E128434 specifications
- In the Box
- North America Power Cord, European Power Cord, 65 W Power Adapter, Quick Installation Guide (QIG), IO Hub
- Ambient Light Sensor
- No
- Backlight
- LED
- Bluetooth
- Bluetooth 5.2
- Blue Light Filter
- No
- Brightness
- 300 cd/m²
- Built-in Camera
- Yes
- Camera
- 8 MP
- Processor
- Intel Pentium Processor J6426
- Colour Depth
- 8-bit (16.2 million colours)
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 1
- Graphics
- Intel UHD Graphics
- Included Cables
- North America Power Cord, European Power Cord, 65W Power Adapter, Quick Installation Guide (QIG)
- Operating Humidity
- 10%~90% RH
- Operating Temperature
- 0 °C to 35 °C
- Operating System
- No OS
- Power Consumption
- < 30 W
- Standby Power
- ≤ 0.5 W
- Product Dimensions
- 362.8 × 223.4 × 15.3 mm
- Product Weight
- 1.6 kg
- RAM
- 8 GB
- Refresh Rate
- 60 Hz
- Resolution
- Full HD
- Screen Size
- 15.6 inch
- Shipping Dimensions
- 460 × 321 × 178 mm
- Speaker Output
- 2 × 2 W
- Speaker Type
- Built-in Speakers
- Storage
- 128 GB
- Touch Points
- 10 Points Multi Touch
- Touch Response Time
- 25 ms
- Touch Technology
- Capacitive
- USB-C Functions
- Supports USB 2.0/3.0, DP Output, Power Delivery 2.0
- USB-C
- USB-C (USB 2.0/3.0, DP output, Power Delivery 2.0)
- USB Ports
- USB 3.0 × 4
- Viewing Angle
- 170° (H) / 170° (V)
- Wake-on-LAN
- No
- VESA Mount
- 75 × 75 mm (VESA)
- Warranty
- 3 years
- Wi-Fi
- Wi-Fi 6 (802.11ax), 2.4/5/6 GHz
- Shipping Weight
- 4 kg
- Key Features
- 10-point PCAP touch, TPM 2.0, 8 MP webcam with auto focus, Digital microphone, IO Hub with RJ45 Gigabit and 4 USB-A 3.0, Memory expandable to 32 GB, 2T2R antenna design
- Antenna
- 2T2R
- Aspect Ratio
- 16:9
- Contrast Ratio
- 1,000:1
- Input Voltage
- 100–240 V AC, 50/60 Hz
- Panel Technology
- LCD
- Response Time
- 25 ms
- Microphone
- Digital Microphone
Frequently Asked Questions
Is this media player available for purchase in the UAE?
Yes, SmartScreens.ae supplies the Elo I-Series 3 Slate across Dubai, Abu Dhabi, Sharjah, and the wider GCC. We provide quote-based pricing with a best-price guarantee. Contact us for a procurement-ready quotation including TRN VAT invoicing for UAE businesses and government entities.
Does the site offer installation services?
Yes, we offer professional installation for this media player across the UAE. We also provide free on-site or virtual demonstrations before purchase. Our team ensures the unit is configured and mounted correctly, backed by manufacturer warranty and after-sales support.
What operating systems are supported?
The unit ships with no OS. It is compatible with Windows 10 IoT Enterprise LTSC 64-bit and Windows 11 IoT Enterprise LTSC 64-bit. It is also pre-tested with Linux distributions including SUSE, Ubuntu, and Red Hat for flexible deployment options.
What is the warranty coverage?
The product includes a standard 3-year manufacturer warranty. Extended service options are available, including 4-year and 5-year coverage with or without Advanced Unit Replacement (AUR) for enhanced support in the UAE.
Can it be mounted on a wall?
Yes, the enclosure supports VESA 75mm mounting patterns. This allows for secure wall mounting or attachment to compatible stands. The compact form factor (362.8 x 223.4 mm) fits discreetly in retail or corporate spaces in Dubai and Abu Dhabi.
What connectivity ports are included?
The IO Hub provides four USB-A 3.0 ports and a Gigabit RJ45 Ethernet port. The main unit features a USB-C connector supporting USB 2.0/3.0 and DisplayPort output. It also includes integrated Wi-Fi 6 (802.11ax) and Bluetooth 5.2.
