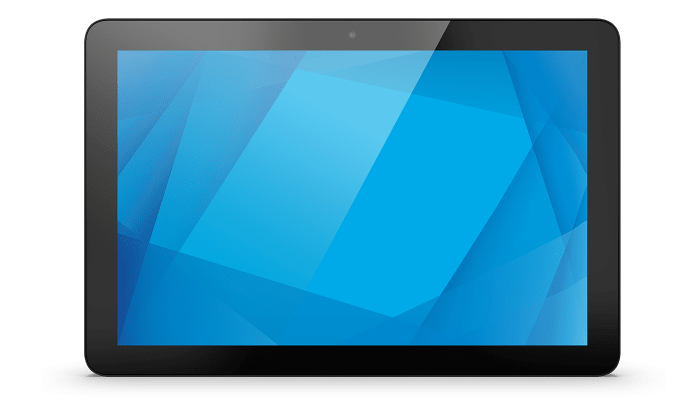

Elo I-Series 5 10-inch Touchcomputer – E539154
- 10-point PCAP touch
- 8 MP webcam
- 2 digital microphones
- MicroSD slot
- Gigabit Ethernet
- Wi-Fi 6
The Elo 10-inch I-Series 5 (model E539154) is a rugged Android 14 touchcomputer designed for digital signage and self-service applications. Powered by a Qualcomm Snapdragon QCS6490 processor with 8GB RAM, it delivers reliable performance in a compact 252.9 x 169.0 mm form factor. Procure FZE supplies this unit across Dubai, Abu Dhabi, and Sharjah with quote-based pricing and professional installation support for enterprise and government clients.
This fixed tablet form factor combines a 10.1-inch HD display with Projected Capacitive (PCAP) touch technology, supporting up to 10 simultaneous touch points. The 1920 x 1200 resolution screen offers 450 nits of brightness, ensuring visibility in well-lit UAE environments. Running Android 14 with EloView management software, the device allows for straightforward content deployment and system monitoring without the complexity of traditional media players.
Connectivity is handled through a Gigabit Ethernet port, USB 3.0, and optional Power over Ethernet (PoE) via kit E669163. The unit includes built-in Wi-Fi 6E and Bluetooth 5.2 for wireless peripherals, alongside an 8MP auto-focus webcam for video conferencing or interactive applications. Its sealed touchscreen and robust internal components are rated for operating temperatures between 0°C and 40°C, suitable for indoor commercial use.
Key Features
- Processing Power - Qualcomm Snapdragon QCS6490 processor with 8GB RAM and 64GB storage runs Android 14 and supports future OS 360 upgrades.
- Touch Display - 10.1-inch active matrix TFT LCD with 1920 x 1200 resolution, 450 nits brightness, and 10-point PCAP touch capability.
- Connectivity Options - Includes Gigabit Ethernet, USB 3.0, Micro SD slot, GPIO, and optional PoE support via Elo E669163 kit for simplified wiring.
- Wireless Standards - Integrated 802.11ax Wi-Fi 6E and Bluetooth 5.2 enable reliable wireless connections for peripherals and network updates.
- Visual Input - Built-in 8MP auto-focus webcam supports resolutions up to 3264x2448 at 30fps for interactive or surveillance applications.
- Audio Capabilities - Dual 2W speakers and two digital microphones provide clear audio output and input for voice commands or conferencing.
SmartScreens.ae provides authorised reseller support for the Elo I-Series, including procurement-ready quotations with TRN VAT invoicing for UAE businesses. We offer free on-site or virtual demonstrations to verify compatibility with your existing AV infrastructure. Professional installation and manufacturer-backed warranty services ensure long-term reliability for your digital signage or kiosk projects across the GCC region.
Ideal for: Deploying durable digital signage in retail kiosks, lobby information displays, and interactive self-service terminals in Dubai malls and Abu Dhabi corporate offices.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Elo I-Series 5 10-inch Touchcomputer – E539154 specifications
- Colour
- Black
- In the Box
- Quick Install Guide, Screws for cable cover door
- Backlight
- LED
- Bluetooth
- Bluetooth 5.2
- Brightness
- 450 cd/m²
- Built-in Camera
- Yes
- Camera
- 8 MP
- Processor
- Qualcomm Snapdragon QCS6490
- Colour Depth
- 8-bit (16.7 million colours)
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 1
- Included Cables
- North American Power Cable, European Power Cable, 1 × Power Brick
- Operating Humidity
- 20%~80%
- Operating Temperature
- 0 °C to 40 °C
- Operating System
- Android 14
- Power Consumption
- 6.0 W
- Standby Power
- 0.2 W
- Product Dimensions
- 252.9 × 169.0 × 22.1 mm
- Product Weight
- 0.7 kg
- RAM
- 8 GB
- Refresh Rate
- 60 Hz
- Resolution
- 1920 × 1200
- Screen Size
- 10 inch
- SD Card Slot
- microSD card slot × 1
- Shipping Dimensions
- 320 × 150 × 235 mm
- Speaker Output
- 2 × 2W
- Speaker Type
- Built-in Speakers
- Storage
- 64 GB
- Touch Points
- 10 Points Multi Touch
- Touch Response Time
- 30 ms
- Touch Technology
- Capacitive
- USB-C
- Type C USB output × 1
- USB Ports
- USB 3.0 × 1
- Viewing Angle
- 160° (H) / 160° (V)
- VESA Mount
- 75 mm (VESA)
- Warranty
- 2 years
- Wi-Fi
- Wi-Fi 6E (802.11ax)
- Key Features
- 10-point PCAP touch, 8 MP webcam, 2 digital microphones, microSD slot, Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.2
- Aspect Ratio
- 16:10
- Contrast Ratio
- 900:1
- Input Voltage
- 100–240 V AC, 50/60 Hz
- Panel Technology
- LCD
- Microphone
- 2 digital mics
Frequently Asked Questions
What is the price of the Elo E539154?
Pricing is available by quotation only. Contact our procurement team for a best-price guarantee quote that includes TRN VAT invoicing for UAE businesses. We do not list public prices to ensure competitive commercial terms for enterprise and government buyers.
Can I get a demonstration before purchasing?
Yes. We offer free on-site or virtual demonstrations of the Elo I-Series 5 to verify its performance and compatibility with your specific AV setup. This allows your IT or facilities team to evaluate the Android 14 interface and connectivity options before committing to a purchase.
Does the unit support Power over Ethernet?
Yes, PoE is supported via the optional Elo PoE Device kit (P/N: E669163). This allows you to simplify installation by delivering both power and data through a single Ethernet cable, which is particularly useful for wall-mounted signage in locations where power outlets are not nearby.
What mounting options are available?
The device features a built-in VESA 75mm mount for secure attachment to walls or stands. We also supply compatible tabletop stands and flip stands to suit different installation requirements in UAE offices and retail spaces, ensuring stable placement for interactive use.
Is this model suitable for government procurement?
Yes. We provide all necessary compliance documentation, including warranty details and technical specifications, to support enterprise and government procurement processes in the UAE. Our quotations are fully compliant with local TRN VAT requirements and supply across Dubai, Abu Dhabi, and Sharjah.
What warranty coverage is included?
The device comes with a standard 2-year manufacturer-backed warranty. We also supply extended service options, including 3 to 5-year warranty coverage and OS 360 subscriptions for software updates. Our after-sales support team is based in Dubai to assist with any technical issues across the GCC.
