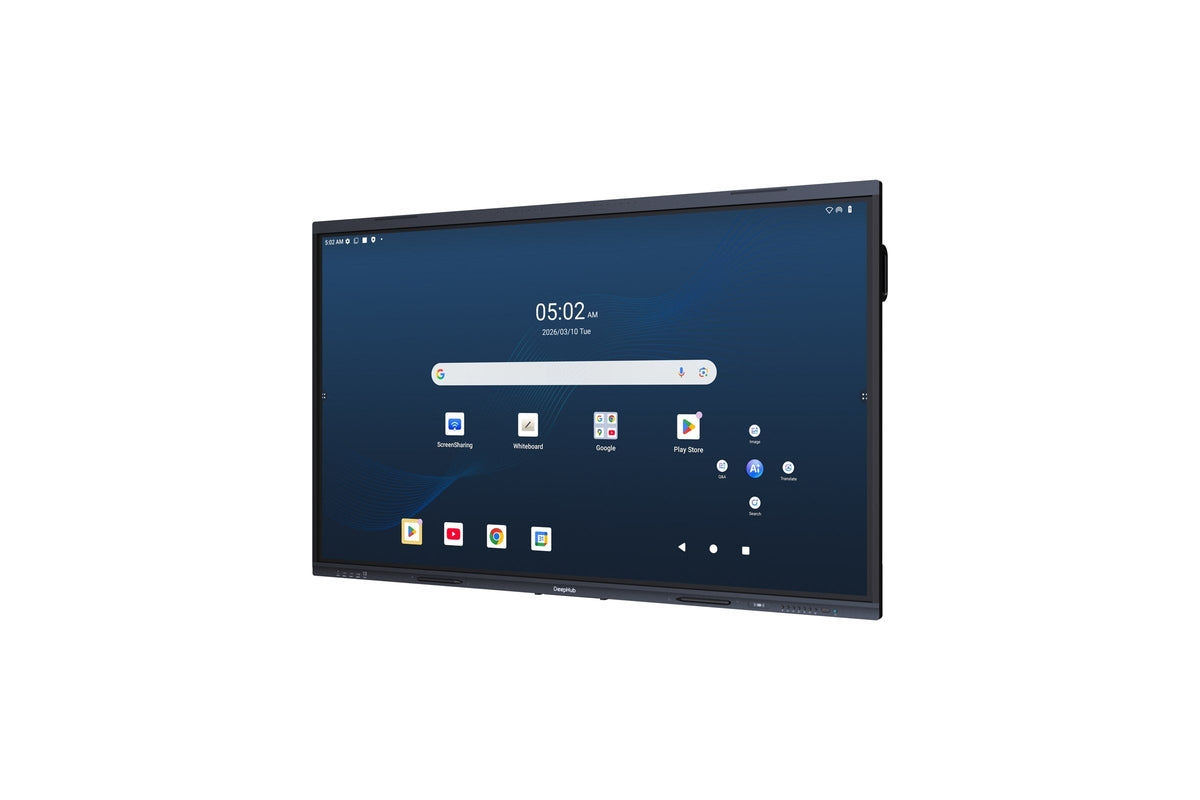

Dahua ST480 86-inch Interactive Flat Panel – LPH86-ST480-U-S2
- 4K UHD
- 10-bit colour
- 64-point infrared touch
- 16-array microphone
- 4 speakers
- Android 15
The Dahua ST480 LPH86-ST480-U-S2 is an 86-inch interactive flat panel designed for high-traffic UAE environments. It features a 4K UHD screen, 64-point infrared touch, and built-in Android 15. SmartScreens.ae supplies this unit with professional installation and compliance documentation for businesses in Dubai and the wider GCC.
This 86-inch display delivers a 3840 x 2160 resolution with 400 nits brightness and a 178-degree viewing angle. The panel uses a 16-array omnidirectional microphone with a 12-meter pickup range, ensuring clear audio capture in meeting rooms or classrooms. A 2.2-channel speaker system provides built-in audio output for presentations.
Connectivity includes four HDMI inputs, a DisplayPort, VGA, and three USB-C ports for versatile device integration. The unit supports Wi-Fi 6 and Bluetooth 5.4, alongside a microSD card slot for up to 512 GB of storage. The metal casing and tempered glass surface offer durability for daily use in corporate or educational settings.
Key Features
- 4K UHD Display - The screen provides 3840 x 2160 resolution with 10-bit colour depth and 400 nits brightness for clear visuals.
- 64-Point Touch - Infrared touch technology supports 64 simultaneous touch points with a response time of ≤1.67 ms.
- Built-in Android 15 - The integrated operating system includes a quad-core processor, 8 GB RAM, and 128 GB storage for standalone use.
- Advanced Audio - A 16-array microphone captures audio up to 12 meters away, paired with a 2.2-channel speaker system.
- Comprehensive Ports - Connectivity features four HDMI inputs, one DP, VGA, and three USB-C ports for diverse device connections.
- Wireless Connectivity - Built-in Wi-Fi 6 and Bluetooth 5.4 allow for stable wireless data transfer and peripheral pairing.
- Durable Design - The unit features a metal casing with 3.2 mm anti-glare tempered glass for robustness in busy environments.
- Mounting Options - Supports VESA 800 x 400 mm wall mounting or mobile brackets for flexible installation in UAE offices.
Operating on Android 15 with 8 GB RAM and 128 GB storage, the system handles multi-touch tasks efficiently. The panel measures 1914.9 x 1177.2 mm and weighs 58.6 kg, supporting VESA 800 x 400 mm mounting. SmartScreens.ae offers quote-based pricing, TRN VAT invoicing, and manufacturer-backed warranty support for UAE buyers.
Ideal for corporate boardrooms in Dubai, training centres in Abu Dhabi, and lecture halls in Sharjah requiring large-format interactive displays.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Dahua ST480 86-inch Interactive Flat Panel – LPH86-ST480-U-S2 specifications
- Colour
- Black (left and right), Lunar Rock Gray (top and bottom)
- Material
- Metal casing, 3.2 mm anti-glare tempered glass
- Mounting Type
- Wall mount or mobile bracket
- In the Box
- Smart interactive whiteboard, 2 stylus pens, remote control, wall mount bracket, wireless plug-in module, power cord, wall-mount screw pack, quick start guide, legal and regulatory information
- Backlight
- DLED
- Bluetooth
- Bluetooth 5.4
- Brightness
- 400 cd/m²
- Processor
- Quad-core A76 + quad-core A55
- Colour Depth
- 10-bit (1.07 billion colours)
- Graphics
- Mali-G610 MC4
- Operating Humidity
- 10% to 90% RH, non-condensing
- Operating Temperature
- 0 to 40 °C
- Operating System
- Android 15
- Power Consumption
- 130 W (typical), 390 W (max)
- Standby Power
- ≤0.5 W
- Product Dimensions
- 1914.9 x 1177.2 x 116.2 mm
- Product Weight
- 58.6 kg
- RAM
- 8 GB
- Refresh Rate
- 60 Hz
- Resolution
- 4K UHD
- Screen Size
- 86"
- SD Card Slot
- 1 × microSD card slot, up to 512 GB
- Speaker Output
- 2 × 10 W + 2 × 20 W
- Storage
- 128 GB
- Touch Points
- 64-point multi-touch (Android and Windows)
- Touch Resolution
- 32768 x 32768
- Touch Response Time
- ≤1.67 ms
- Touch Technology
- Infrared
- Viewing Angle
- 178° (H) / 178° (V)
- VESA Mount
- 800 x 400 mm
- Wi-Fi
- Wi-Fi 6 (802.11 a/b/g/n/ac/ax), station and access point
- Model
- LPH86-ST480-U-S2
- Product Type
- Interactive Flat Panel
- Key Features
- 4K UHD, 10-bit colour, 64-point infrared touch, 16-array microphone, 4 speakers, Android 15, Wi-Fi 6, Bluetooth 5.4
- Aspect Ratio
- 16:9
- Color Gamut
- 90% NTSC
- Contrast Ratio
- 1,200:1
- Frequency Response
- 90 Hz–20 kHz
- Functions
- Pen writing, finger dragging, dual-colour pen, multi-touch, palm erasing, palm rejection
- Input Voltage
- 100–240 V AC, 50/60 Hz
- Polar Pattern
- Omnidirectional
- Ports
- HDMI In × 4 (3 at 4K@60 Hz), HDMI Out × 1 (4K@60 Hz), DP In × 1 (4K@60 Hz), VGA In × 1, USB 3.2 Gen1 Type-A × 4, USB-C × 3, USB 2.0 Type-A × 1, touch USB 2.0 Type-B × 4
- Response Time
- ≤8 ms
- Speaker Configuration
- 2.2 channel, 4 speakers
- Microphone
- 16-array, omnidirectional
- Pickup Range
- 0 to 12 m
Frequently Asked Questions
What is the price of the Dahua ST480 86-inch panel?
Pricing is available by quotation only. SmartScreens.ae provides best-price guarantees and professional quotations including TRN VAT invoicing for UAE businesses.
Can I get a demonstration before purchasing?
Yes. We offer free on-site or virtual demonstrations to help you evaluate the 86-inch display and its Android 15 features for your specific space.
Is professional installation included in the supply?
We provide professional installation services across Dubai, Abu Dhabi, and Sharjah. Our team handles wall mounting or mobile bracket setup according to your site requirements.
Does the unit come with a warranty?
Yes. The product includes manufacturer-backed warranty and after-sales support across the UAE. SmartScreens.ae acts as an authorised reseller to facilitate this.
What are the dimensions and weight of the display?
The panel measures 1914.9 x 1177.2 x 116.2 mm and weighs 58.6 kg. It supports VESA 800 x 400 mm mounting for secure installation.
What operating systems does the panel support?
The unit runs Android 15 natively. It also supports Windows 7/8/10/11 via an external module for comprehensive compatibility with existing software.
