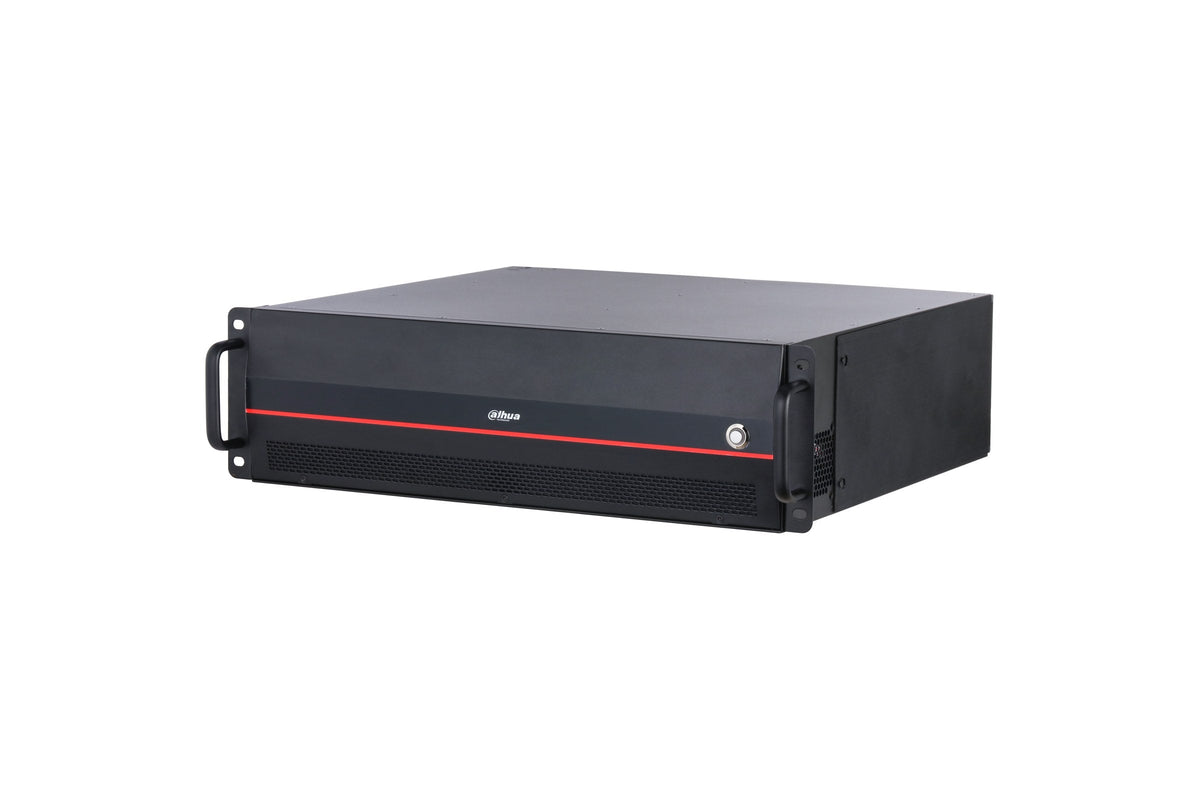

Dahua Matrix Series N70 3U Video Matrix Platform

The Dahua N70 3U Video Matrix Platform is a modular video wall controller for UAE security and broadcast environments. It decodes up to 100 channels and splices video across 36 displays. SmartScreens.ae, an authorised reseller, supplies this 19-inch rack-mounted unit with UAE government VAT invoicing.

This 3U rack-mounted unit uses an ATCA telecommunication-grade architecture with nine slots for expansion cards. It features a 64-bit octa-core processor running embedded Linux for stable operation. The device supports redundant dual power supplies, ensuring reliability in critical machine rooms. Its modular design allows technicians to insert audio and video cards to meet specific project requirements without replacing the entire chassis.

The N70 handles complex video routing by decoding up to 432 channels of HD video at 1080p@25 fps. It supports multiple formats including H.265, H.264, and SVAC. With four HDMI outputs, it can splice signals across up to 36 screens. The system allows for roaming, window opening, and layering, with customizable split layouts including 1, 4, 6, 8, 9, 16, 25, and 36 windows.

Key Features

• High-Density Decoding - Decodes up to 432 HD channels at 1080p@25 fps and splices video across up to 36 screens via four HDMI outputs.
• Modular ATCA Architecture - Built on a 3U 19-inch rack mount with nine slots for audio and video cards, featuring redundant dual power supplies.
• Multi-Format Support - Supports H.265, H.264, SVAC, MPEG4, and MJPEG standards for versatile video wall integration.
• Flexible Control Options - Allows remote management via local GUI, webpage, PC client, mobile client, and network keyboard interfaces.
• Advanced Screen Layouts - Enables splicing, scaling, roaming, and layering with up to 128 customizable presets for different scenes.

SmartScreens.ae provides procurement-ready quotations for this platform, including TRN VAT invoicing for UAE businesses and government entities. We offer free on-site or virtual demonstrations before purchase and professional installation services. The device is backed by a manufacturer warranty and after-sales support across Dubai, Abu Dhabi, Sharjah, and the wider GCC region.

Ideal for: Command centres, security operations rooms, and broadcast studios in Dubai, Abu Dhabi, and Sharjah requiring scalable video wall management.

Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.

Dahua Matrix Series N70 3U Video Matrix Platform specifications

Mounting Type

19-inch rack mount

Audio In

2-channel HDMI embedded

Audio Out

3.5 mm jack; 4 HDMI ports output audio independently

Processor

64-bit octa-core processor

Ethernet (RJ45)

2 × RJ-45 (10/100/1,000 Mbps)

Operating Humidity

10% to 90% RH, non-condensing

Operating Temperature

−10 to +50 °C

Operating System

Linux

Power Consumption

≤140 W

Product Dimensions

484.0 x 132.0 x 477.7 mm

Product Weight

13 kg (net)

Resolution

4K UHD

Serial Port

RS-232 × 2, RS-485 × 1

USB-C

1 × Type-C

USB Ports

USB 3.0 × 2

Model

N70

Product Type

Video Wall Controller

Key Features

Splices up to 36 screens, Decodes up to 100 channels, 4 HDMI outputs, GB28181 and ONVIF interoperability, Redundant dual power, Remote control

Controls

Local GUI, webpage, PC client, mobile client, network keyboard

Inputs

2 video channels: 1 × HDMI 2.0, 1 × HDMI 1.3

Input Voltage

100–127 V AC and 200–240 V AC, 50–60 Hz

Outputs

4 HDMI (2 × HDMI 2.0, 2 × HDMI 1.3)

Protocols

TCP, UDP, RTP, RTSP, RTCP; GB28181, ONVIF, RTSP, Dahua Private, Hikvision Private

Rack Units

3U

Screen Control

Splicing up to 36 screens; roaming, window opening, layering

Storage Conditions

−10 to +50 °C; 10% to 90% RH, non-condensing
