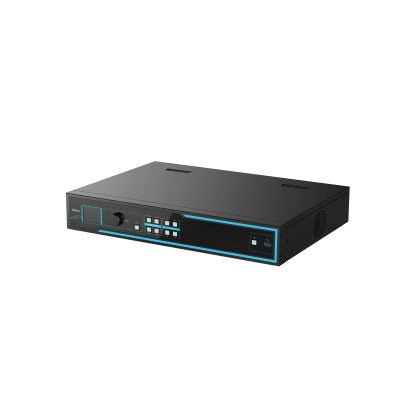

Dahua Matrix Series DSCON2100-0416H 1.5U Embedded Multi-Screen Controller
- 16-ch HDMI output
- 4 HDMI inputs in 3 modes
- Up to 16 screens spliced
- 144 windows with roaming
- H.264 and H.265 decoding
- Scheme tour
The Dahua DSCON2100-0416H is a 1.5U embedded multi-screen controller designed for video wall splicing and management. It handles four HDMI inputs with 4K@60Hz acquisition and provides sixteen HDMI 1.3 outputs. SmartScreens.ae supplies this unit for UAE control rooms, supporting custom EDID and scheme tours.
This embedded Linux device manages complex display layouts through its high-performance processor. It supports up to 1920 x 1080 @ 60 Hz default output, with custom resolutions up to 3840 x 524 pixels. The system decodes H.264 and H.265 streams, allowing flexible window splitting and roaming across the video wall.
Hardware connectivity includes two HDMI 2.0 and two HDMI 1.3 inputs, plus sixteen HDMI 1.3 outputs. Network integration uses a 1 Gbps RJ-45 port, while control interfaces offer two RS-232 ports, one RS-485, and three USB ports. Audio output is available via a 3.5 mm jack, and the unit consumes 60 W maximum.
Key Features
- High-Resolution Output - Provides 16-channel HDMI 1.3 outputs with support for custom resolutions up to 3840 x 524 pixels at 60 Hz.
- Flexible Input Modes - Accepts four HDMI inputs, switching between 1x 4K@60Hz, 2x 4K@30Hz, or 4x 1080p@60Hz acquisition modes.
- Advanced Decoding - Decodes up to four channels of 8 MP @ 30 fps or two channels of 8 MP @ 60 fps using H.264 and H.265.
- Window Management - Splits each screen into up to nine windows with roaming capabilities and supports M x N custom split configurations.
- Control Interfaces - Includes two RS-232 ports, one RS-485 port, and a front LCD knob for quick IP changes, tour control, and status monitoring.
- Network Protocols - Supports ONVIF, Hikvision Private, and Dahua Private protocols for integrated system management over the 1 Gbps Ethernet link.
SmartScreens.ae provides this Dahua controller for UAE IT and facilities teams. The site offers procurement-ready quotations with TRN VAT invoicing for government and enterprise buyers. Supply covers Dubai, Abu Dhabi, and Sharjah, including professional installation and manufacturer-backed warranty support for long-term reliability.
Ideal for: Command centres, UAE government monitoring rooms, and corporate video walls requiring flexible multi-screen splicing and scheduled scheme tours.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Dahua Matrix Series DSCON2100-0416H 1.5U Embedded Multi-Screen Controller specifications
- Audio Out
- 1 × 3.5 mm
- Processor
- High-performance embedded processor
- Ethernet (RJ45)
- 1 × RJ-45, 10/100/1,000 Mbps
- HDMI Input
- 2 × HDMI 2.0, 2 × HDMI 1.3
- HDMI Output
- 16 × HDMI 1.3
- Operating Humidity
- 10% to 95% RH, non-condensing
- Operating Temperature
- -10 to +55 °C
- Operating System
- Linux
- Power Consumption
- 60 W maximum
- Product Dimensions
- 440 x 66 x 321 mm (W x H x D)
- Product Weight
- 4.64 kg (net); 7.36 kg (gross)
- Resolution
- Full HD
- Serial Port
- RS-232 × 2, RS-485 × 1
- USB Ports
- 3 × USB
- Model
- DSCON2100-0416H
- Product Type
- Video Wall Controller
- Key Features
- 16-ch HDMI output, 4 HDMI inputs in 3 modes, up to 16 screens spliced, 144 windows with roaming, H.264 and H.265 decoding, scheme tour
- Application
- Video wall splicing and multi-screen display management
- Audio Codecs
- PCM, G.711
- Input Voltage
- 100–240 V AC, 50/60 Hz
- Ports
- HDMI out × 16, HDMI in × 4, RJ-45 network × 1, RS-232 × 2, RS-485 × 1, USB × 3, 3.5 mm audio out × 1
- Protocols
- ONVIF, Hikvision Private, Dahua Private
- Rack Units
- 1.5U
Need a quotation or bulk pricing? Use Request Best Price above or message our sales team on WhatsApp.
Frequently Asked Questions
Does SmartScreens.ae supply the Dahua DSCON2100-0416H in the UAE?
Yes, SmartScreens.ae supplies the Dahua DSCON2100-0416H across Dubai, Abu Dhabi, and the wider GCC. As an authorised reseller, we provide quotation-based pricing and procurement documentation for UAE businesses and government entities.
Can this controller support 4K inputs?
Yes, the unit supports four HDMI inputs with a maximum resolution of 4K@60 Hz. It allows switching between modes to accommodate one 4K channel, two 4K channels, or four 1080p channels simultaneously.
What is the maximum number of screens this unit can drive?
The DSCON2100-0416H supports up to 16 screens spliced together via its 16 HDMI outputs. It can manage up to 144 windows with roaming capabilities across the entire video wall display.
Does SmartScreens.ae offer installation for this model?
Yes, we provide professional installation services for the Dahua controller throughout the UAE. Clients can also request a free on-site or virtual demonstration before purchase to verify compatibility with their existing AV infrastructure.
What operating system does the Dahua DSCON2100-0416H use?
The device runs on an Embedded Linux operating system with a high-performance embedded processor. This configuration ensures stable operation for video wall splicing, scheme tours, and real-time display management tasks.
What are the physical dimensions and weight of this controller?
The unit measures 440 x 66 x 321 mm and occupies 1.5U rack space. It weighs 4.64 kg net and 7.36 kg gross, making it suitable for standard server racks in UAE data centres and control rooms.
