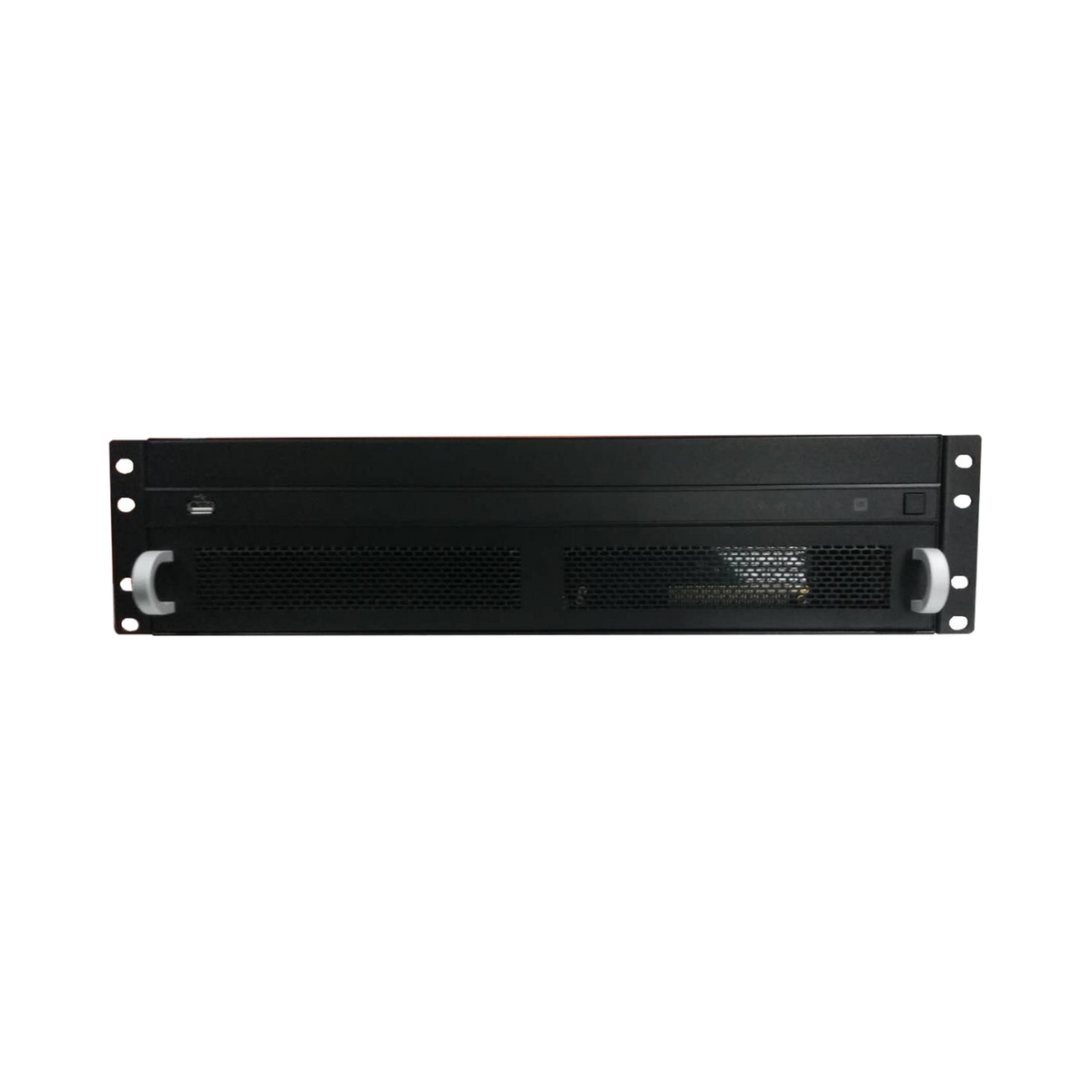

Dahua DSCON3000-M Multi-screen Controller
- 2.5U ATCA chassis
- 32-screen splicing plus 3 extra outputs
- Local 4K HDMI collection
- 2 RJ-45 gigabit ports
- Redundant power optional
- Low-latency synchronization
The Dahua DSCON3000-M is a discontinued 2.5U video wall controller designed for large-scale display integration. It supports up to 32-screen splicing with 4K HDMI input and low-latency synchronization. SmartScreens.ae, an authorised reseller, can confirm availability or recommend current successors for UAE, Dubai, and Abu Dhabi projects.
This 19-inch standard 2.5U ATCA chassis video wall controller manages complex multi-screen environments with high reliability. It features a high-speed passive rear panel and pluggable card modules for flexible configuration. The system supports up to 32 screens plus three additional outputs, handling both analog and digital signals efficiently.
The DSCON3000-M accommodates various input cards, including 2-channel 4K HDMI, 8-channel HDMI, and 4-channel 3G-SDI. Output options include 8-channel HDMI 1.3 and 4-channel 3G-SDI. It ensures excellent synchronization and low latency, making it suitable for control rooms and broadcast facilities requiring stable, real-time video matrix operations.
Key Features
- Splicing Capacity - Supports up to 32-screen splicing and three extra outputs for large video wall configurations.
- 4K HDMI Input - Includes input cards for local 4K HDMI signal collection to achieve high-definition display.
- ATCA Chassis - Built in a 19-inch standard 2.5U ATCA industry box with a reliable passive rear panel design.
- Signal Decoding - Decodes up to 16 channels of 1080P@25fps or 64 channels of D1@25fps via the main control board.
- Network Control - Features two RJ-45 gigabit ports for matrix control, preview, and remote management operations.
- Flexible I/O - Accepts 2-ch HDMI 4K, 8-ch HDMI, 4-ch DVI-I, and 4-ch 3G-SDI input cards for versatile connectivity.
Power consumption ranges from 90 W in the minimum system to 360 W when fully configured, with optional redundant power supplies. The unit weighs up to 12.5 kg and operates in temperatures from -10 to +55 °C. SmartScreens.ae offers professional installation, manufacturer-backed warranty, and after-sales support across the UAE.
Ideal for: Control rooms, broadcast studios, and security operations centers in Dubai and Abu Dhabi requiring reliable multi-screen video matrix processing.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Dahua DSCON3000-M Multi-screen Controller specifications
- Mounting Type
- 19-inch standard 2.5U ATCA chassis
- Operating Humidity
- 10% to 90% RH
- Operating Temperature
- -10 to +55 °C
- Operating System
- Linux
- Power Consumption
- 90 W minimum system; 360 W fully configured
- Product Dimensions
- 482.6 x 111.9 x 436.8 mm (W x H x D)
- Product Weight
- 12.5 kg maximum (fully configured)
- Resolution
- 4K UHD
- Serial Port
- 3 × RS-232 (RJ-45), 1 × RS-485
- Model
- DSCON3000-M
- Product Type
- Video Wall Controller
- Key Features
- 2.5U ATCA chassis, 32-screen splicing plus 3 extra outputs, local 4K HDMI collection, 2 RJ-45 gigabit ports, redundant power optional, low-latency synchronization
- Controls
- PC client, network keyboard, iPad
- Inputs
- Input cards: 2-ch HDMI 4K, 8-ch HDMI, 4-ch DVI-I, 4-ch 3G-SDI, 32-ch CVBS
- Input Voltage
- 115–230 V AC, 47–63 Hz (redundant power optional)
- Outputs
- Output cards: 8-ch HDMI 1.3, 4-ch 3G-SDI; main control board: 3-ch HDMI 1.3
- Ports
- RJ-45 × 2 (1000M), RS-232 × 3 (RJ-45), RS-485 × 1, USB 2.0 × 1, USB 3.0 × 2
- Rack Units
- 2.5U
Need a quotation or bulk pricing? Use Request Best Price above or message our sales team on WhatsApp.
Frequently Asked Questions
Is the Dahua DSCON3000-M still available for purchase?
This model is discontinued. SmartScreens.ae can confirm current availability or recommend the latest successor model that meets your specific splicing and resolution requirements for UAE projects.
What is the maximum screen splicing capacity?
The DSCON3000-M supports a maximum of 32-screen splicing plus three additional outputs, allowing for extensive video wall configurations in large-scale installations.
Does it support 4K HDMI input?
Yes, the controller supports 4K HDMI input via dedicated input cards, enabling high-definition signal collection and display on compatible screens within the video wall.
Can you provide installation services in the UAE?
Yes, we offer professional installation services for the Dahua DSCON3000-M across Dubai, Abu Dhabi, Sharjah, and the wider GCC, ensuring proper setup and integration.
Is a demonstration available before purchase?
Yes, we provide free on-site or virtual demonstrations to showcase the controller’s capabilities and help you evaluate its suitability for your specific video wall project.
What warranty and support are included?
The product comes with manufacturer-backed warranty and after-sales support across the UAE, which we facilitate as part of our procurement and supply process for enterprise clients.
