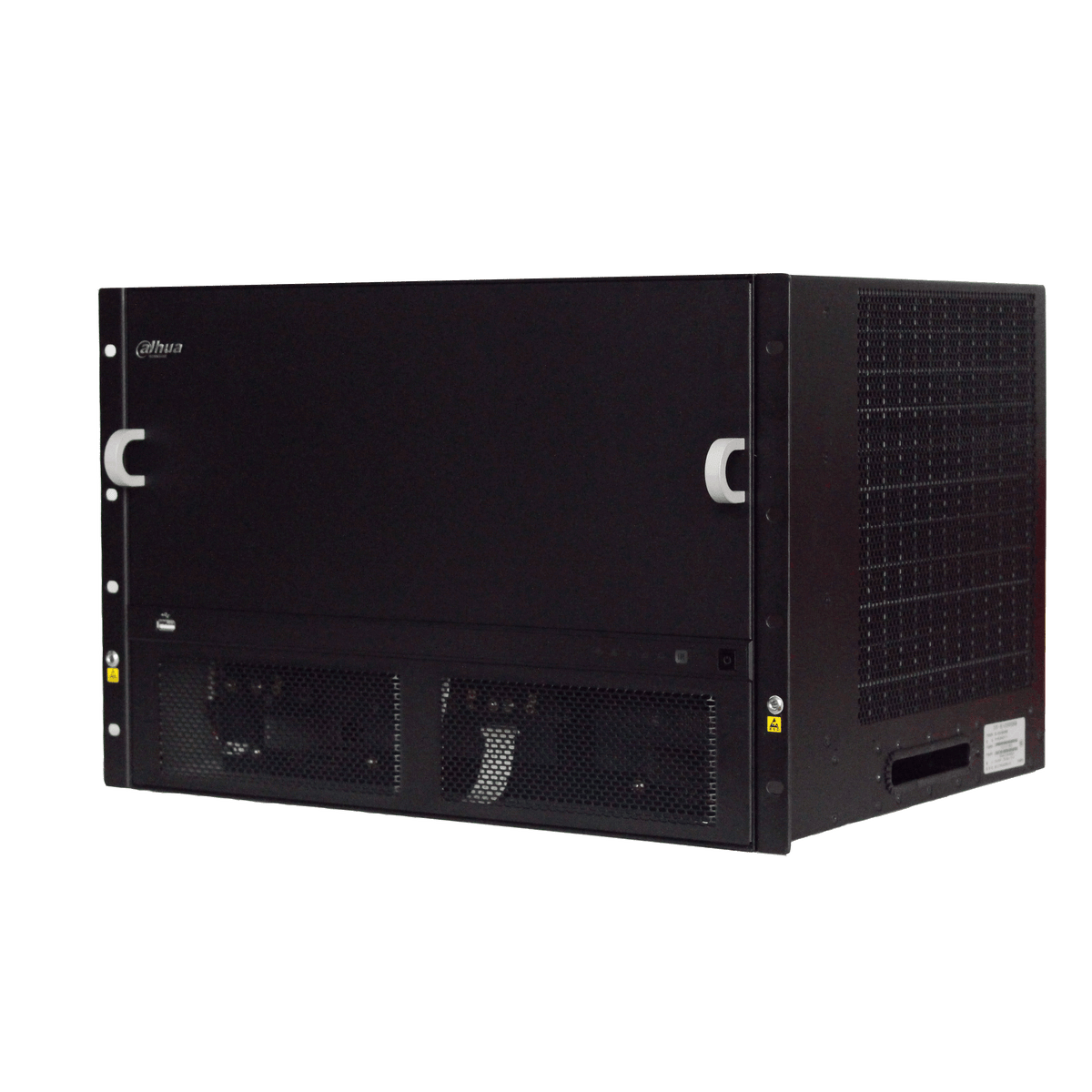

Dahua DSCON3000-7U 7U Video Wall Controller
- 7U ATCA chassis
- Pluggable card modules
- 320-ch 1080P decoding (fully configured)
- 4K/30 fps inputs and outputs
- Splicing up to 160 LCD units
- Redundant power optional
The Dahua DSCON3000-7U is a 7U ATCA multi-screen controller designed for large-scale video wall deployments. It supports up to 320 channels of 1080P decoding and 4K/30fps signal processing. SmartScreens.ae supplies this discontinued model with available stock confirmation and professional installation services across the UAE.
This 19-inch standard 7U ATCA chassis houses pluggable card modules for flexible signal configuration. It accommodates various input cards including HDMI, DVI-I, and 3G-SDI. The system utilizes an FPGA array framework with an ultrahigh bandwidth switch matrix for reliable data exchange. It supports both analog and digital video signal inputs alongside matrix outputs.
Processing capabilities include 320ch@1080P or 1280ch@D1 decoding in full configuration. Outputs support 4K/30fps signals via HDMI 1.4 or 3G-SDI cards. The controller allows remote casting of analog/digital video onto the video wall. It features redundant power options and smart temperature-controlled fans for stability in high-load environments.
Key Features
- Chassis Design - 19-inch standard 7U ATCA industry box with high-speed passive rear panel.
- Decoding Capacity - Up to 320ch@1080P or 1280ch@D1 signal decoding when fully configured.
- 4K Processing - Supports 4K/30fps video inputs and non-compressed digital signal encoding outputs.
- Input Flexibility - Compatible with input cards for 2-ch HDMI 4K, 4-ch DVI-I, and 4-ch 3G-SDI.
- Output Options - Output cards include 4-ch HDMI 1.4 (4K), 8-ch HDMI 1.3, and 4-ch 3G-SDI.
- Control Interface - Manage via PC client, local GUI, network keyboard, or iPad remote applications.
- Connectivity - Includes 2 RJ-45 ports, 4 RS-232, 1 RS-485, and USB 2.0/3.0 interfaces.
- Power Management - 90W minimum to 590W fully configured with optional redundant power supply.
The DSCON3000-7U operates on Embedded Linux with an Intel X86 Baytrail microprocessor. It connects via RJ-45, RS-232, and USB ports for PC, iPad, or network keyboard control. SmartScreens.ae provides quotation-based pricing for this hardware. We offer free demonstrations and manufacturer-backed warranty support for UAE government and enterprise clients.
Ideal for: Large-scale command centers, security operations rooms, and corporate video walls in Dubai and Abu Dhabi requiring high-density signal decoding.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Dahua DSCON3000-7U 7U Video Wall Controller specifications
- Mounting Type
- 19-inch standard 7U ATCA chassis
- Processor
- Intel X86 Baytrail microprocessor
- Operating Humidity
- 10% to 90% RH
- Operating Temperature
- -10 to +55 °C
- Operating System
- Linux
- Power Consumption
- 90 W minimum system; 590 W fully configured
- Product Dimensions
- 482.6 x 310 x 434 mm (W x H x D)
- Product Weight
- 35 kg maximum (fully configured)
- Resolution
- 4K UHD
- Serial Port
- 4 × RS-232 (1 DB9, 3 RJ-45), 1 × RS-485
- Model
- DSCON3000-7U
- Product Type
- Video Wall Controller
- Key Features
- 7U ATCA chassis, pluggable card modules, 320-ch 1080P decoding (fully configured), 4K/30 fps inputs and outputs, splicing up to 160 LCD units, redundant power optional, remote cast
- Compatibility
- IPC, NVR, EVS and other network devices
- Controls
- PC client, local GUI, network keyboard, iPad
- Inputs
- Input cards: 2-ch HDMI 4K, 4-ch HDMI, 8-ch HDMI, 4-ch DVI-I, 4-ch 3G-SDI, 32-ch CVBS
- Input Voltage
- 100–120 V AC and 200–240 V AC (redundant power optional)
- Outputs
- Output cards: 4-ch HDMI 1.4 (4K), 8-ch HDMI 1.3, 4-ch 3G-SDI, 8-ch HD-SDI
- Ports
- RJ-45 × 2 (1000M), RS-232 × 4, RS-485 × 1, USB 2.0 × 3, USB 3.0 × 1
- Protocols
- TCP, UDP, RTP, RTSP, RTCP
- Rack Units
- 7U
Need a quotation or bulk pricing? Use Request Best Price above or message our sales team on WhatsApp.
Frequently Asked Questions
Is the Dahua DSCON3000-7U available for purchase in the UAE?
Yes, SmartScreens.ae supplies this discontinued model. We confirm current availability and lead times directly in your quotation. We also recommend the current successor if you require new stock. Procurement-ready documentation is provided for UAE businesses.
Does SmartScreens.ae offer installation for this controller?
Yes, we provide professional installation services across Dubai, Abu Dhabi, and Sharjah. This includes mounting the 7U chassis and configuring the pluggable card modules. We also offer free on-site or virtual demonstrations before you commit to the purchase.
What is the maximum decoding capacity of the DSCON3000-7U?
In a fully configured state, the unit supports 320 channels of 1080P decoding or 1,280 channels of D1 decoding. This capacity depends on the specific input and output cards installed in the pluggable module slots.
Can this controller output 4K signals to the video wall?
Yes, the system supports 4K/30fps video inputs and outputs. You must install the compatible output cards, such as the 4-ch HDMI 1.4 (4K) or 4-ch 3G-SDI cards, to utilize these high-resolution capabilities.
How is the device controlled remotely?
You can control the DSCON3000-7U via a PC client, local GUI, network keyboard, or iPad. The unit supports remote cast, reboot, upgrade, and default setting operations through its network interfaces.
What warranty coverage is included?
We provide manufacturer-backed warranty and after-sales support across the UAE. Our team handles all compliance documentation for enterprise and government procurement. Contact us for specific warranty terms associated with your quotation.
