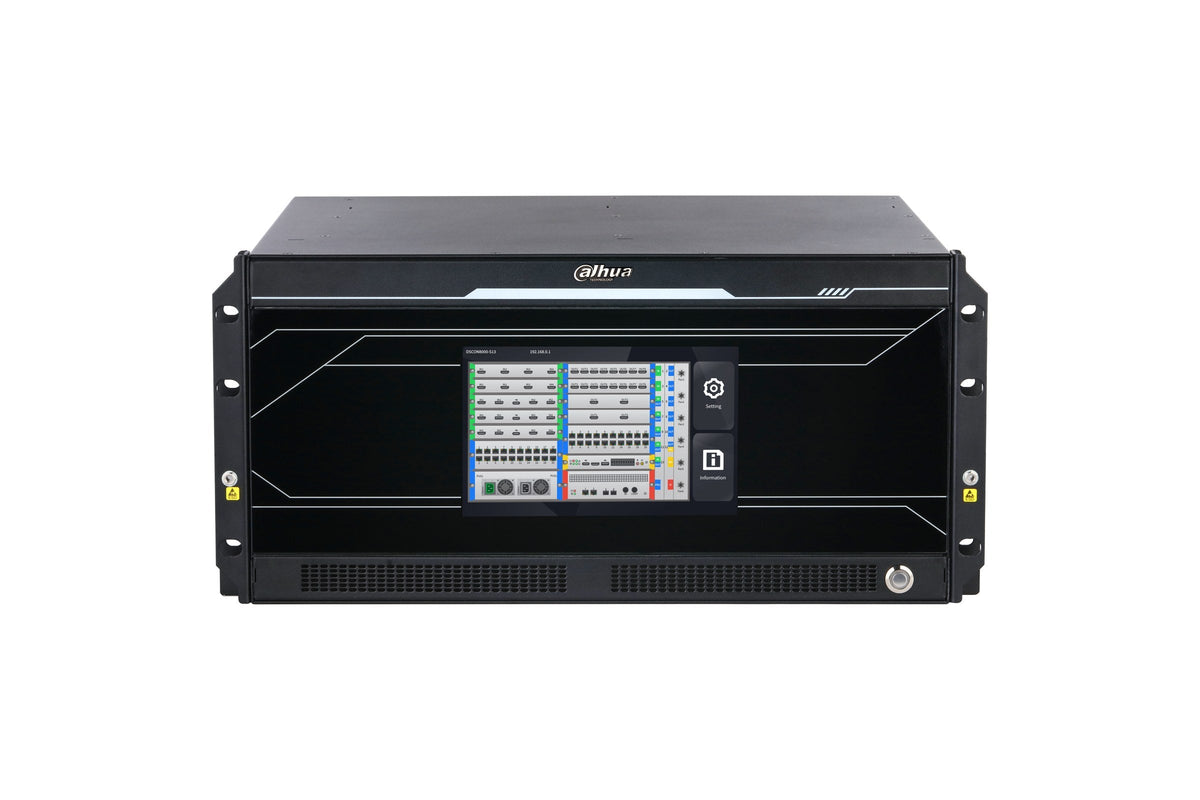

Dahua DSCON Matrix 5U Splicing Controller – DSCON8000-S13
- 5U rack-mount
- 13 slots
- 8-inch touch screen
- 36-channel 1080p single-card decoding
- 128 scene presets
- 4K acquisition
The Dahua DSCON8000-S13 is a 5U rack-mount video wall controller designed for high-density display management. It features 13 expansion slots and 4K output capabilities. SmartScreens.ae supplies this unit across Dubai, Abu Dhabi, and Sharjah with professional installation and UAE VAT invoicing.
This embedded Linux-based processor handles complex video wall configurations for corporate and government venues. The 5U chassis provides 13 slots for flexible I/O expansion, allowing integration of HDMI 2.0, DP, and LED sending cards. It acquires signals up to 4096 x 2160 @ 30 Hz and outputs up to 60 Hz, ensuring crisp presentation in conference halls and exhibition spaces.
Operation is simplified by an integrated 8-inch touchscreen with 1280 x 800 resolution, alongside remote control via web, desktop, or mobile clients. The system supports 128 scene presets for rapid layout switching, splicing, scaling, and roaming. Intelligent fan cooling and hot-swappable power supplies maintain stability in demanding environments across the GCC.
Key Features
- Expansion Architecture - The 5U rack-mount unit offers 13 slots, configured as 2 input, 6 output, and 5 flexible slots for input or output cards.
- 4K Signal Handling - Acquires video up to 4096 x 2160 @ 30 Hz and outputs up to 4096 x 2160 @ 60 Hz via HDMI 2.0 or LED sending ports.
- Control Interfaces - Features an 8-inch touchscreen, plus control via webpage, desktop client, mobile client, and network keyboard for remote management.
- Scene Management - Stores up to 128 presets for instant switching between splicing, scaling, and roaming layouts tailored to specific presentation needs.
- I/O Connectivity - Includes HDMI, DP, RJ-45 LED sending, USB 3.0, Type-C, RS-232/485, Gigabit Ethernet, and gigabit fiber ports for versatile integration.
- Reliability Features - Equipped with intelligent temperature-controlled fans and optional dual hot standby main controls and redundant power supplies for critical uptime.
- Visual Customisation - Supports layering, window opening, and customisable subtitles with adjustable font style, colour, and background for clear information display.
- Physical Specifications - Dimensions are 484 x 222 x 416 mm with a net weight of 14.93 kg, designed for standard equipment rack mounting in technical rooms.
Procure FZE, operating as SmartScreens.ae from Dubai Silicon Oasis, offers authorised distribution of this Dahua series. We provide quote-based pricing with a best-price guarantee for UAE businesses. Our services include free virtual or on-site demonstrations, professional installation, and manufacturer-backed warranty support for all government and enterprise accounts.
Ideal for UAE IT managers deploying video walls in conference halls, exhibition centres, and command and control rooms in Dubai and Abu Dhabi.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Dahua DSCON Matrix 5U Splicing Controller – DSCON8000-S13 specifications
- Audio In
- 3.5 mm jack (reserved); embedded HDMI and DP audio on inputs
- Audio Out
- 1 × 3.5 mm jack and 1 set of spring-loaded terminal blocks
- Processor
- High-performance multi-core processor
- Ethernet (RJ45)
- 2 × Gigabit Ethernet, 2 × gigabit fiber
- HDMI Output
- 8 × HDMI 1.3, 2 × HDMI 2.0
- Operating Humidity
- 10% to 90% RH, non-condensing
- Operating Temperature
- -10 to +50 °C
- Operating System
- Linux
- Power Consumption
- 550 W maximum
- Product Dimensions
- 484 x 222 x 416 mm (W x H x D)
- Product Weight
- 14.93 kg (net); 20.6 kg (gross)
- Resolution
- 4K UHD
- Serial Port
- RS-232 × 2, RS-485 × 2
- Touch Resolution
- 1280 x 800
- USB-C
- 1 × Type-C
- USB Ports
- 1 × USB 3.0
- Model
- DSCON8000-S13
- Product Type
- Video Wall Controller
- Key Features
- 5U rack-mount, 13 slots, 8-inch touch screen, 36-channel 1080p single-card decoding, 128 scene presets, 4K acquisition, optional dual hot standby, SDK
- Application
- Video walls, conference halls, exhibition halls, meeting rooms, outdoor advertising venues
- Controls
- Front touch screen, external monitor and mouse, webpage, desktop and mobile clients, network keyboard
- Expansion
- 13 slots (2 input, 6 output, 5 either)
- Functions
- Splicing, scaling, roaming, window opening, layering, subtitles, 128 scene presets
- Inputs
- Video input cards: 4-ch HDMI 1.4, 8-ch HDMI 1.4, 2-ch HDMI 2.0 or DP 1.2, 4-ch HDMI 2.0 or DP 1.2
- Input Voltage
- 100–240 V AC, 50–60 Hz, 8 A, hot-swappable power supply
- Outputs
- Video output: 20-ch RJ-45 (LED sending), 8-ch HDMI 1.3, 2-ch HDMI 2.0
- Ports
- HDMI × 1, USB 3.0 × 1, Type-C × 1, 3.5 mm audio in × 1 (reserved), 3.5 mm audio out × 1, RS-232 × 2, RS-485 × 2, Gigabit Ethernet × 2, gigabit fiber × 2
- Rack Units
- 5U
- Storage Conditions
- -10 to +50 °C; 10% to 90% RH, non-condensing
- Touchscreen
- 8-inch touch screen
Need a quotation or bulk pricing? Use Request Best Price above or message our sales team on WhatsApp.
Frequently Asked Questions
Can I buy the Dahua DSCON8000-S13 in the UAE?
Yes, SmartScreens.ae supplies the Dahua DSCON8000-S13 across Dubai, Abu Dhabi, Sharjah, and the wider GCC. We provide procurement-ready quotations with TRN VAT invoicing for UAE businesses and government entities, ensuring compliant purchasing for your project.
Does SmartScreens.ae offer installation services?
Yes, we provide professional installation for all video wall controllers supplied to UAE clients. Our team handles the physical mounting and configuration, ensuring the device integrates correctly with your existing LED or LCD display infrastructure across your facility.
Can I see a demo before purchasing?
Yes, we offer a free on-site or virtual demonstration before purchase. This allows your technical team to evaluate the 4K output capabilities, scene presets, and control interface in a real-world context relevant to your specific venue requirements.
What is the warranty coverage?
The product comes with manufacturer-backed warranty and after-sales support across the UAE. SmartScreens.ae facilitates this support, ensuring you have access to technical assistance and replacement parts through our authorised reseller status.
Is pricing available online?
No, pricing is by quotation only. We provide best-price guarantee quotations tailored to your project scope, including delivery and installation costs. Contact our team for a detailed commercial proposal specific to your requirements.
What expansion slots are available?
The 5U chassis includes 13 slots: 2 dedicated for input cards, 6 for output cards, and 5 flexible slots that can be configured for either input or output depending on your video wall configuration needs.
