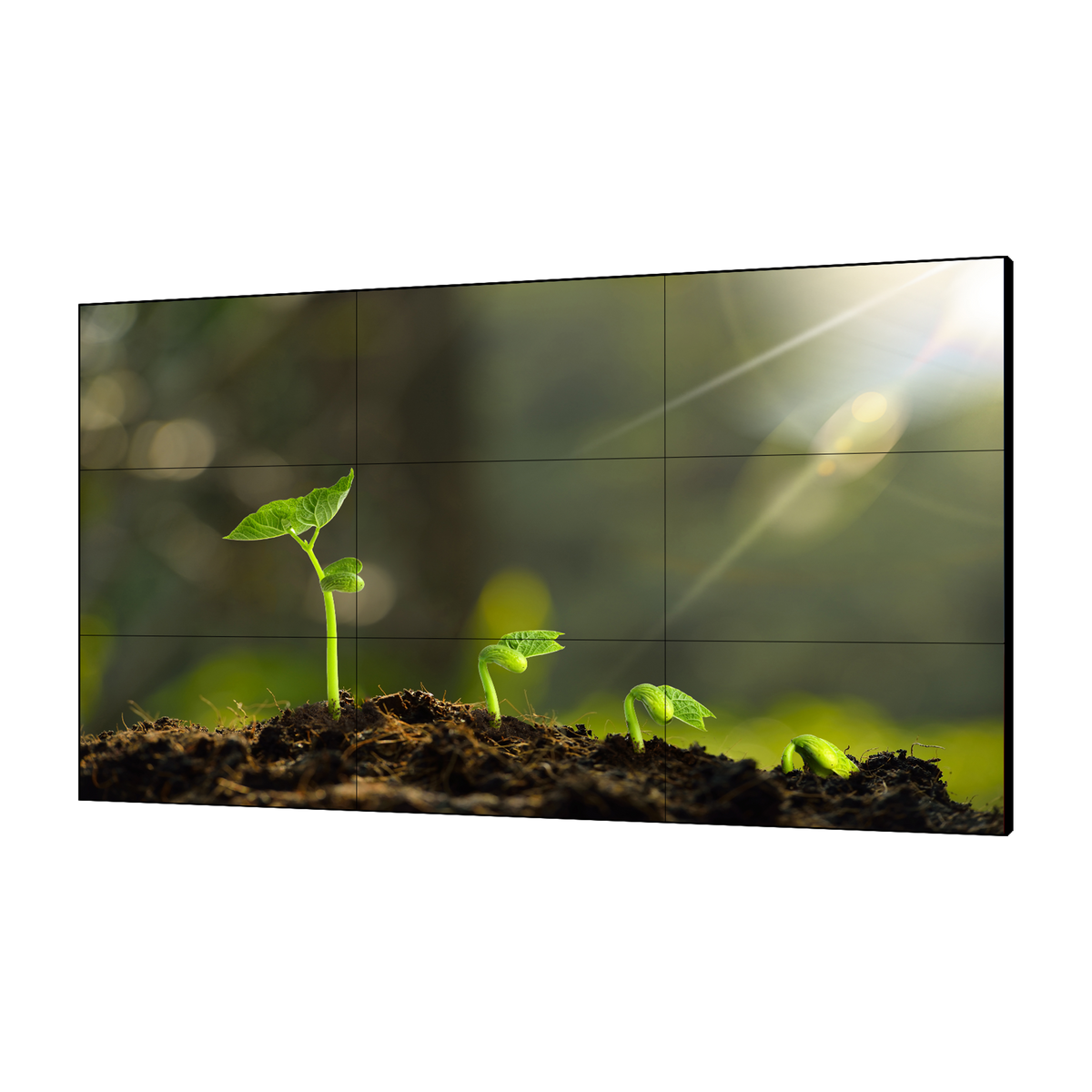

Dahua Basic Series 55-inch Video Wall Display Unit – LS550UCM-BF
- ADS panel
- 24/7 operation
- Ultra-narrow 3.5 mm bezel-to-bezel
- Anti-glare surface
- 3D noise reduction
- Picture splicing
The Dahua LS550UCM-BF is a 55-inch Full HD video wall display designed for continuous 24/7 operation in professional environments. It features an ultra-narrow 3.5mm bezel and ADS panel technology for clear viewing angles. SmartScreens.ae supplies this unit across the UAE with installation and support.
This 55-inch display utilises an ADS panel to deliver a resolution of 1920×1080 with a brightness of 500 cd/m². The unit is engineered for industrial-level reliability, ensuring stable performance during extended use. Its modular structure allows for flexible deployment in various commercial settings, meeting the demands of high-uptime operations.
Connectivity options include HDMI, DVI-D, VGA, and CVBS inputs, alongside RS232 control for system integration. The display supports dual-mode control via infrared and RS232, enabling remote management through a computer. This flexibility makes it suitable for complex video wall configurations where precise control is required.
Key Features
- Ultra-Narrow Bezel - Features a 3.5mm bezel-to-bezel design with 2.3mm top/left and 1.2mm bottom/right edges for seamless image continuity.
- ADS Panel Technology - Utilises an industrial ADS LCD panel for 178° horizontal and vertical viewing angles and vivid image quality.
- 24/7 Operation - Built for continuous industrial use with professional thermal design to extend device lifespan and ensure reliability.
- Multiple Inputs - Equipped with HDMI, DVI-D, VGA, CVBS, and USB ports to accommodate various signal sources and connectivity needs.
- Dual Control Mode - Supports control via infrared remote and RS232 serial communication, allowing for computer-based remote management.
- Flexible Mounting - Designed with modular structure for both wall-mounted and floor-standing installation using VESA 600×400mm pattern.
- Low Power Consumption - Operates with typical power consumption of 130W and standby power under 0.5W for energy-efficient performance.
- Compact Dimensions - Product dimensions are 1213.7mm width, 684.5mm height, and 85.9mm depth, with a net weight of 18.5kg.
SmartScreens.ae provides this Dahua model as part of our authorised reseller services for businesses in the UAE. We offer procurement-ready quotations with TRN VAT invoicing for government and enterprise clients. Our team supports the entire process, from free virtual demonstrations to professional installation and manufacturer-backed warranty coverage across Dubai, Abu Dhabi, and Sharjah.
Ideal for small-scale control rooms, meeting rooms, and commercial displays in UAE offices and facilities requiring reliable, continuous visual output.
Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.
Dahua Basic Series 55-inch Video Wall Display Unit – LS550UCM-BF specifications
- Backlight
- Direct LED
- Brightness
- 500 cd/m²
- Operating Humidity
- 10% to 80% RH
- Operating Temperature
- 0 to 50 °C
- Power Consumption
- 130 W (typical), 166 W (max)
- Standby Power
- < 0.5 W
- Product Dimensions
- 1213.7 x 684.5 x 85.9 mm
- Product Weight
- 18.5 kg
- Refresh Rate
- 60 Hz
- Resolution
- Full HD
- Screen Size
- 55"
- Surface Protection
- Anti-glare, 3H hardness, haze 25%
- VESA Mount
- 600 x 400 mm, M6
- Model
- LS550UCM-BF
- Product Type
- Video Wall Display
- Key Features
- ADS panel, 24/7 operation, ultra-narrow 3.5 mm bezel-to-bezel, anti-glare surface, 3D noise reduction, picture splicing, factory color calibration, IR and RS-232 control
- Aspect Ratio
- 16:9
- Bezel Size
- 3.5 mm (panel-to-panel gap)
- Contrast Ratio
- 1,200:1
- Country Of Origin
- China
- Inputs
- CVBS (BNC), VGA, DVI-D, HDMI, RS-232, USB, IR
- Operating Hours
- 24/7
- Panel Technology
- ADS
- Response Time
- 8 ms (GtG)
Need a quotation or bulk pricing? Use Request Best Price above or message our sales team on WhatsApp.
Frequently Asked Questions
What is the bezel width of the Dahua LS550UCM-BF?
The bezel width is 3.5mm overall. Specifically, the top and left bezels are 2.3mm, while the bottom and right bezels are 1.2mm wide. This ultra-narrow design minimises visual interruption in video wall configurations.
Can I get a demonstration of this display in Dubai or Abu Dhabi?
Yes. SmartScreens.ae offers free on-site or virtual demonstrations before purchase. This allows your IT or procurement team to verify the display's image quality and connectivity options in your specific environment before committing to a purchase.
Does SmartScreens.ae provide installation services for this unit?
Yes. We provide professional installation services across the UAE, including Dubai, Abu Dhabi, and Sharjah. Our team handles the mounting and setup, ensuring the display is securely installed and correctly configured for your facility.
Is this product available for immediate purchase?
Availability depends on current stock levels. Contact our team to confirm availability or to discuss the current successor model if this specific unit is discontinued. We can provide a quotation based on real-time stock status for your project.
What warranty coverage is included with this Dahua display?
The product comes with manufacturer-backed warranty and after-sales support across the UAE. SmartScreens.ae facilitates this support, ensuring you have access to necessary repairs or replacements through our authorised reseller network for peace of mind.
How is pricing handled for UAE government or enterprise buyers?
Pricing is provided via quotation with a best-price guarantee. We issue procurement-ready quotations that include TRN VAT invoicing, fully compliant with UAE government and enterprise procurement requirements. Contact us for a detailed quote tailored to your needs.
