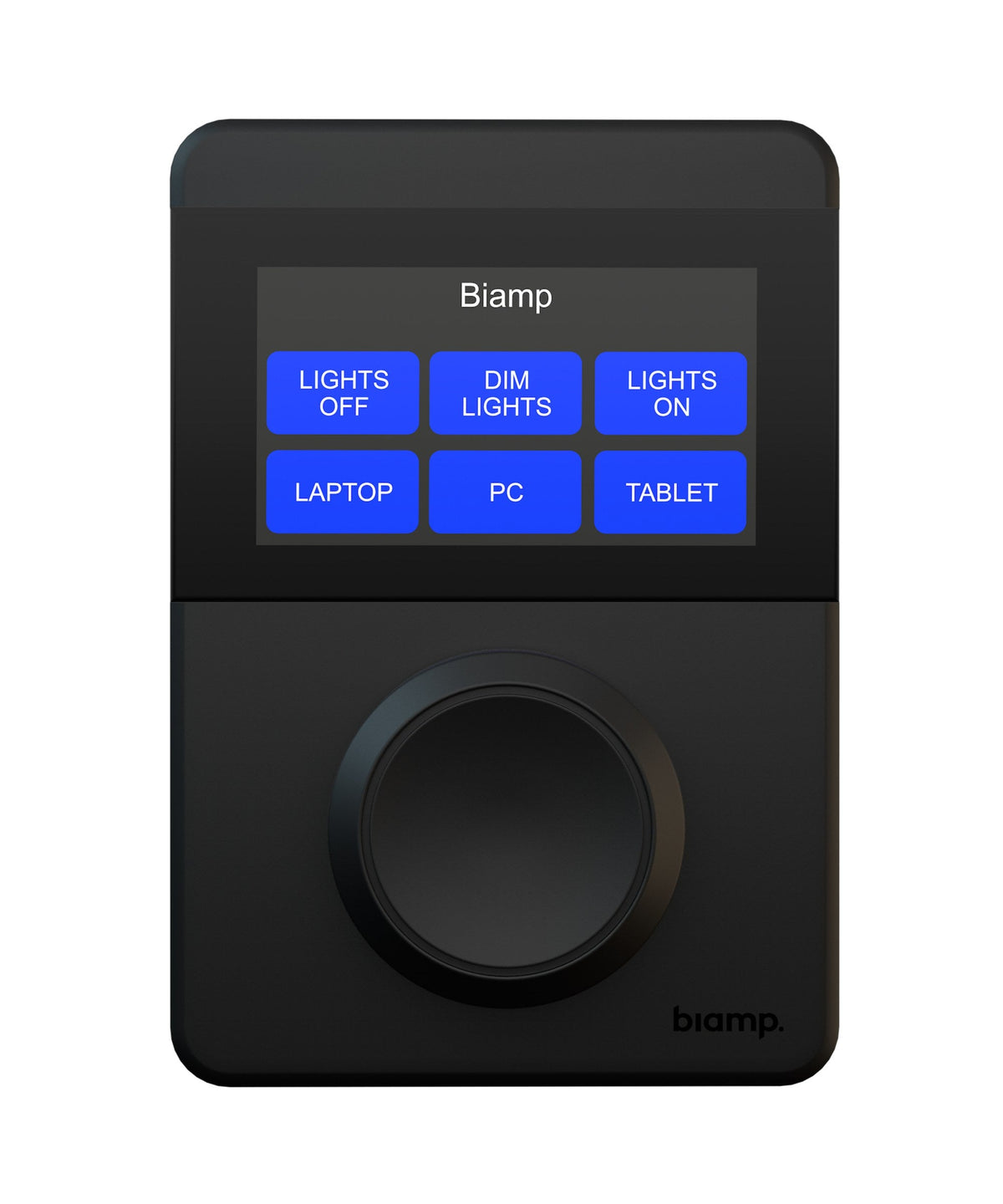

Biamp Apprimo TEC-X 1000 Touch Control Panel – 920-10692-10000

The Biamp Apprimo TEC-X 1000 is a networked room control panel designed for meeting rooms and AV spaces. It features a 2.9-inch high-contrast capacitive touch LCD and rotary encoder, powered by PoE. SmartScreens.ae supplies this TAA-compliant device to IT managers and procurement teams in Dubai, Abu Dhabi, and Sharjah, offering free virtual demonstrations and professional installation.

This white touch control panel integrates directly with Biamp Tesira systems via Ethernet, simplifying AV management. The 2.9-inch high-contrast capacitive touch LCD ensures clear visibility of status messages and on-screen text. Users interact with the interface through a dedicated rotary encoder for level adjustments and up to six programmable on-screen buttons. The unit weighs 159 g and operates within a 0 to 40 °C range, making it suitable for standard office environments.

Installation is streamlined by Power over Ethernet (IEEE 802.3at Class 3), allowing a single CAT5e or CAT6 cable to deliver both power and data. The device supports daisy-chaining of up to four units, reducing cabling complexity in larger conference rooms. An assignable RGB LED status bar provides visual feedback for mute states and system status. Brightness adjusts automatically to ambient light levels, ensuring the display remains readable without manual intervention.

Key Features

• Capacitive Touch Interface - 2.9-inch high-contrast capacitive touch LCD with auto-adjusting brightness.
• PoE Power Supply - Powered via IEEE 802.3at Class 3 over a single CAT5e/CAT6 cable.
• Rotary Encoder Control - Dedicated knob for incrementing and decrementing level controls.
• Daisy Chain Capability - Supports connecting up to four devices together for multi-room control.
• Programmable Buttons - Up to six on-screen buttons with functions programmed via Tesira software.
• Status LED Feedback - Assignable RGB LED bar provides optional mute and system state feedback.
• TAA Compliant - Certified for US Trade Agreement Act compliance and international safety standards.
• Tesira Integration - Fully compatible with Biamp Tesira systems using all TTP commands.

Configuration is handled through Biamp Tesira design software, which allows administrators to program control functions for the on-screen buttons and rotary knob. The panel supports all TTP commands, ensuring comprehensive control over connected AV equipment. It carries TAA compliance, CE marking, and UL listing, meeting rigorous safety and trade standards. SmartScreens.ae, as an authorised reseller, provides manufacturer-backed warranty and after-sales support across the UAE for this reliable control solution.

Ideal for: UAE meeting rooms and conference halls requiring intuitive Biamp Tesira system control and room booking management.

Request a quote: call +971 4 546 5041, message WhatsApp, or email info@procure.ae. SmartScreens.ae (part of Procure FZE), Dubai Silicon Oasis, UAE.

Biamp Apprimo TEC-X 1000 Touch Control Panel – 920-10692-10000 specifications

Colour

White

Ethernet (RJ45)

RJ-45, Cat 5e and above

Operating Temperature

0 to 40 °C

Power Consumption

< 2 W (maximum)

Product Weight

159 g

Screen Size

2.9"

Touch Technology

PCAP

Warranty

5 years

Model

Apprimo TEC-X 1000

Product Type

Room Control Panel

Key Features

PoE powered, 2.9-inch capacitive touch LCD, rotary encoder, ambient light brightness, RGB LED status bar, daisy chain up to four devices, Tesira design software programming, TAA compliant

Application

Meeting room booking and AV room control

Compatibility

Biamp Tesira systems

Controls

Rotary knob; up to six on-screen buttons

Display Type

High-contrast capacitive touch LCD

PoE

PoE (IEEE 802.3at Class 3, 15 W)

Protocols

TTP (all commands)

Certifications

TAA compliant, CE marked, UL and C-UL listed, FCC Part 15B, RoHS
