Ports & Connectivity on an Interactive Panel: HDMI, USB-C & the OPS Slot

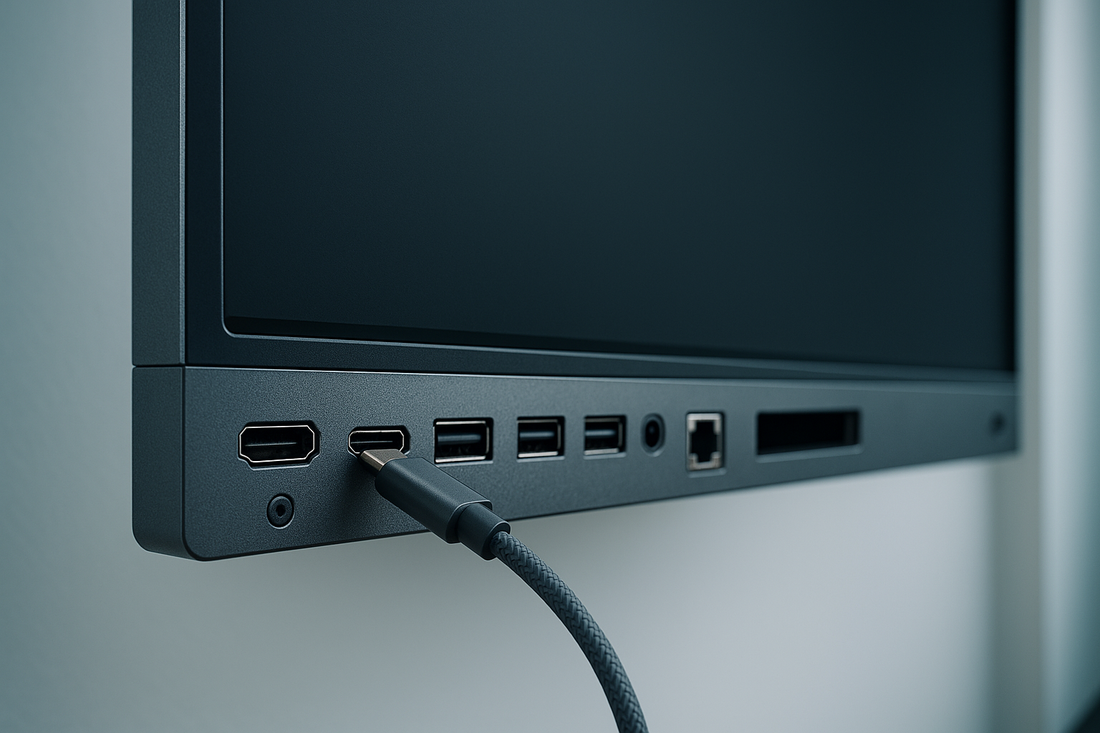

Most interactive panel problems are not screen problems at all, they are cable problems. A panel arrives with a row of sockets along its side or rear, each one doing a slightly different job, and the person installing it often has fifteen minutes and no manual. Get the ports right and the room simply works: one cable, picture up, touch responding. Get them wrong and you spend the next year fielding complaints about missing sound, dead touch and rooms that only work with one particular laptop. This guide walks through what each port is for, in the order you are likely to need it.

1. The short version of what each port does

Panels vary, but the socket set is fairly standardised across brands. Here is the working vocabulary you need before you look at a spec sheet.

• HDMI in — carries picture and sound from a laptop, media player or room PC into the panel. Most panels have two or three, and they are not always identical: one is often the highest-bandwidth port and sits behind the front-facing input.
• Touch USB out — usually a USB-B or USB-A socket labelled to pair with a specific HDMI input. This is the cable that sends touch data back to the connected computer. HDMI alone will never give you touch.
• USB-C — the modern all-in-one option. On a panel that supports it properly, a single cable carries video in, touch data back, and power to charge the laptop.
• USB-A — general-purpose ports for flash drives, wireless dongles, keyboards and mice. Some are wired to the panel's Android side, some switch to whatever source is active. Worth testing on install.
• RJ45 network — wired Ethernet. Slower to install than Wi-Fi and far more reliable for a panel that lives on a wall for five years.
• HDMI out — mirrors the panel's picture to a second display. Useful in long rooms and lecture theatres.
• Audio out and SPDIF — feed a soundbar or room audio system. Analogue 3.5mm on almost every panel, optical on many.
• RS232 and USB service ports — control and maintenance. RS232 lets a room control system power the panel on and off and switch inputs.

2. HDMI: version numbers, cable length and why the picture drops

HDMI is the workhorse and also the most common source of complaints. The version supported by a given input decides the maximum resolution and refresh rate it can carry. For a 4K panel you want an input and a cable rated for 4K at 60Hz, not 4K at 30Hz, because 30Hz makes cursor movement and video look noticeably stuttery once you are close to the screen.

Cable length matters more than people expect. Passive HDMI cables become unreliable at 4K beyond roughly five metres, and the failure mode is rarely a clean one. Instead of no picture you get sparkle, intermittent black frames, or a signal that works on a laptop and fails on a room PC. If the run from the table to the wall is longer than that, use an active or fibre optic HDMI cable rated for the resolution, or move the source next to the panel. Our cables and adapters range covers the lengths and ratings used in most meeting rooms and classrooms.

3. USB-C: what “single cable” really means

USB-C is the reason modern rooms feel simpler than rooms built five years ago. One connector can carry a video signal using DisplayPort Alt Mode, return touch data as a normal USB device, and deliver power back to the laptop. A presenter walks in, plugs one cable in, and the panel shows their screen, responds to touch and charges their machine.

Two details decide whether that promise holds. First, the panel's USB-C port must actually support DisplayPort Alt Mode; some USB-C sockets on cheaper panels are data and power only. Second, power delivery is a specified wattage, commonly 65W on business panels. A 65W supply comfortably runs an ultrabook but will only trickle-charge a workstation laptop under load, which users read as “the panel is not charging”. Check both figures on the spec sheet rather than assuming.

Cable choice is just as important. A charge-only USB-C cable from a phone box will carry power and nothing else, and the user will conclude the panel is broken. Use a cable explicitly rated for video and full power, and keep a labelled spare in the room.

4. The OPS slot: what it physically is

The wide rectangular opening on the back or side of most business panels is the OPS slot. OPS stands for Open Pluggable Specification, an industry standard for the size, shape and connector of a slide-in computer module. The slot is essentially an internal bay with a single 80-pin connector that carries video, audio, USB, power and control between a module and the panel.

Practically, that means you can slide a complete small computer into the panel with no external cables at all. It draws power from the panel, sends its picture over the internal connector, and receives touch back the same way. Nothing hangs off the wall, nothing gets unplugged by a cleaner, and swapping the module later takes two screws and a minute.

• Standard size — because OPS is a specification, a module from one manufacturer generally fits another manufacturer's slot, though it is still worth confirming compatibility before ordering.
• No external cabling — the internal connector replaces HDMI, USB touch and a power lead.
• Serviceable — the module pulls out for repair or upgrade without taking the panel off the wall.
• Optional — an empty slot costs nothing to leave empty. Panels run their built-in system perfectly well without a module.

5. Cabling mistakes that cause most support calls

• Forgetting the touch cable — picture works, touch does nothing. Almost always a missing or wrongly paired USB touch lead.
• Wrong HDMI and USB pairing — the touch USB socket is tied to a specific HDMI input. Plug into HDMI 2 and the USB for HDMI 1 and touch will not follow.
• Long passive HDMI runs — intermittent dropouts that only appear once the room is in use and warm.
• Charge-only USB-C cables — no picture at all, blamed on the panel.
• Cables under tension — a lead pulled tight across a table works loose over months. Leave slack and use a floor box or cable tidy.
• No labelling — unlabelled leads on a table get swapped, coiled and lost. Label both ends.
• Relying on Wi-Fi for a fixed panel — run Ethernet during installation while the walls are open.

6. Planning the ports before you buy

Count the sources the room will realistically have. A huddle room usually needs one USB-C lead and one spare HDMI. A boardroom might need USB-C at each end of the table, an HDMI for guests, a room PC and a control system connection. A lecture hall often needs HDMI out to a repeater screen at the back. Once you know the count, check the panel's port list against it rather than assuming a generous spec.

Also decide where the compute lives. Built-in Android is enough for whiteboarding and casting. A slide-in module suits rooms that need a full desktop environment every day. If you are still sizing the room itself, our 65-inch displays and 86-inch displays pages show the port sets typical at each size.

Quick reference: ports at a glance

• HDMI carries picture and sound only, never touch.
• Touch needs a USB cable paired with the matching HDMI input.
• USB-C can do video, touch and charging over one lead if the port supports DisplayPort Alt Mode.
• Check the panel's USB-C power delivery wattage against the laptops in use.
• Passive HDMI becomes unreliable at 4K past roughly five metres; use active or fibre.
• The OPS slot is a standard bay for a slide-in computer module with no external cables.
• Run wired Ethernet to any panel that will stay on a wall for years.

Frequently asked questions

Why does my picture show but touch not work?

The touch cable is missing or plugged into the wrong socket. Touch travels back to the computer over a separate USB lead, and on most panels each USB touch port is tied to one specific HDMI input. Check the small labels beside the sockets and match the pairing exactly.

Can I use any USB-C cable with an interactive panel?

No. Many USB-C cables carry power and low-speed data only. For a single-cable setup you need a cable rated for video output and for the panel's power delivery wattage. It is worth buying these deliberately and keeping a labelled spare in each room.

Do I need an OPS module, or is the built-in system enough?

The built-in system handles whiteboarding, casting, browsing and file playback without any module at all. Add a slide-in module when the room genuinely needs a full desktop operating system daily, for example for specialist software or domain login.

How long can an HDMI cable be before quality suffers?

At 4K, plan for around five metres with a good passive cable. Beyond that, use an active or fibre optic HDMI cable rated for 4K at 60Hz, or relocate the source closer to the panel. Symptoms of an overlong run are intermittent, which makes them frustrating to diagnose later.

Getting the connectivity right from day one
